Summary of Contents for Nexo MSUB18

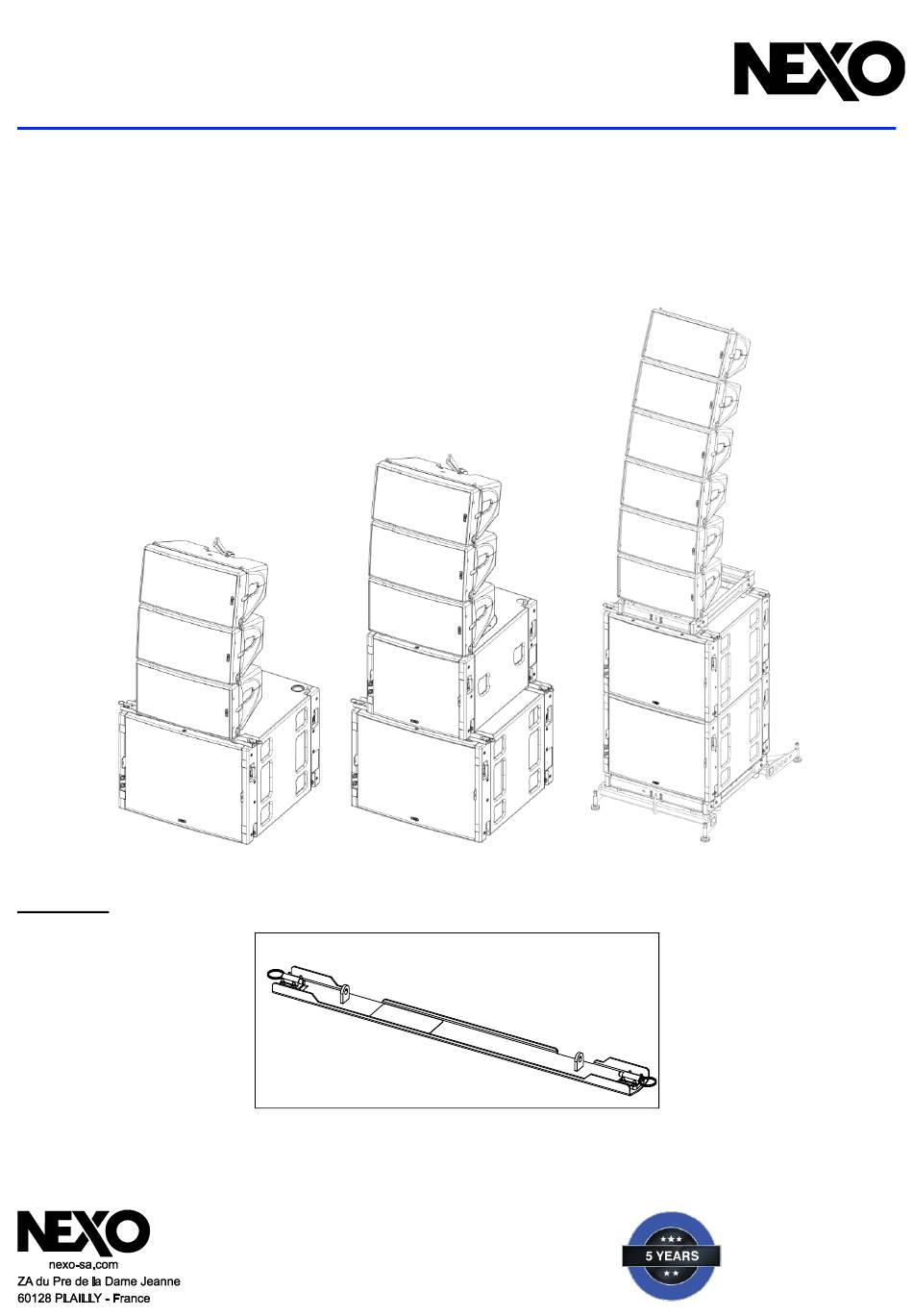

- Page 1 VNT-LSTKM1018 DP3386/Rev02 - DI Stacking Adapter MSUB18 – GEOM10/MSUB15 Contents: Weight: 1.5 kg / 3.3 lb - Read t his docum ent before using. - Keep t his docum ent . - Observe all warnings and caut ions. PAGE 1 OF 4...
- Page 2 With GEOM10 (3x GEOM10 max) Place MNSTKM10 on LSTKM1018. Set the rear in the slot and push the assembly forward. Unlock the side rig of MSUB18 and lock with the latches of Place GEOM10 and adjust the angle with the LinkBar. LSTKM1018.
- Page 3 • With MSUB15 • Place 2x LSTKM1018 on MSUB18. • LSTKM1018: OUTWARDS for MSUB15 Stacking. • Unlock the side Rig and lock with the latches of LSTKM1018. • Place the MSUB15. • Lock MSUB15 on LSTKM1018 with the latches of MSUB15.
- Page 4 • Lock with the quick release pins. • NEXO cannot accept responsibility for accidents caused by any factor other than defects in this product itself. • Please check the web site nexo-sa.com for the latest update. - Read t his docum ent before using.
