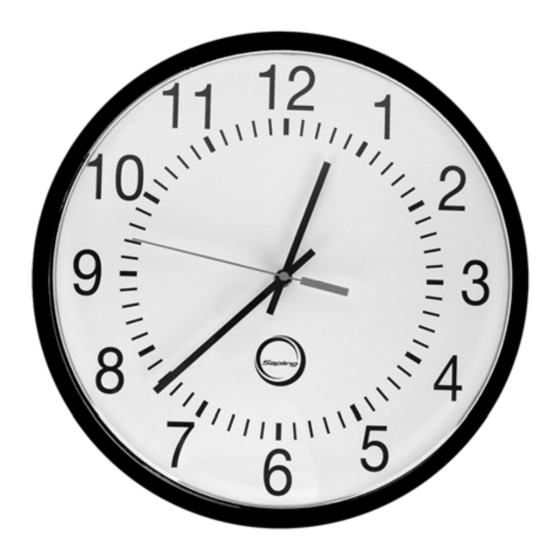

SAL-2 Series Wireless Clock Installation Manual
MOUNTING
Wall Mount Installation...........................................................................
Double Mount Installation........................................................................
WIRING INFORMATION
Wiring Information.................................................................................
OPERATION
Operational Instructions...........................................................................
FREQUENTLY ASKED QUESTIONS
SAL Frequently Asked Questions...............................................................
TROUBLESHOOTING
SAL Troubleshooting..............................................................................
DIAGNOSTIC TESTING
Diagnostic Tests Procedures..................................................................... Pages 11 - 13
FCC INFORMATION
FCC Information...................................................................................
Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com
Table of Contents
(V1)
Pages 5 - 8
Page 2
Page 3
Page 4
Page 9
Page 10
Page 14
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sapling SAL-2 Series
Summary of Contents for Sapling SAL-2 Series
- Page 1 Page 9 TROUBLESHOOTING SAL Troubleshooting…………………………………………………………………… Page 10 DIAGNOSTIC TESTING Diagnostic Tests Procedures…………………………………………………………… Pages 11 - 13 FCC INFORMATION FCC Information……………………………………………………………………….. Page 14 Page 1 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 2 6. Put the screw (4mm) through the hole on the top of the clock into the hole at the top of the mounting bracket. Page 2 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 3 6. Plug the connectors into the movements (110V or 24V ONLY). 7. Place the clocks on the double mount housing and tighten the screws to secure clocks as shown above. Page 3 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 4 Diagnostic LED Transmit/Receive The Sapling SAL-2 Series clock can be powered by 2 “D” cell batteries, 24 volts AC, or 110 volts AC. Page 4 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 5 (5) minutes. Normal Mode/Economy Mode The SAL-2 Series clocks have two different modes in which they will operate. Normal mode allows the clock to transmit/receive every two (2) hours. This mode will allow the clock to have a 5 year battery life (provided good reception).
- Page 6 (20) second location until the signal is received, and then the clock will resume normal operation. Page 6 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 7 2. After the clock has received signal from the transceiver and adjusted to the main transceiver time, place the battery cover on. 3. Take each clock, while running, to its designated area and install the clock. Page 7 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 8 If the transmitter reaches the repeaters or clocks in the other building(s), the clocks will correct off of the repeater’s transmission of the signal. Option 4b There is a transmitter in each building. Page 8 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 9 Can the clocks be set manually to display the correct time at installation (as a temporary measure until the master clock is installed)? SAL clocks can NOT be set manually. Page 9 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 10 What can I do if I have a clock in a location where the distance is too far away from the last clock? Install a repeater to give additional distance to the clock system. Page 10 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 11 “ “ “ between ten and eleven hours ago “ “ “ more than eleven hours ago Page 11 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 12 Repeat test. 3,4,5 Clock detected problem with hour/minute hand. Check to see if they are hitting each other. Repeat test. Call technical support Page 12 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 13 If the second hand lands on 10, the battery level is 3V. • If the second hand lands on 11, the battery level is more than 3V. Page 13 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
- Page 14 FCC Rules Note: For precautionary measures, FCC recommends a distance of 10cm from the clock to constant human physical exposure. Page 14 Sapling, Inc. 1633 Republic Road Huntingdon Valley, PA 19006 Phone: (215) 322-6063 Fax: (215) 322-8498 www.Sapling-Inc.com...
