Installation Manual V3.4

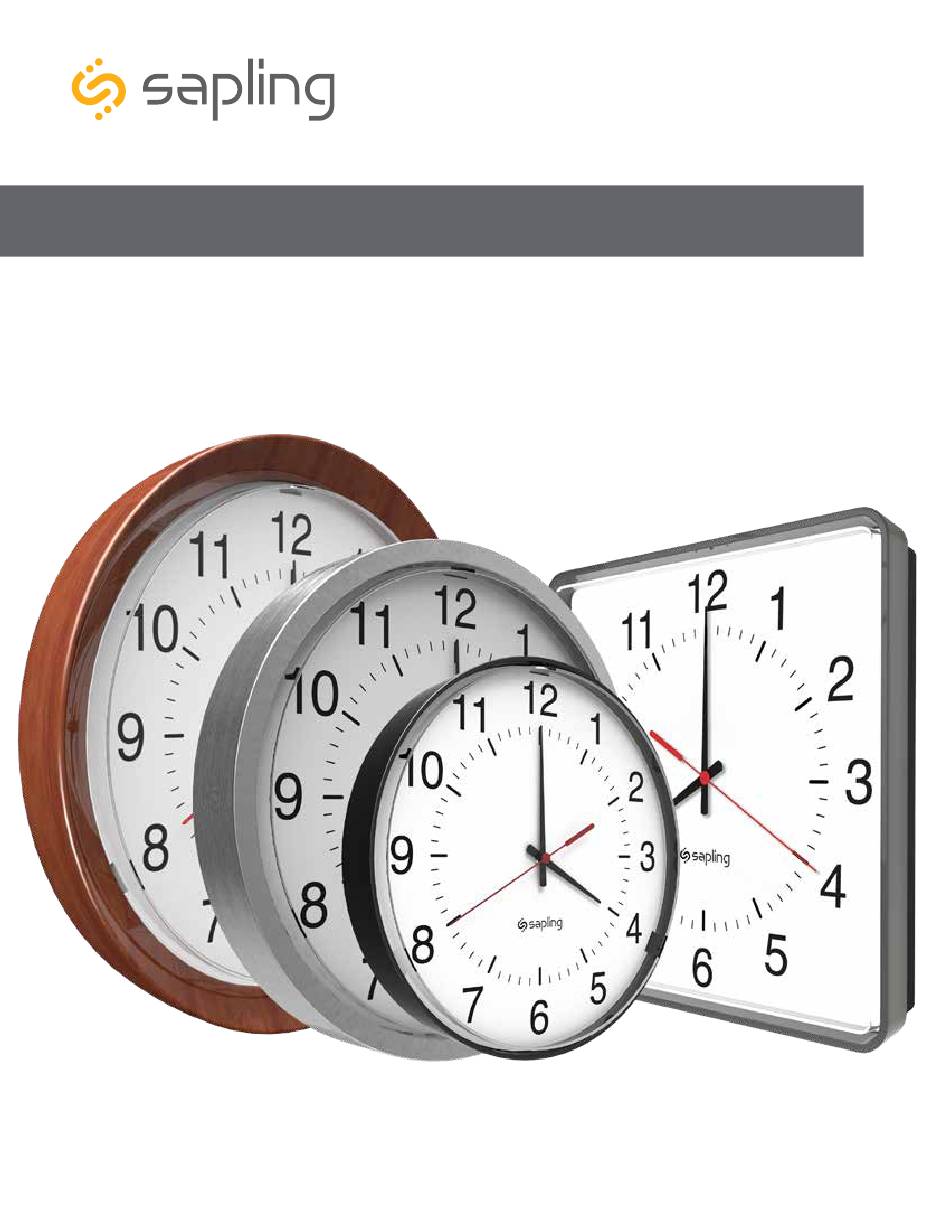

SAW Series Wi-Fi Clock
The Sapling Company, Inc.
P. (+1) 215.322.6063
670 Louis Drive
F. (+1) 215.322.8498
Warminster, PA 18974
www.sapling-inc.com
USA

Advertisement

Table of Contents

Troubleshooting

loading
Need help?

Need help?

Do you have a question about the SAW Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sapling SAW Series

Summary of Contents for Sapling SAW Series

  • Page 1 Installation Manual V3.4 SAW Series Wi-Fi Clock The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com...

  • Page 2: Table Of Contents

    Warminster, PA 18974 www.sapling-inc.com SAW Series Wi-Fi Clocks - Table of Contents Interactive Hyperlinked PDF – Click on the topic and the document will go to the relevant page. Clicking on the logo will take you back to the table of contents.

  • Page 3: Important Safety Instructions

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Important Safety Instructions VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.

  • Page 4: Identify Your Clock

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Identify Your Clock A label containing the part number of your clock is attached to the clock movement. If your part number begins with SAW-4, it is a SlimLine ABS or SQUARE clock...

  • Page 5: Preparing To Install - System/Network Requirements

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Preparing to Install - System/Network Requirements To be able to set up an IP-based synchronized clock network, you will need the following items: •...

  • Page 6: Synchronization System Setup

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Synchronization System Setup Positioning the Wireless Router or Wireless Access Point (WAP): The main router or WAP should be installed in a central location. Depending on the transmission protocol...
  • Page 7 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Synchronization System Setup (ctd.) 5. In the Network field, enter the SSID of your preferred Wi-Fi network. This is the name that appears if you try to connect to that Wi-Fi network on any other computer, tablet, or smart phone.

  • Page 8: Configure Multiple Clocks With Wifidirectloader

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Configuring multiple clocks with wifiDirectLoader wifiDirectLoader.exe is a piece of software that lets a user rapidly duplicate existing clock settings to other clocks of the same type (analog or digital). This is useful for large clock systems, where a user may not have the time to configure many clocks individually.
  • Page 9 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Configuring multiple clocks with wifiDirectLoader Before Applying the configuration file: The fastest way to perform this process is to collect all of the Wi-Fi clocks in a single room and run this program.
  • Page 10 Open the file on the CD and select the file ending in extension “.exe” c. Copy the file to your Network Monitor folder. 3. If you downloaded the Network Monitor from our website: https://sapling-inc.com/software/ a. Locate the Network Monitor file in your computer’s Downloads folder.

  • Page 11: Before Installation

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Before Installation - DHCP The SAW clock can be set to DHCP or Static IP address. The clock is shipped in DHCP mode as default. This means that once the clock is connected to the network it is assigned the next available IP address by a DHCP server.
  • Page 12 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Before Installation - Static IP The SAW clock can be set to DHCP or Static IP address. The clock is shipped in DHCP mode as default. This means that once the clock is connected to the network it is assigned the next available IP address by a DHCP server.
  • Page 13 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Before Installation - Clock Setup - GMT/UTC Offset 1) Double click on the serial number for the clock being installed. This should take you to the web interface for that clock.

  • Page 14: Network Servers

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Before Installation - Clock Setup - Network Servers 3) Time Input – From Third-Party NTP Time Servers: The clock comes pre-programed with third-party NTP Time Servers (user changeable) accessible via the facility network and internet.
  • Page 15 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Before Installation - Clock Setup - Network Servers Time Input – From an In-House NTP Time Server or from a Master Clock If the facility has their own in-house NTP Time Server or a master clock capable of providing time data to the Wi-Fi clocks, the clocks should be programmed accordingly.
  • Page 16 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Before Installation - Clock Setup - Network Servers Time Input – From two In-House NTP Time Servers or from two Master Clocks • Set the in-house NTP Time Servers or master clocks (capable of providing time data to the IP clocks) with a static IP address.

  • Page 17: Preparing For The Installation

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Preparing for the Installation Consideration should be made for various factors such as their location, type of mounting (surface, dual-faced or flag mounted), electrical wiring run, and more. Please read the manual including all relevant sections for your specific installation configuration to understand the steps, how to wire, and how to install the clock.
  • Page 18 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round SlimLine Clock - Battery Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 19 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round SlimLine Clock - Battery Powered 1) Place the mounting piece on the wall. Leave at 2) Use a pencil to mark the positions of the top two...
  • Page 20 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round SlimLine Clock - Battery Powered 5) First remove the gearbox pin, then insert the 6) Place the cover back onto the battery pack. You batteries into the clock.

  • Page 21: Locally Powered

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round SlimLine Clock - Locally Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 22 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round SlimLine Clock - Locally Powered 1) If you are installing a new gang box in the wall, 2) Run power wiring to the gang box.
  • Page 23 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round SlimLine Clock - Locally Powered 5A) If you do not wish to attach the mounting piece 5B) Use a pencil to mark the positions of the top...
  • Page 24 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round SlimLine Clock - Locally Powered 7) First remove the gearbox pin, then attach the 8) Lay any excess wiring across the strain relief base, power connector to the port on the movement.

  • Page 25: Round Aluminum/Wood Clock - Battery Powered

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round Aluminum or Wood Clock - Battery Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 26 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round Aluminum or Wood Clock - Battery Powered 1) Place the flat side of the mounting piece on the 2) Use a pencil to mark the positions of the two wall.
  • Page 27 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round Aluminum or Wood Clock - Battery Powered 6) First remove the gearbox pin, then insert the 5) Remove the back cover from the battery pack by pulling the two latches away to either side and batteries into the clock.
  • Page 28 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round Aluminum or Wood Clock - Battery Powered 9) Use the pencil to mark the location of the hole 10) Reattach the mounting piece and clock.
  • Page 29 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round Aluminum or Wood Clock - Locally Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 30 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round Aluminum or Wood Clock - Locally Powered 1) If you are installing a new gang box in the wall, 2) Run power wiring to the gang box.
  • Page 31 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round Aluminum or Wood Clock - Locally Powered 5) If you do not wish to attach the mounting piece 6A) If you do not wish to attach the mounting piece to the gang box, proceed to step 6A.
  • Page 32 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round Aluminum or Wood Clock - Locally Powered 8) Temporarily attach the clock to the mounting 7) Place the mounting piece on the wall above the...
  • Page 33 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Round Aluminum or Wood Clock - Locally Powered 11) Attach the clock to the mounting piece by 12) Place one of the self-tapping screws through sliding the clock back onto it.

  • Page 34: Mounting Piece

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Square Clock - Battery Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 35 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Square Clock - Battery Powered 2) Release the mounting piece from the back of 1) Detach the housing from the back of the clock.
  • Page 36 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Square Clock - Battery Powered 5) Insert the wall anchors into the holes, then place 6) Remove the back cover from the battery pack...
  • Page 37 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Square Clock - Battery Powered 9) Slide the clock housing onto the mounting piece. 10) If you wish to prevent the clock from sliding...

  • Page 38: Locally Powered

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Square Clock - Locally Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 39 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Square Clock - Locally Powered 1) If you are installing a new gang box in the wall, 2) Run power wiring to the gang box.
  • Page 40 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Square Clock - Locally Powered 5) Thread the power wires from your kit through 6) Attach the mounting piece to the gang box using...
  • Page 41 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Wall Mount Installation - Square Clock - Locally Powered 9) First remove the gearbox pin, then attach the 10) Loosen the strain relief by unscrewing the two power connector to the port on the movement.

  • Page 42: Flag Mount Installation - Round Slimline/Aluminum Clock - Battery Powered

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.

  • Page 43: Release Lever

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered Included in Mounting Kit (A-SLM-MK-S-1) or (A-SLM-MK-AW) Description Quantity Picture Mounting Piece (not used)
  • Page 44 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Battery powered 1) Detach the mounting plate from the mounting 2) Place the mounting plate on the wall or ceiling.
  • Page 45 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Battery powered 5) Insert the #8 screws through the mounting plate and into the anchors.
  • Page 46 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered 6) Remove one of the included adapters. Unscrew the four screws that connect the adapter to the pole, and the eight screws that hold the two adapters to each other.
  • Page 47 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered 7) Remove the pole endcap and plastic ring from the exposed pole side. Place the flag mount endcap on the end of the pole so that it coveres the exposed large rectangular hole.
  • Page 48 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered 9) Remove the back covers from the battery pack by pulling the two latches away to either side and sliding the cover out.
  • Page 49 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered 12) Slide the clock onto the adapter in the rotation that you wish it to be viewed. You should hear a snapping noise as the four clips on the adapter secure the clock in place.
  • Page 50 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.

  • Page 51: Power/Grounding Wires

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered Description Quantity Picture Included in Gang Box Kit (A-GB-MK-1) #6-32x1 screw (not used)
  • Page 52 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered 1) Install the double gang box in the wall or ceiling. 2) Run power wiring to the gang box.
  • Page 53 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered 5) Remove the mounting plate and drill the four 6) Reattach the mounting plate, this time using all holes that were just traced.
  • Page 54 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered 8) Remove one of the included adapters. Unscrew the four screws that connect the adapter to the pole, and the eight screws that hold the two adapters to each other.
  • Page 55 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered 9) Thread at least fifteen inches (38.1cm) of wiring 10) Remove the pole endcap and plastic ring from the gang box through the bottom of the pole from the exposed pole side.
  • Page 56 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered 12) Attach the power wires from your kit to the 13) First remove the gearbox pin, then attach a wires you threaded through the pole.
  • Page 57 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered 15) Slide the clock onto the adapter in the rotation 16) If you feel the need to detach the clock from the that you wish it to be viewed.
  • Page 58 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Battery Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 59 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Battery Powered Included in Wiring Kit (A-WK-MTG-1) Description Quantity Picture #10x1.5 Self-tapping screw Wall anchor Included in Gang Box Kit (A-GB-MK-1)
  • Page 60 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Battery Powered 1) Detach the mounting plate from the mounting 2) Place the mounting plate on the wall or ceiling.
  • Page 61 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Battery Powered 5) Insert the #8 screws through the mounting plate 5b) If you are installing the clock atop an gang box, and into the anchors.
  • Page 62 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Battery Powered 8) Attach the clock housing to the pole using four black #8-32x7/16 screws and four internal-tooth washers.
  • Page 63 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Battery Powered 11) Remove the gearbox pin, then insert the 10) Remove the back covers from the battery pack by pulling the two latches away to either side and batteries into the clock.
  • Page 64 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Battery Powered 13) Rotate the clock so that it is right-side up. Slide 14) If you feel the need to detach the clock the clock back into its housing.
  • Page 65 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Locally Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 66 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Locally Powered Included in Package Description Quantity Picture Power/grounding wires And connector (not used) #8x1.5 Self-tapping screw...
  • Page 67 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Locally Powered 1) Install the double gang box in the wall or ceiling. 2) Run power wiring to the gang box.
  • Page 68 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Locally Powered 5) Remove the mounting plate and drill the four 6) Reattach the mounting plate, this time using all holes that were just traced.
  • Page 69 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Locally Powered 9) Release the mounting piece from the back of 10) Attach the clock housing to the pole using...
  • Page 70 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Locally Powered 12) Attach the base of the pole to the mounting plate, so that the lip is on the top of the base, and the holes for the screws are on the bottom of the base.
  • Page 71 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Flag Mount Installation - Square Clock - Locally Powered 14) First remove the gearbox pin, then attach 15) Loosen the strain relief by unscrewing the two the power connector to the port on the movement.

  • Page 72: Double Mount Installation - Round Slimline/Aluminum Clock - Battery Powered

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 73 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered Included in Mounting Kits (A-SLM-MK-S-1) or (A-SLM-MK-AW) Description Quantity Picture Mounting Piece (not used)
  • Page 74 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered 1) Detach the mounting plate from the mounting 2) Place the mounting plate on the wall or ceiling.
  • Page 75 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered 5) Insert the #8 screws through the mounting plate 5B) If you are installing the clock atop an gang box, and into the anchors.
  • Page 76 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered 7) Remove the back covers from the battery pack by pulling the two latches away to either side and sliding the cover out.
  • Page 77 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Battery Powered 10) Slide each clock onto the adapter in the rotation 11) If you feel the need to detach the clock from the that you wish it to be viewed.
  • Page 78 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 79 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered Included in Mounting Kits (A-SLM-MK-S-1) or (A-SLM-MK-AW) Description Quantity Picture Mounting Piece (not used)
  • Page 80 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered 1) Install the double gang box in the wall or ceiling. 2) Run power wiring to the gang box.
  • Page 81 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered 5) Remove the mounting plate and drill the four 6) Reattach the mounting plate, this time using all holes that were just traced.
  • Page 82 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered 9) Attach the base of the pole to the mounting plate so that the lip is on the top of the base, and the holes for the screws are on the bottom of the base.
  • Page 83 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Round SlimLine/Aluminum Clock - Locally Powered 11) First remove the gearbox pins, then attach a 12) Lay any excess wiring across the strain relief...
  • Page 84 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Battery Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.

  • Page 85: Double Mount Installation - Square Clock - Battery Powered

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Battery Powered Included in Wiring Kit (A-WK-MTG-1) Description Quantity Picture #10x1.5 Self-tapping screw Wall anchor Included in Gang Box Kit (A-GB-MK-1)
  • Page 86 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Battery Powered 1) Detach the mounting plate from the mounting 2) Place the mounting plate on the wall or ceiling.
  • Page 87 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Battery Powered 5) Insert the #8 screws through the mounting plate 5B) If you are installing the clock atop an gang box, and into the anchors.
  • Page 88 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Battery Powered 8) Release the mounting piece from the back of 9) Attach both housings to the pole using four black...
  • Page 89 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Battery Powered 11) Attach the base of the pole to the mounting plate, so that the lip is on the top of the base, and the holes for the screws are on the bottom of the base.
  • Page 90 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Battery Powered 14) Place the cover back onto the battery pack. You 15) Slide both clocks back into their housings. You should hear a snapping noise as the latches engage.

  • Page 91: Included In Package

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Locally Powered VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.

  • Page 92: Louis Drive

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Locally Powered Included in Wiring Kit (A-WK-12-1V) Description Quantity Picture Power/grounding wires And connector #8x1.5 Self-tapping screw...
  • Page 93 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Locally Powered 2) Run power wiring to the gang box. 1) Install the double gang box in the wall or ceiling.
  • Page 94 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Locally Powered 5) Remove the mounting plate and drill the four 6) Reattach the mounting plate, this time using all holes that were just traced.
  • Page 95 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Locally Powered 9) Release the mounting piece from the back of 10) Attach both housings to the pole using four...
  • Page 96 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Locally Powered 13) Attach the base of the pole to the mounting plate, so that the lip is on the top of the base, and the holes for the screws are on the bottom of the base.
  • Page 97 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Double Mount Installation - Square Clock - Locally Powered 15) First remove the gearbox pins, then attach a 16) Loosen the strain relief by unscrewing the two power connector to the ports on the side of screws.

  • Page 98: Connecting To The Clock

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Connecting to the Clock Access to the clock can be controlled through the WIFI SW MECH SW WIFI SW button. Pressing the button a given number of times will perform the following actions.

  • Page 99: Network Monitor Software - Main Screen

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Main Screen YOUR COPY OF THE NETWORK MONITOR MAY HAVE ADDITIONAL COLORS OR BRANDING. THE MONITOR SHOWN IN THIS MANUAL CONTAINS NO BRANDING OR COLORS.
  • Page 100 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Main Screen 1. Send Message to Digital Clocks -Allows the user to generate a message that will be sent to digital clocks.
  • Page 101 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Main Screen (ctd.) 1. Download Configuration to Clocks - If a configuration file was created using “Upload and Save Configuration”...

  • Page 102: Task Bar Options

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Task Bar Options 1. Send - When clicked, this button will display the following options: Send Message - Performs the same action as the Send Message to Digital Clocks button. Applies only to Digital Clocks.

  • Page 103: Configure Groups

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Task Bar Options 2. Groups - When clicked, this button will open the Groups drop-down menu. All - Clicking on this option will cause the monitor to display all compatible IP devices on the network.
  • Page 104 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Task Bar Options 3. Filters - When clicked, this button will display the following options: Filter By Clock Type - By selecting this option, the user is able to view specific clock types on the Monitor Screen.
  • Page 105 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Task Bar Options 4. Email Alerts - When clicked, this button will display the following options: Enable Missing Clock Email Alerts - By selecting this option, the user will receive an email alert if the Network Monitor Software hasn’t heard from a listed clock or other network device after a certain...
  • Page 106 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Task Bar Options 5. Databases - When clicked, this button will display the following options: Download Configuration - By selecting this option, the user can load a clock’s setting from a PC to another clock of the same type.
  • Page 107 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Quick Access Menu Please note: These options can also be accessed by using the keyboard shortcuts noted in the Quick Access Menu Using a right-handed mouse to right-click on any row in the Device List will open the Quick Access Menu.
  • Page 108 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Quick Access Menu Please note: These options can also be accessed by using the keyboard shortcuts noted in the Quick Access Menu Using a right-handed mouse to right-click on any row in the Device List will open the Quick Access Menu.
  • Page 109 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Network Monitor Software - Error messages 1. Characters are Red - When the characters of a clock have turned red, then the clock has not sent its status within the last 10 minutes.

  • Page 110: Web Interface - Log In

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Web Interface - Log In 1. Password - Location where the password is entered. The default password is 6063, but this can be changed within the settings.

  • Page 111: Web Interface - Network Settings

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Web Interface - Network Settings 1. Clock Name - This field allows the user to set a name used to identify the clock on the Network Monitor. This name is also used to identify the clock in a network list while the clock is in Direct-Connect mode.

  • Page 112: Web Interface

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Web Interface - Network Settings (ctd.) 9. Subnet Mask - This field allows the user to set the subnet mask for their clock. If DHCP Auto On is enabled, this address will be assigned by the DHCP server.

  • Page 113: Enterprise Encryption Settings

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Web Interface - Enterprise Encryption Settings THIS SECTION IS REQUIRED ONLY IF YOUR NETWORK USES WPA2-ENTERPRISE ENCRYPTION WPA2-PSK NETWORKS DO NOT REQUIRE USE OF THESE SETTINGS. IF YOUR WI- FI NETWORK PROMPTS YOU FOR A PASSWORD BUT NO USER NAME WHEN CONNECTING, YOU ARE LIKELY USING A WPA2-PSK NETWORK.

  • Page 114: Time Settings

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Web Interface - General Settings 1. Time Settings - Takes the user to the Time Settings page. 2. Daylight Saving Time - Takes the user to the Daylight Saving Time page.
  • Page 115 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Web Interface - Time Settings 1. Set Time - This setting allows the user to set the clock to a specific time. Fields for each portion of the time may be accessed via the drop-down menu.
  • Page 116 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Web Interface - Daylight Saving Time 1. Method for Defining DST - There are four methods for defining Daylight Saving Time. The method can be selected from the drop-down menu.
  • Page 117 3. Network Sync Every - This user changeable configuration will allow the user to change how often the clock will send a request to an NTP server (or a Sapling Master Clock) for receiving its accurate time data. The default sync rate for hard-wired (24/110/230 volt) Wi-Fi clocks is set to once every 5 minutes. Battery operated analog Wi-Fi clocks default sync rate is set to 12 hours to conserve battery life.
  • Page 118 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Web Interface - Login Settings 1. Viewer/Technician/Administrator Password - Allows the Administrator to set up a new password to the web interface. 2. Confirm Password - The new password must also be entered here for a change to be made.

  • Page 119: Web Interface - Diagnostics

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Web Interface - Diagnostics 1. Software Version - Lists the software version for the main processing board of the clock. 2. Web Page Version - Lists the software version for the clock’s web interface and network card.

  • Page 120: Troubleshooting

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Web Interface - Troubleshooting 1. Check Hands - When clicked, this button causes the clock to test the position and accuracy of the hands as they travel around the clock.
  • Page 121 *PLEASE NOTE: If the buttons are grayed out, it means that there are either no updates available or no internet connection. 1. Update Web Pages From Sapling - Updates software on the clock’s network card and web interface by downloading the latest version from Sapling’s servers.

  • Page 122: Frequently Asked Questions

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Frequently Asked Questions VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 123 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Frequently Asked Questions (ctd.) How long does it take for a clock to receive correction data? On initial power up, the clock will open its receiver for one minute until the signal is acquired. If everything is installed and configured correctly, the clock should get NTP data and begin correcting itself within five seconds.

  • Page 124: Troubleshooting

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Troubleshooting VERY IMPORTANT: CONFIGURE YOUR CLOCK BEFORE MOUNTING IT TO A WALL OR HOUSING. REFER TO THE SYNCHRONIZATION SYSTEM SETUP SECTION OF THIS MANUAL FOR INSTRUCTIONS.
  • Page 125 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Troubleshooting I am uncertain if my clock is accessing my wireless network. How to I check this? Press and release the WIFI SW button once and observe the...
  • Page 126 The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Troubleshooting Why isn’t the Wi-Fi clock showing up on my Network Monitor? Perform these steps in order until a step causes the clock to appear on the Network Monitor: 1.

  • Page 127: Diagnostic #1 - Signal Information

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Diagnostic Test #1 - Signal Information The purpose of Diagnostic #1 is to determine how long it has been since the clock last received a synchronization signal.

  • Page 128: Diagnostic #2 - Signal Quality

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Diagnostic Test #2 - Signal Quality The purpose of Diagnostic #2 is to determine the quality of the Wi-Fi signal. Diagnostic #2 may be enabled by pressing the diagnostic button twice.

  • Page 129: Diagnostic #4 - Battery Voltage

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com Diagnostic Test #3 - Full Mechanical Test (ctd.) While performing Diagnostic #3, an observer may see the clock do the following actions: 1. The clock moves the second hand to 00 2.

  • Page 130: Warranty

    Sapling Limited Warranty and Disclaimer The Sapling Company, Inc. warrants only that at the time of delivery and for a period of 24 calendar months after delivery or the period stated in this invoice, if different, the Goods shall be free of defects in workmanship and materials, PROVIDED that this warranty shall not apply: To damage caused by Buyer’s or any third party’s act, default or misuse of the Goods or by failure to follow...

  • Page 131: Fcc Statement

    The Sapling Company, Inc. P. (+1) 215.322.6063 670 Louis Drive F. (+1) 215.322.8498 Warminster, PA 18974 www.sapling-inc.com FCC Statements The Federal Communications Commission (FCC) wants you to know: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.

This manual is also suitable for:

Saw-4bs-12s-4Saw-4bs-12r-4Saw-5as-09r-1Saw-6ds-12r-2

Table of Contents
