NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
When ordering components, specific color and/or size information may be required.
COMPONENTS
Contact a Mayline Customer Service Representative.
REF. #
QTY.
1
1
2
1
3
1
4
1
5
1
6
1
HARDWARE BAG (PART No. A6699)
REF. #
QTY.
E1
9
E2
8
E3
4
ASSEMBLY INSTRUCTIONS
TechWorks
DESCRIPTION
TILT SHELF
R.H. TILT SUPPORT
L.H. TILT SUPPORT
INNER R.H. SUPPORT
INNER L.H. SUPPORT
SHELF ANGLE
*for individual item, order that part number
DESCRIPTION
#10 X 3/4 SCREW
NYLON WASHER
KNOB
TM
Tilt Shelf
1-800-822-8037
PART No.
CALL~~**
A7132**
** Denotes Color Code
A7133**
~~Denotes Size
B6798**
B6797**
CALL~~**
PART No.
X11*
W78*
K26*

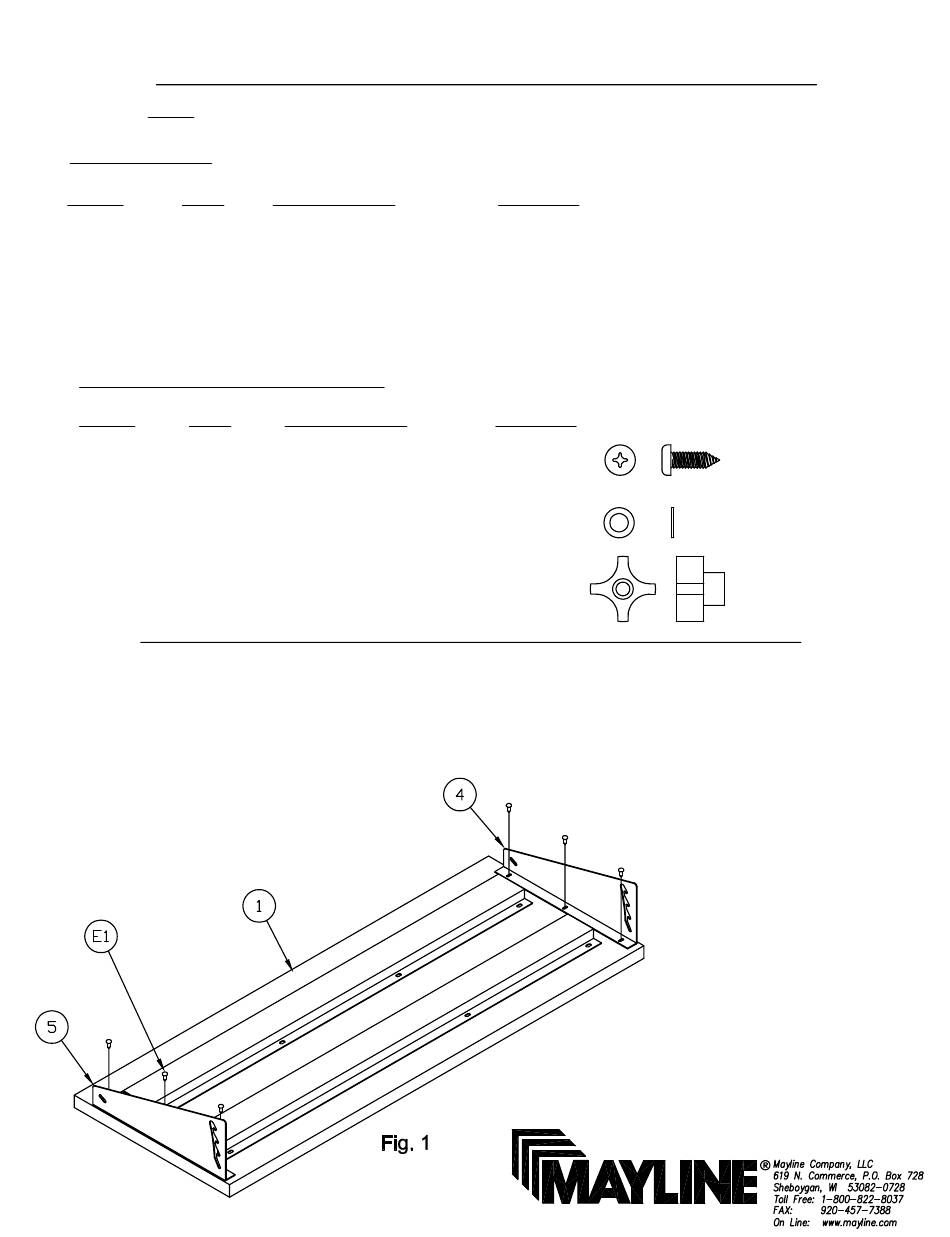

1. Place shelf upside down on
non-scratching surface.
2. Attach Shelf Inner Supports (4 and 5)
to top (1) as shown using Screws (E1). Do
not tighten Screws.
See Fig. 1.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mayline TechWorks Tilt Shelf
Summary of Contents for Mayline TechWorks Tilt Shelf
- Page 1 Tilt Shelf NOTE: Please count and inspect all pieces before disposing of any carton or packing materials. When ordering components, specific color and/or size information may be required. COMPONENTS Contact a Mayline Customer Service Representative. 1-800-822-8037 REF. # QTY. DESCRIPTION PART No.
- Page 2 3. Attach the Outer Shelf Supports (2 and 3) using the the Plastic Washers (E2) and the Knobs (E3) as shown. (Note: A washer must go one on each side of the Inner Shelf Support (4 and 5). See Fig. 2...
- Page 3 4. Hang Shelf Assembly from organizer frame and proceed to tighten Screws (E1). Note: You may need to remove the Knob in order to tighten the screws. See Fig. 3 Fig. 4 *Optional front safety lip Use remaining Screws (E1) to attach the Lip to the bottom, front edge of the Shelf (1).
- Page 4 Fig. 5 *Optional tilting (0° - 15° ) 1. Loosen (Do Not Remove) the four Knobs (E3). 2. Lift on the back of the shelf and push up on the front of the shelf. 3. Rest the shelf in one of the four notches: a.
