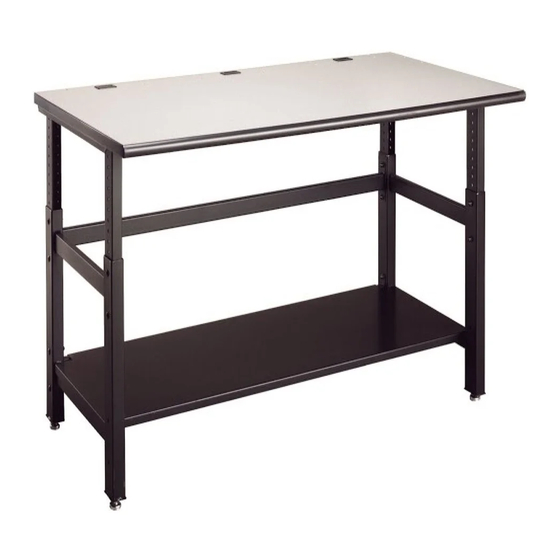

Mayline TechWorks Series Assembly Instructions

NOTE: Please count and inspect all pieces before disposing of any carton or packing materials.
When ordering components, specific color and/or size information may be required.
COMPONENTS:
Contact a Mayline Customer Service Representative.
REF. # QTY.
1 1
2 2
3 2
4 2
HARDWARE BAG (PART No. A7071)
REF. # QTY.
E1 16
E2 4
E3 12
E4 12
E5 12
E6 4

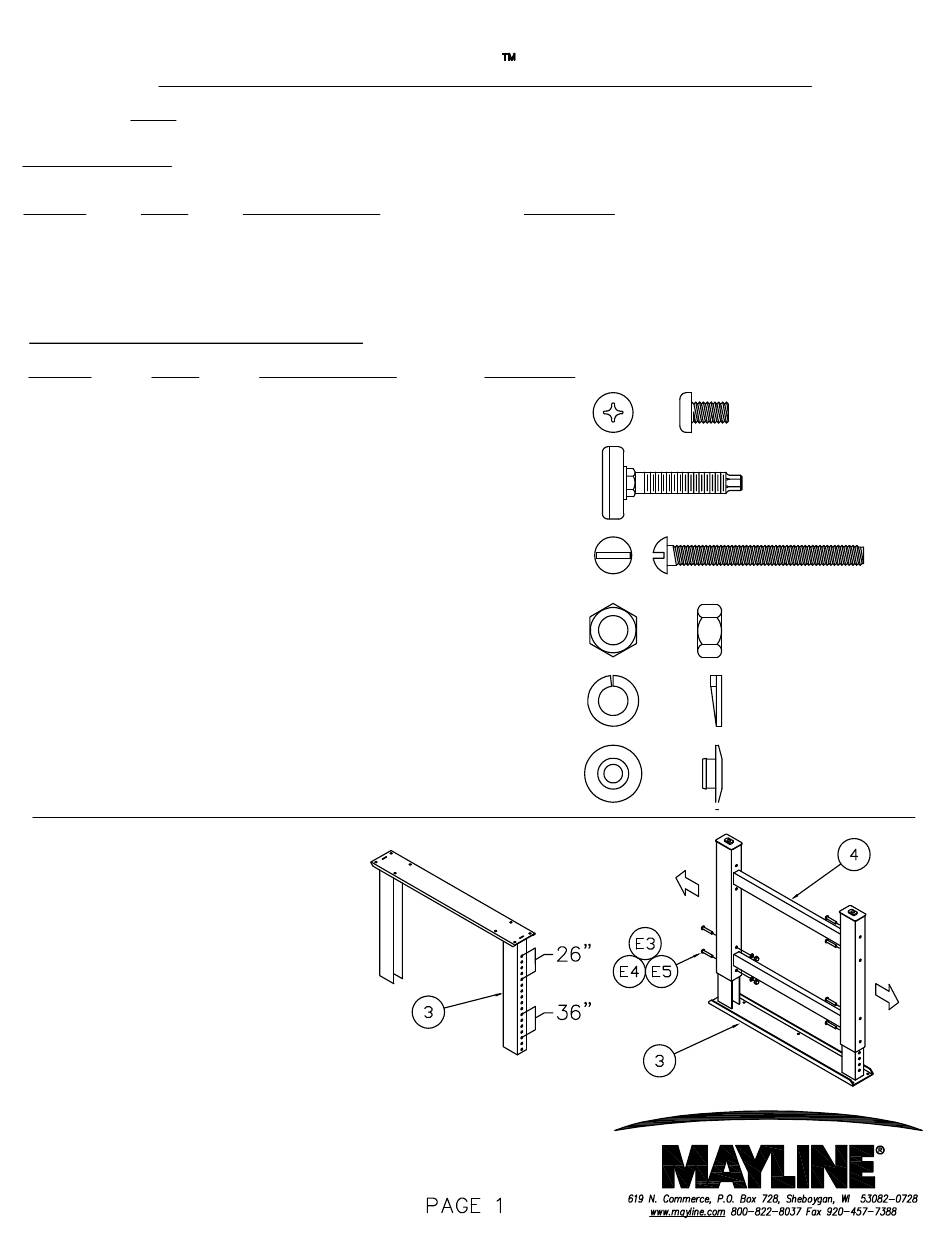

1. Select height for table using the
holes in the Upper Leg (3). See
Fig. 1
2. Insert Screws (E3) through
Lower Leg (4) and Upper Leg (3) at
the desired height (six places).
Secure using Lock Washer (E5)
and Hex Nut (E4) two places in
FRONT as shown. Screws only at
REAR. Do not tighten hardware at
this time.
3. Repeat steps 1 and 2 for the
other leg.
ASSEMBLY INSTRUCTIONS
TechWorks Tables
DESCRIPTION
TOP
SPREADER
UPPER LEG ASSEMBLY
LOWER LEG ASSEMBLY
*for individual item, order that part number
DESCRIPTION
1/4-20 X 1/2 SCREW
GLIDE
5/16-18 X 3 1/2 SCREW
5/16-18 HEX NUT
LOCK WASHER
HOLE PLUG
1-800-822-8037
PART No.
CALL~~**
CALL~~**
A7104**
A7603**
PART No.
X352*
Q588*
X241*
T130*
W77*
F639*
Fig. 1
** Denotes Color Code
~~Denotes Size
FRONT
Fig. 2
REAR
