Summary of Contents for Roberts R9928

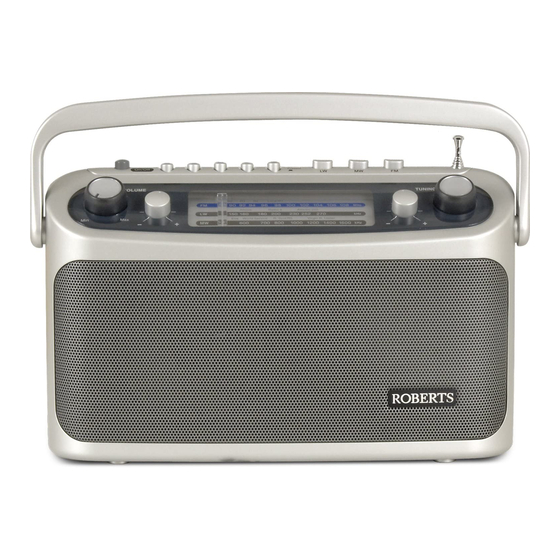

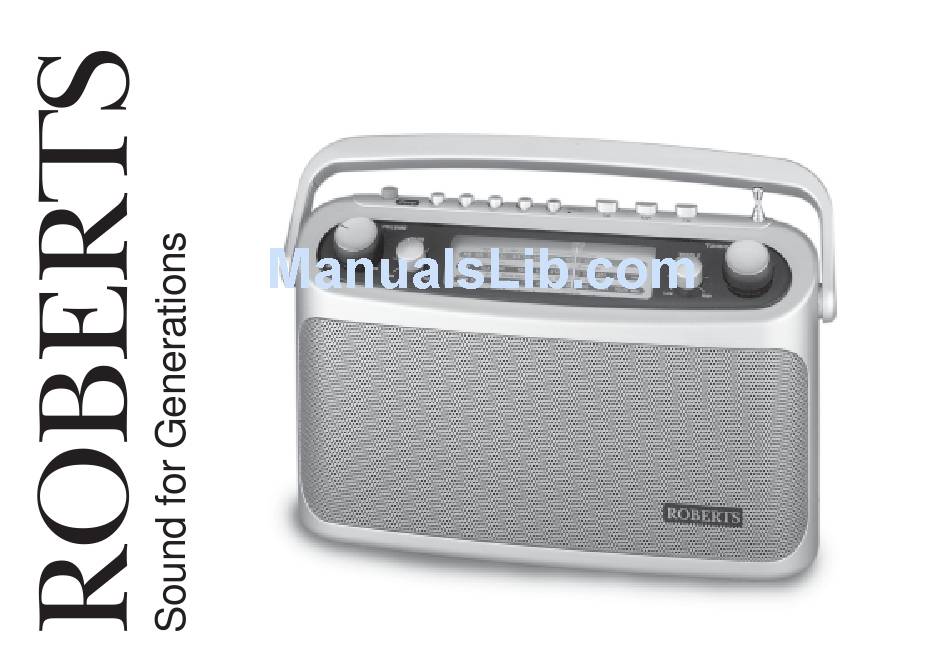

- Page 1 R9928 3 Band Preset Mains Battery Portable Radio Please read this manual before use...
-
Page 2: Table Of Contents
Contents Important Information ... 1 Controls ... 2-3 Battery Operation ... 4 Mains Operation ... 4 Operating your radio - FM manual tuning ... 5 Operating your radio - Medium and Long wave ... 6 Setting FM presets ... 7 Selecting FM preset stations ... -
Page 3: Controls
Controls (Top) 1. Power button 2. FM preset buttons 3. FM manual button 4. Waveband buttons 5. Telescopic aerial If you need any further advice, please call our Technical Helpline on :- 020 8758 0338 (Mon-Fri) 6. Tuning control 7. Treble control 8. -
Page 4: Controls
Controls (Rear) 11. Headphone socket (on side) 12. FM preset controls 13. Battery compartment 14. Mains socket... -
Page 5: Battery Operation
4. If the radio is not to be used for any extended period of time it is recommended that the batteries are removed from the radio. We would recommend for economy that the R9928 is used on the mains whenever possible with battery operation for occasional or stand-by use only. -
Page 6: Operating Your Radio - Fm Manual Tuning
Operating your radio (FM manual tuning) 1. Switch on your radio by pressing the Power button. 2. Select FM manual tuning by pressing the FM Manual button. 3. Press the FM button to select the FM waveband. 4. Adjust the Volume control until a hissing sound is heard. 5. -
Page 7: Operating Your Radio - Medium And Long Wave
Operating your radio (Medium and Long wave) 1. Switch on your radio by pressing the Power button. 2. Press either the MW or LW button. 3. Adjust the Volume control until a hissing sound is heard. 4. Rotate the Tuning control to select the desired station. On MW and LW the Tuning scale is marked in kilohertz (kHz). -
Page 8: Setting Fm Presets
Setting the FM Presets 1. Switch on your radio by pressing the Power button. 2. Press the FM button to select the FM waveband. 3. Adjust the Volume control until a hissing sound is heard. 4. Press FM preset button 1 5. -
Page 9: Selecting Fm Preset Stations
Selecting FM preset stations 1. Switch on your radio by pressing the Power button. 2. Press the FM button to select the FM waveband. 3. Press the required Preset button 1 to 4. 4. Adjust the Volume, Bass and Treble controls to the required settings. -
Page 10: General
The Company reserves the right to amend the specification without notice. Circuit Features Loudspeaker only Output Power Headphone socket Aerial System FM ROBERTS RADIO LIMITED PO BOX 130 MEXBOROUGH SOUTH YORKSHIRE S64 8YT 92mm 4ohms 1W into 4ohms 3.5mm dia... -
Page 11: Guarantee
In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio Technical Services department at the address shown on the rear of this manual before taking further action. - Page 12 ROBERTS RADIO TECHNICAL SERVICES DEPARTMENT 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline:- 020 8758 0338 (Mon-Fri) Issue 1...
