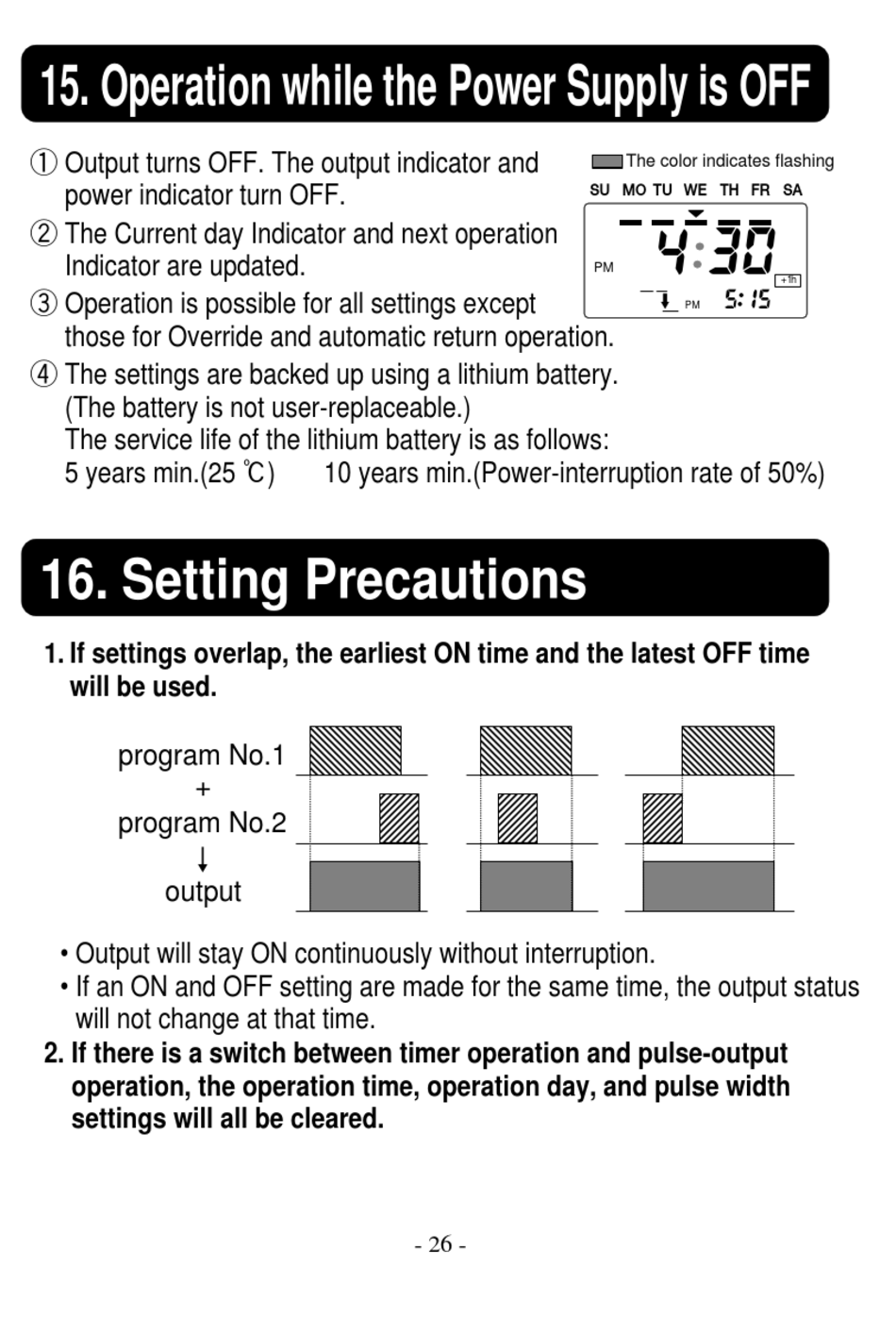

15. Operation while the Power Supply is OFF

① Output turns OFF. The output indicator and
power indicator turn OFF.
② The Current day Indicator and next operation
Indicator are updated.
③ Operation is possible for all settings except
those for Override and automatic return operation.
④ The settings are backed up using a lithium battery.
(The battery is not user-replaceable.)
The service life of the lithium battery is as follows:
5 years min.(25 ℃)

16. Setting Precautions

1. If settings overlap, the earliest ON time and the latest OFF time
will be used.
program No.1
program No.2
↓
output
• Output will stay ON continuously without interruption.
• If an ON and OFF setting are made for the same time, the output status
will not change at that time.
2. If there is a switch between timer operation and pulse-output
operation, the operation time, operation day, and pulse width
settings will all be cleared.
10 years min.(Power-interruption rate of 50%)
+
