WE-EF ETC330-GB LED Installation And Maintenance Instructions Manual
Inground luminaire
Hide thumbs
Also See for ETC330-GB LED:
- Installation and maintenance instructions manual (12 pages) ,
- Installation and maintenance instructions (5 pages) ,
- Installation and maintenance instructions (5 pages)
Advertisement
Quick Links
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Inground Luminaire
ETC330-GB LED
ETC340-GB LED
Advertisement
Related Manuals for WE-EF ETC330-GB LED
Summary of Contents for WE-EF ETC330-GB LED

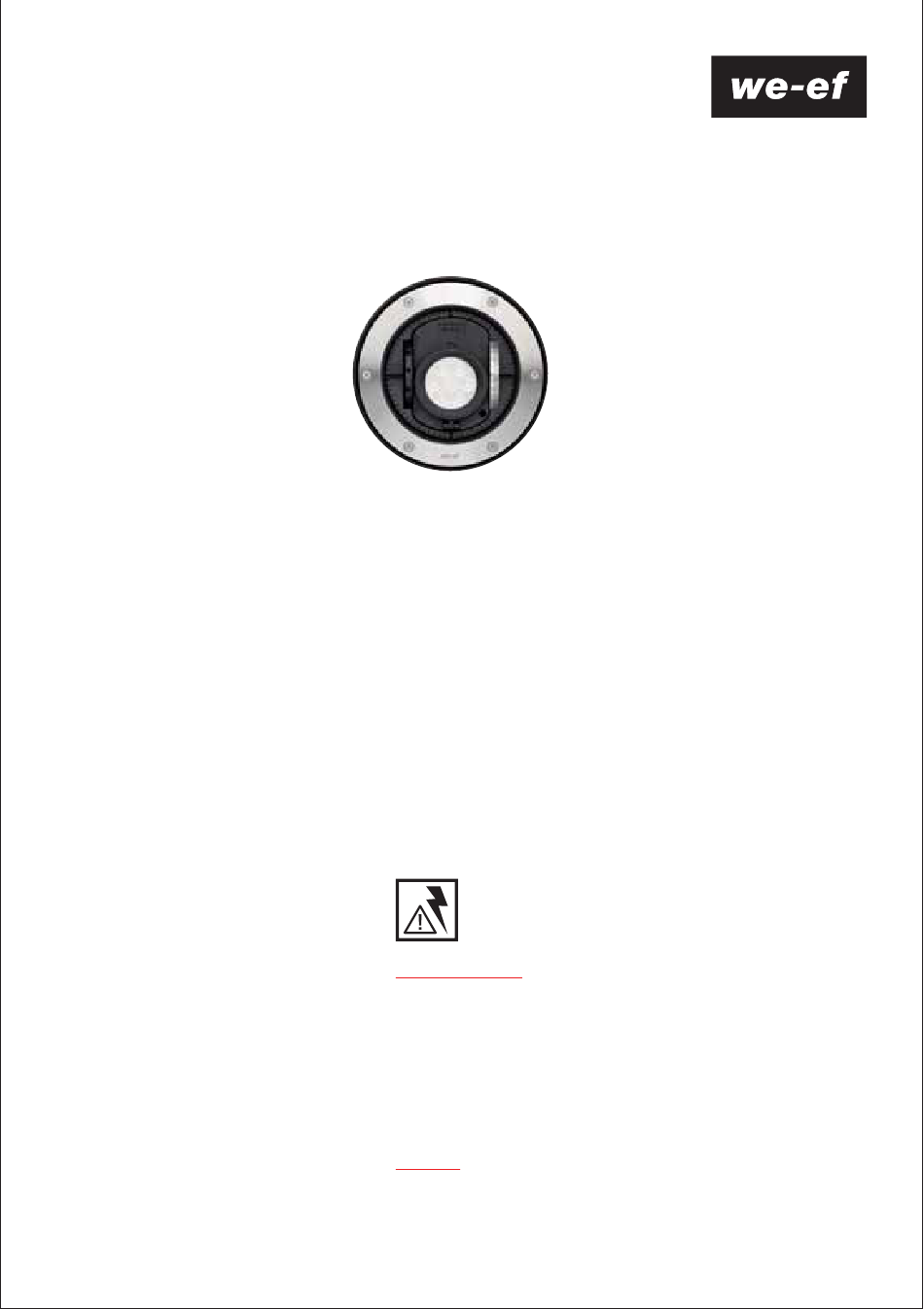

- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Inground Luminaire ETC330-GB LED ETC340-GB LED Surge Protection This product features built-in surge protection circuitry in compliance with applicable standards. For comprehensive protection of a luminaire installation against lightning and electrical surges, it is essential to cover mains supply and data input lines at the distribution board level, by using respective primary (Type 1) and secondary (Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
- Page 2 Inground Luminaire ETC330-GB ETC340-GB IP67, IK10+, Class I, ta = 40°C...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out Warning: Do not open luminaire while mains supply is switched on. -
Page 4: Installation Methods
Installation Installation Methods The product must be installed and maintained by a For proper installation, use the supplied installation blockout. building/construction and/or electrical regulations and relevant legislation. Ensure that proper drainage is provided for the shown installation methods: Warning: Switch off mains electrical supply prior to In landscape areas, soil with gravel base (Fig. - Page 5 Phase One Blockout Installation Procedure 1) Ensure a suitable recess. 2) Select appropriate installation blockout holes S for mains supply cable(s) O. 3) Set mounting ring B/M in position. 4) Do not remove screws X from mounting ring M. orientation FLUSH...
- Page 6 Phase Two Luminaire Installation, Electrical Connection, and Aiming Procedure 5) Switch off mains electrical supply. 6) Check that rating shown on luminaire label conforms with mains electrical supply. 03/17 IP67 ETC330-GB 220-240V/60/Hz, 1-10V 185-XXXX SOE XXXXXXX LED 4000K 12W item no. XXX (example) 7) Remove screws X from mounting ring M.
- Page 7 9) Remove cover P and lens/gasket Q by loosening 10) Set cables and sealable junction box J screws C. inside installation blockout B. 11) Place housing A into blockout/mounting 12.1) Insert screw driver into a slot on locking ring assembly B/M. Tighten screws X. wheel W.
- Page 8 13) Reinsert screw driver into slot on locking 14) Reposition lens/gasket assembly Q and wheel W and rotate it in the 'LOCK' direction. cover P. Use only moderate torque. 15) Switch on and wait 30 minutes. 16) Tighten screws in criss-cross sequence. Using torque 5 Nm for ETC330-GB and 6 Nm for ETC340-GB.
- Page 9 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com WE-EF LIGHTING United Kingdom Tel +44 844 880 5346 Fax +44 844 880 5347 info.uk@we-ef.com TO9128W0318 © WE-EF 2018 subject to change.
