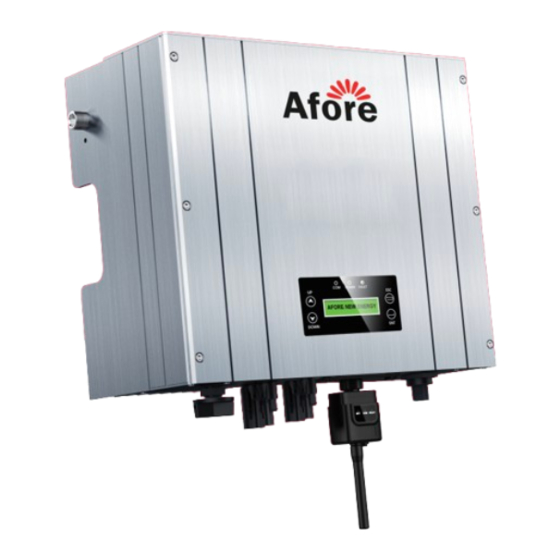

Afore HNS3000TL Installation And Operation Manual
On-grid pv inverter
Hide thumbs
Also See for HNS3000TL:
- Installation and operation manual (26 pages) ,
- User manual installation (17 pages) ,
- User manual (33 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Afore HNS3000TL
Summary of Contents for Afore HNS3000TL
- Page 1 On-Grid PV Inverter Installation and Operation Manual...
-
Page 2: Table Of Contents
Contents Contents 1.About This Manual ..... 1.1 Scope of Validity ......1.2 Target Group . -
Page 3: About This Manual
About This Manual 1.About This Manual 1.1 Scope of Validity This manual describes the installation, commissioning, operation and maintenance of the following on-grid PV inverters produced by Afore New Energy: Single-Phase(Two MPPT Trackers) HNS3000TL HNS3600TL HNS4000TL HNS5000TL HNS6000TL Single-Phase(One MPPT Tracker) HNS3600TL-1 Please keep this manual all the time available in case of emergency. -
Page 4: Safety & Symbols
Safety & Symbols Circuit Breaker and Surge Protector Recommendation: Type Max AC Current [A] Rated current of AC breaker[A] Single-Phase(Two MPPT Trackers) HNS3000TL HNS3600TL HNS4000TL HNS5000TL HNS6000TL Single-Phase(One MPPT Tracker) HNS3600TL-1 SPD: Lightning protection system, refer to the following options: AC side, nominal discharge current 20KA, second grade lightning protection, protection voltage 2.5KV... -
Page 5: Explanations Of Symbols
6. Please ensure that the used device and any relevant accessories are disposed of in accordance with applicable regulations. 7. Afore inverter should be placed upwards and handled with care in delivery. Pay attention to waterproof. Do not expose the inverter to water, rain, snow or spray. -
Page 6: Installation
Installation 3.Installation 3.1 Package Unpacking On receiving the inverter, please check to make sure the packing and all of the components are not missing or damaged. Please contact your dealer directly for supports if there is any damage or missing components. Package List Open the package, please check the packing list shown as below. -
Page 7: Product Overview
Installation 3.2 Product Overview 344 mm 166 mm Overview of the Connection Area The following figures show the assignment of the individual connection areas on the bottom of the inverter. Items DC Switch DC Connectors ( + ) For PV Strings DC Connectors ( −... -
Page 8: Mounting Location
Installation 3.3 Mounting Location The inverters are designed for indoor and outdoor installation (IP65), to increase the safety, performance and lifespan of the inverter, please select the mounting location carefully based on the following rules: The inverter should be installed on a solid surface, far from flammable or corrosion materials, where is suitable for inverter’s weight and dimensions. -
Page 9: Installation On-Grid Pv Inverter
Installation Leave the enough space around inverter, easy for accessing to the inverter, connection points and maintenance. 300mm 100mm 100mm 500mm 3.4 Installation On-grid PV Inverter Step 1 26mm 35mm 26mm 328.5mm Step 2... -
Page 10: Electrical Connection
Installation Step 3 Security screw 3.5 Electrical Connection 3.5.1 PV Connection The inverter is equipped with 2 MPPT channels, each of which contains a PV string input. For best results, please ensure that each MPPT channel is connected to a PV string separately. Otherwise, the inverter will activate voltage or automatic current protection. - Page 11 Installation Step 1 12-15 mm 12-15 mm Cross-section Note: 4 mm PV cable suggestion Step 2 Positive Crimp Contact Negative Crimp Contact Note: Please use PV connector crimper Step 3 Note: You’ll hear click sound when the connector assembly is correct Note：...
-
Page 12: Grid Connection
Installation 3.5.2 Grid Connection The on-grid PV inverters work with grid (220/230/240 Vac, 50/60 Hz). The external AC switch should be installed between inverter and grid to isolate from grid. Please make sure below requirements are followed before connecting AC cable to the inverter. ・The AC (grid) voltage must not exceed inverter’s range ・The phase-line from AC distribution box are correctly connected ・Use the AC plugs in the accessory... - Page 13 Installation Step 3 Connect AC line, Live line (L), Neutral line (N) and Ground Wire (PE) according to polarity. Step 4 Connect AC terminals and waterproof head, tighten the cap, make sure they clip closely together. Connect AC connector to AC terminal of the inverter. Ensure firm insertion.
-
Page 14: Communication Connection (Wifi / Ethernet / Gprs / Rs485)
Installation 3.5.3 Communication Connection The monitoring module could transmit the data to the cloud server, and display the data on the PC, tablet and smart-phone. Install the Wi-Fi / GPRS / RS485 Communication Wi-Fi / GPRS / RS485 communication is applicable to the inverter .Please refer to "Communication Configuration Instruction"... - Page 15 Please refer to "Zero injection Smart Meter Instruction" for detailed instruction. Step 1 Afore Smart Meter Afore Smart Meter 12345678 RJ45 Plug Zero-Injection Port pin assignment...
-
Page 16: Operation
Router PV Array PV Inverter PV Array Energy Meter Grid PV Inverter Afore Smart Meter RS485 / WiFi / Ethernet / GPRS Load PV Array PV Inverter Note: The Inverter could be connected in parallel with Smart Meter, make sure the total load power not exceed Smart Mater’s limitation. -
Page 17: Menu Structure
Operation 4.2 Menu Structure Second Level Menu HNS3000TL-2 Uersion：M xxxx First Level Menu Inverter Info Version：S xxxx Version：S xxxx S/N（Machine）Sxxxxxxxxx S/N（Wifi）xxxxxxxxxx Wifi Info IP (Wifi) 192.168.xx.xx Error Record No Error Date: Year-month-day Date Time Time: H:M:S PassWord xxxx Upstream PassWord xxxx... -
Page 18: Setting
Display the WIFI serial number and assigned IP address Date & Time Set date and time of the inverter Set the protection parameters of inverter Upstream Countercurrent 4.3 Setting 4.3.1 Startup Setting Afore New Energy Please Choose 1s Delay Your Country Enter UP/DOWN Switch countries Please Set... -
Page 19: Parameter Setting
Operation 4.3.2 Parameter Setting Enter Main Menu Enter UP/DOWN Para View: Max VoLtage: Enter Min VoLtage: Input Password Max FrEquency: XXX Min FrEquency: XXX Safety: Enter UP/DOWN Para Adj: Power Off and Enter Para: Restart Inverter Enter Finish Note: The inverter need to be restarted to finish parameter setting. -
Page 20: Commissioning
Commissioning 5.Commissioning Before starting up commissioning at site, please make sure below procedures and requirements are fully meet. · Mounting location is meet the requirements. · All of the electrical wiring is firmly connected, including PV wiring, Grid wiring and Earth wiring. ·... -
Page 21: Shut Down & Restart The Inverter
Shut Down & Restart the Inverter 6.Shut Down & Restart the Inverter 6.1 Shut Down Procedures ・Turn off the DC switch on the inverter; ・Turn off the PV switch of the system; ・Turn off the AC switch between inverter output and the public grid. Note: The inverter will be operable after minimum 5 minutes. - Page 22 Maintenance&Trouble Shooting Trouble-Shooting List Error Code Error Message Possible Fault Correctie Measure Display Ground Fault Ground Fault Circuit GFCI Fault restart the inverter Circuit Interrupter Interrupter fault fault · check PV input voltage within Bus High 450Vdc(up to 3.0kw model), Bus Voltage High ·...
-
Page 23: Specifications
18 x 2 18 x 2 18 x 2 27.5 No. of MPP Tracker / No. of PV String Input Connector Type HNS3600TL-1 AC Output Data HNS3000TL HNS3600TL HNS4000TL HNS5000TL HNS6000TL 3960 Max. Output Power ( W ) 3300 3960 4400 5500...
