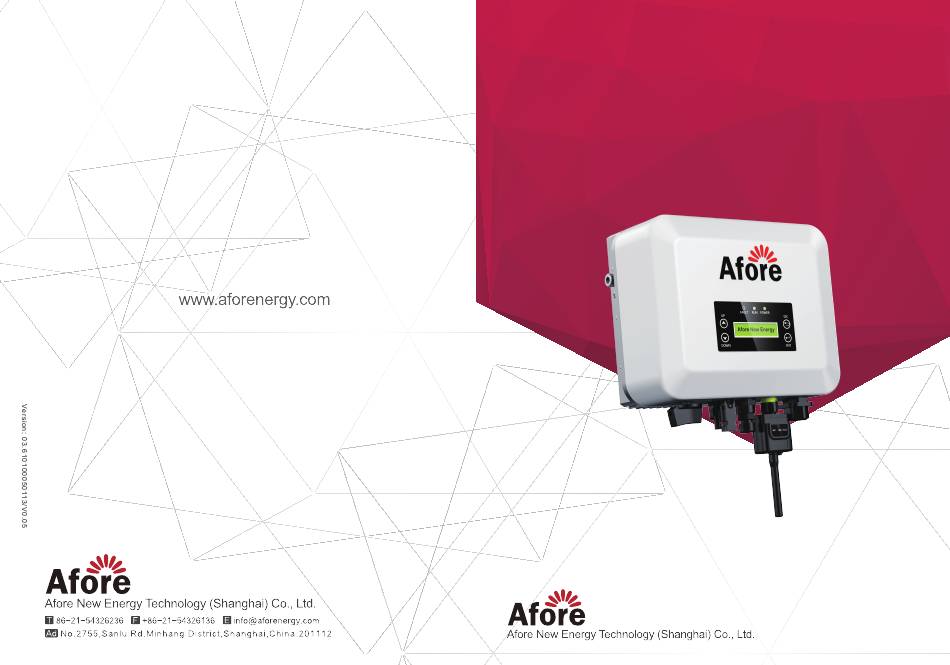

- Page 1 On-Grid PV Inverter Installation and Operation Manual...
-
Page 2: Table Of Contents
Contents Contents 1.About This Manual ..... 1.1 Scope of Validity ......1.2 Target Group . -
Page 3: About This Manual
About This Manual 1.About This Manual 1.1 Scope of Validity This manual describes the installation, commissioning, operation and maintenance of the following on-grid PV inverters produced by Afore New Energy: Single-Phase(One MPPT Tracker) HNS1000TL-1 HNS1500TL-1 HNS2000TL-1 HNS2500TL-1 HNS3000TL-1 Please keep this manual all the time available in case of emergency. -
Page 4: Safety & Symbols
Safety & Symbols Circuit Breaker and Surge Protector Recommendation: Type Max AC Current [A] Rated current of AC breaker[A] Single-Phase(One MPPT Tracker) HNS1000TL-1 HNS1500TL-1 HNS2000TL-1 HNS2500TL-1 HNS3000TL-1 SPD: Lightning protection system, refer to the following options: AC side, nominal discharge current 20KA, second grade lightning protection, protection voltage 2.5KV... -
Page 5: Explanations Of Symbols
6. Please ensure that the used device and any relevant accessories are disposed of in accordance with applicable regulations. 7. Afore inverter should be placed upwards and handled with care in delivery. Pay attention to waterproof. Do not expose the inverter to water, rain, snow or spray. -
Page 6: Installation
Installation 3.Installation 3.1 Package Unpacking On receiving the inverter, please check to make sure the packing and all of the components are not missing or damaged. Please contact your dealer directly for supports if there is any damage or missing components. Package List Open the package, please check the packing list shown as below. -
Page 7: Product Overview
Installation 3.2 Product Overview 278mm 118mm Overview of the Connection Area The following figures show the assignment of the individual connection areas on the bottom of the inverter. Items DC Switch DC Connectors ( + ) For PV String DC Connectors ( − ) For PV String AC Connector Monitor Module Port Zero-Injection Port (Optional) -
Page 8: Mounting Location
Installation 3.3 Mounting Location The inverters are designed for indoor and outdoor installation (IP65), to increase the safety, performance and lifespan of the inverter, please select the mounting location carefully based on the following rules: The inverter should be installed on a solid surface, far from flammable or corrosion materials, where is suitable for inverter’s weight and dimensions. -
Page 9: Installation On-Grid Pv Inverter
Installation Leave the enough space around inverter, easy for accessing to the inverter, connection points and maintenance. 300mm 100mm 100mm 500mm 3.4 Installation On-grid PV Inverter Step 1 36mm 36mm 140mm 242mm Step 2... -
Page 10: Electrical Connection
Installation Step 3 Security screw 3.5 Electrical Connection 3.5.1 PV Connection The inverter have one MPPT channel, can be connected with one string of PV panels. Please make sure below requirements are followed before connecting PV panels / string to the inverter. ·... - Page 11 Installation Step 1 12-15 mm 12-15 mm Note: Cross-section PV cable suggestion 4 mm Step 2 Positive Crimp Contact Negative Crimp Contact Note: Please use PV connector crimper to pinch the point of the arrow Step 3 Note: You’ll hear click sound when the connector assembly is correct...
-
Page 12: Grid Connection
Installation 3.5.2 Grid Connection The on-grid PV inverters work with grid (220/230/240 Vac, 50/60 Hz). The external AC switch should be installed between inverter and grid to isolate from grid. Please make sure below requirements are followed before connecting AC cable to the inverter. ·... - Page 13 Installation Step 3 Connect AC line, Live line (L), Neutral line (N) and Ground Wire (PE) according to polarity. Step 4 Connect AC terminals and waterproof head, tighten the cap, make sure they clip closely together. Connect AC connector to AC terminal of the inverter. Ensure firm insertion.
-
Page 14: Communication Connection (Wifi / Ethernet / Gprs / Rs485)
Installation 3.5.3 Communication Connection The monitoring module could transmit the data to the cloud server, and display the data on the PC, tablet and smart-phone. Install the Wi-Fi / GPRS / RS485 Communication Wi-Fi / GPRS / RS485 communication is applicable to the inverter . Please refer to "Communication Configuration Instruction"... - Page 15 Please refer to "Zero injection Smart Meter Instruction" for detailed instruction. Step 1 Afore Smart Meter Afore Smart Meter 12345678 RJ45 Plug Zero-Injection Port pin assignment...
-
Page 16: Operation
Smart Mater’s limitation. Router PV Array PV Inverter PV Array Energy Meter Grid PV Inverter Afore Smart Meter RS485 / WiFi / Ethernet / GPRS Load PV Array PV Inverter 4.Operation 4.1 Control Panel POWER GRID... -
Page 17: Menu Structure
Operation 4.2 Menu Structure Second Level Menu HNS3000TL-1 Version：M Vxxx First Level Menu Inverter Info Version：S Vxxx Version：C Vxxx S/N（Machine）S6xxxxxxxx S/N（Wifi）xxxxxx Wifi Info IP(Wifi)192.168.xx.xx Error Record No Error Date: 2020-Dd-Mm Date&Time Time: Hh:Mm:Ss Three Level Menu Safety PassWord xxxx Output P% PassWord xxxx Freq Range PassWord xxxx... -
Page 18: Setting
Set date and time of the inverter Setting Set the protection parameters of inverter Zero Injection Countercurrent 4.3 Setting 4.3.1 Startup Setting Afore New Energy Normal 1s Delay Power=xx W Enter UP/DOWN UP/DOWN Adjust the time and press ENT to confirm Selection Date&Time... -
Page 19: Commissioning
Operation 5.Commissioning Before starting up commissioning at site, please make sure below procedures and requirements are fully meet. · Mounting location is meet the requirements. · All of the electrical wiring is firmly connected, including PV wiring, Grid wiring and Earth wiring. ·... -
Page 20: Shut Down & Restart The Inverter
Commissioning 6.Shut Down & Restart the Inverter 6.1 Shut Down Procedures ・Turn off the DC switch on the inverter; ・Turn off the PV switch of the system; ・Turn off the AC switch between inverter output and the public grid. Note: The inverter will be operable after minimum 5 minutes. - Page 21 Shut Down & Restart the Inverter Trouble-Shooting List Error Code Error Message Possible Fault Correctie Measure Display Ground Fault Ground Fault Circuit GFCI Fault restart the inverter Circuit Interrupter Interrupter fault fault · check PV input voltage within Bus High 450Vdc(up to 3.0kw model), Bus Voltage High ·...
-
Page 22: Specifications
Maintenance&Trouble Shooting 8.Specifications PV Input Data HNS1000TL-1 HNS1500TL-1 HNS2000TL-1 HNS2500TL-1 HNS3000TL-1 Max. DC Power ( W ) 1500 2250 3000 3750 4200 Max. DC Voltage ( V ) MPPT Voltage Range ( V ) 50 -500 50 -500 50 - 500...
