Afore Residential HNS Series Installation And Operation Manual

Afore Residential HNS Series Installation And Operation Manual

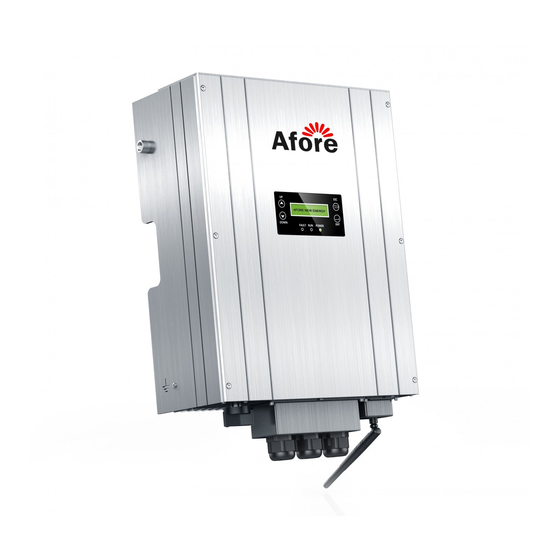

On-grid pv inverter

Advertisement

On-Grid PV Inverter
Residential HNS series:
HNS 1000/ 1500/ 2000/ 2500/ 3000 / 3600 TL-1
HNS 3000/ 3600/ 4000/ 5000 TL
Installation and Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Residential HNS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Afore Residential HNS Series

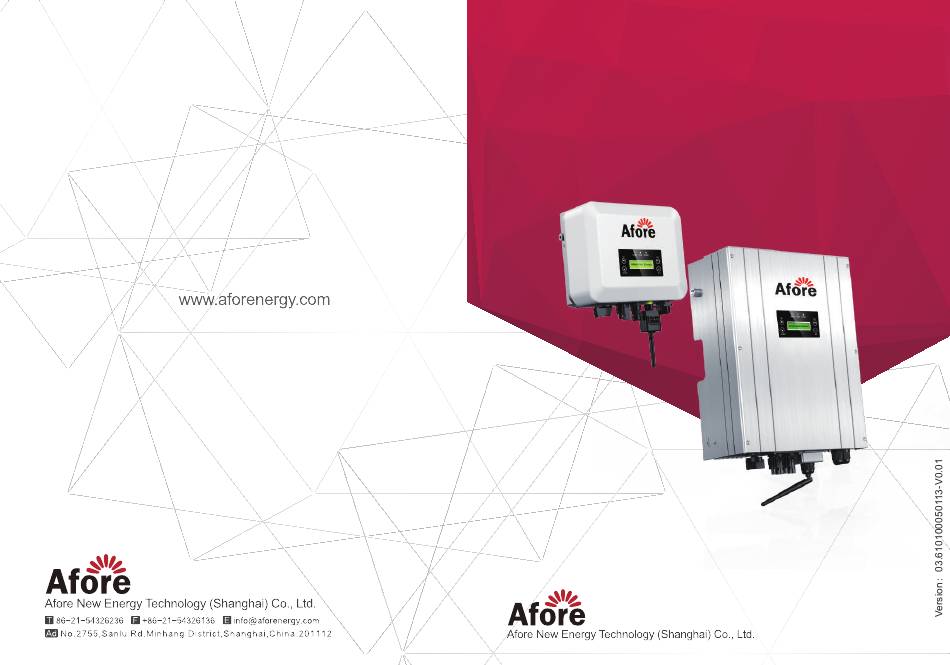

  • Page 1 On-Grid PV Inverter Residential HNS series: HNS 1000/ 1500/ 2000/ 2500/ 3000 / 3600 TL-1 HNS 3000/ 3600/ 4000/ 5000 TL Installation and Operation Manual...
  • Page 2: Table Of Contents

    Contents Contents 1.About This Manual ..... 1.1 Scope of Validity ......1.2 Target Group .
  • Page 3: About This Manual

    About This Manual 1.About This Manual 1.1 Scope of Validity This manual describes the installation, commissioning, operation and maintenance of the following on-grid PV inverters produced by Afore New Energy: Single-Phase(One MPPT Tracker) HNS1000TL-1 HNS1500TL-1 HNS2000TL-1 HNS2500TL-1 HNS3000TL-1 HNS3600TL-1 Single-Phase(Two MPPT Trackers)
  • Page 4: Safety & Symbols

    Safety & Symbols Circuit Breaker and Surge Protector Recommendation: Type Max AC Current [A] Rated current of AC breaker[A] Single-Phase(One MPPT Tracker) HNS1000TL-1 HNS1500TL-1 HNS2000TL-1 HNS2500TL-1 HNS3000TL-1 HNS3600TL-1 Single-Phase(Two MPPT Trackers) HNS3000TL HNS3600TL HNS4000TL HNS5000TL SPD: Lightning protection system, refer to the following options: AC side, nominal discharge current 20KA, second grade lightning protection, protection voltage 2.5KV DC side, nominal discharge current 20KA, second grade lightning protection,...
  • Page 5: Explanations Of Symbols

    6. Please ensure that the used device and any relevant accessories are disposed of in accordance with applicable regulations. 7. Afore inverter should be placed upwards and handled with care in delivery. Pay attention to waterproof. 8.Alternative uses, modifications to the inverter not recommended by Afore or the installation of components not sold by Afore New Energy void the warranty claims.
  • Page 6: Installation

    Installation 3.Installation 3.1 Package Unpacking On receiving the inverter, please check to make sure the packing and all of the components are not missing or damaged. Please contact your dealer directly for supports if there is any damage or missing components. Package List Open the package, please check the packing list shown as below.
  • Page 7 Installation Single-Phase(Two MPPT Trackers) HNS3000TL HNS3600TL HNS4000TL HNS5000TL Certificate User Installation Warranty Notice For Manual diagram card Installation inspection Items Items Solar inverter Plastic Expansion Tube User manual Tapping screw Certificate of inspection Security screw Installation diagram Screwdriver for security screw Warranty card DC plug connector 1/2sets①...
  • Page 8: Product Overview

    Installation 3.2 Product Overview Single-Phase(One MPPT Tracker) HNS1000TL-1 HNS1500TL-1 HNS2000TL-1 HNS2500TL-1 HNS3000TL-1 HNS3600TL-1 278mm 118mm Single-Phase(Two MPPT Trackers) HNS3000TL HNS3600TL HNS4000TL HNS5000TL 345mm 170mm Overview of the Connection Area The following figures show the assignment of the individual connection areas on the bottom of the inverter.
  • Page 9 Installation Single-Phase(One MPPT Tracker): RJ 45 port Single-Phase(Two MPPT Trackers): RJ 45 port WIFI Items DC Switch(optional) DC connectors ( + ) for the PV strings DC connectors ( − ) for the PV strings AC connection Communication port RJ 45 Port(DRM)
  • Page 10: Mounting Location

    Installation 3.3 Mounting Location The inverters are designed for indoor and outdoor installation (IP65), to increase the safety, performance and lifespan of the inverter, please select the mounting location carefully based on the following rules: The inverter should be installed on a solid surface, far from flammable or corrosion materials, where is suitable for inverter’s weight and dimensions.
  • Page 11: Installation On-Grid Pv Inverter

    Installation Leave the enough space around inverter, easy for accessing to the inverter, connection points and maintenance. 300mm 100mm 100mm 500mm 3.4 Installation On-grid PV Inverter Step 1 Single-Phase(One MPPT Tracker): 36mm 36mm 242mm Single-Phase(Two MPPT Trackers): 26mm 35mm 26mm 328.5mm...
  • Page 12: Electrical Connection

    Installation Step 2 Step 3 Security screw 3.5 Electrical Connection 3.5.1 PV Connection The inverter have one or two-MPPT channels, can be connected with one or two strings of PV panels. Please make sure below requirements are followed before connecting PV panels / strings to the inverter. ・The open-circuit voltage and short-circuit current of PV string must not exceed inverter’s range ・The isolation resistance between PV string and ground must exceed 10 kΩ...
  • Page 13 Installation Warning: The fatal high voltage may on the DC side, please comply with electric safety when connecting. Please make sure the correct polarity of the cable connected with inverter, otherwise inverter could be damaged. Step 1 12-15 mm 12-15 mm Cable Diameter Cross-section Note: PV cable suggestion...
  • Page 14: Grid Connection

    Installation Step 3 STOP ! Note: You’ll hear click sound when the connector assembly is correct 3.5.2 Grid Connection The on-grid PV inverters work with grid (220/230/240 Vac, 50/60 Hz). The external AC switch should be installed between inverter and grid to isolate from grid.
  • Page 15 Installation Warning: The fatal high voltage may on the AC side, please comply with electric safety when connecting. Please make sure the right line of AC grid connected with inverter, otherwise inverter could be damaged. Step 1 Cross-section Note: AC cable suggestion 4 mm Step 2 AC line goes through AC terminal waterproof head and cap...
  • Page 16 Installation Step 3 Connect AC line, Live line (L), Neutral line (N) and Ground Wire (PE) according to polarity. Step 4 Connect AC terminals and waterproof head, tighten the cap, make sure they clip closely together. Connect AC connector to AC terminal of the inverter. Ensure firm insertion.
  • Page 17: Communication Connection (Wifi / Ethernet / Gprs / Rs485)

    Installation 3.5.3 Communication Connection The monitoring module could transmit the data to the cloud server, and display the data on the PC, tablet and smart-phone. Install the communication stick to the inverter Connect AC connection and turn on AC breaker, wait till the LED indicators on Wi-Fi module flashing.
  • Page 18: Operation

    Operation Earth Fault Alarm The HNS series inverter is equipped with an earth fault alarm. When earth fault occurs, the fault indicator at the front LED screen will light up. And the buzzer of the inverter will keep ringing until the fault is resolved. (This function is only available in Australia and New Zealand).
  • Page 19: Menu Structure

    Operation 4.2 Menu Structure Country:XX Case_Temp: XXX ℃ ModleTemp: XXX ℃ ScreenTemp: XXX ℃ Rated Power: XX KW System Info PGaImp: XXX NGaImp: XXX PGbImp: XXX NGbImp: XXX Nub/Total: X/XXX Err: XXXXX Main Menu Error Record StartTime: XXXXX LastTime: XXXXX Vac.Max: XXX V Vac.Min: XXX V Pass World...
  • Page 20 Operation Date Dd-Mm-2015 Date & Time SET Time Hh-Mm-Ss Address:xxxxx RS485 Address Baud rate:xxxx SN number DSP: HMI: Main Menu GridPowerCtrl DSP: Wifi Info Power Factor PQ Mode KVAr Active Island ON/OFF...
  • Page 21: Setting

    , and PQP ( power generation control unit) PQ mode on and off Active island Only RD test ,customer can’t use it 4.3 Setting 4.3.1 Startup Setting Afore New Energy Please Choose 1s Delay Your Country Enter UP/DOWN Switch countries...
  • Page 22: Parameter Setting

    Operation 4.3.2 Parameter Setting Enter Main Menu Enter UP/DOWN Para View: Max VoLtage: Enter Min VoLtage: Input Password Max FrEquency: XXX Min FrEquency: XXX Safety: Enter UP/DOWN Para Adj: Power Off and Enter Para: Restart Inverter Enter Finish Note: Change all parameters that need to be modified before restarting the inverter.
  • Page 23: Commissioning

    Commissioning 5.Commissioning Before starting up commissioning at site, please make sure below procedures and requirements are fully meet. · Mounting location is meet the requirements. · All of the electrical wiring is firmly connected, including PV wiring, Grid wiring and Earth wiring. ·...
  • Page 24: Shut Down & Restart The Inverter

    Shut Down & Restart the Inverter 6.Shut Down & Restart the Inverter 6.1 Shut Down Procedures ・Turn off the DC switch on the inverter; ・Turn off the PV switch of the system; ・Turn off the AC switch between inverter grid output and the public grid. Note: The inverter will be operable after minimum 5 minutes.
  • Page 25: Fault Code And Trouble Shooting

    Maintenance&Trouble Shooting 7.2 Fault Code and Trouble Shooting The LCD and LED will report the fault when the error occurs, please follow thetrouble shooting list to solve the problem. POWER Green LED FAULT Red LED POWER FAULT Green LED DOWN Display Description Suggestion...
  • Page 26 Maintenance&Trouble Shooting Trouble-Shooting List Error Code Error Message Possible Fault Correctie Measure Display Ground Fault Ground Fault Circuit GFCI Fault restart the inverter Circuit Interrupter Interrupter fault fault · check PV input voltage within Bus High 450Vdc(up to 3.0kw model), Bus Voltage High ·...
  • Page 27: Specifications

    Specifications 8.Specifications PV Input Data HNS1000TL-1 HNS1500TL-1 HNS2000TL-1 HNS2500TL-1 HNS3000TL-1 HNS3600TL-1 Max. DC Power ( W ) 1500 2250 3000 3750 4200 4200 Max. DC Voltage ( V ) MPPT Voltage Range ( V ) 50 -500 50 -500 50 - 500 50 -500 50 -500 50 -500...
  • Page 28 Specifications PV Input Data HNS3000TL HNS3600TL HNS4000TL HNS5000TL Max. DC Power ( W ) 4500 5400 6000 7000 Max. DC Voltage ( V ) MPPT Voltage Range ( V ) 70 -550 70 -550 70 -550 70 -550 MPPT Full Power Voltage Range ( V ) 110-550 130-550 145-550...
