PROFESSIONAL WEATHER CENTRE
INITIAL SETUP:

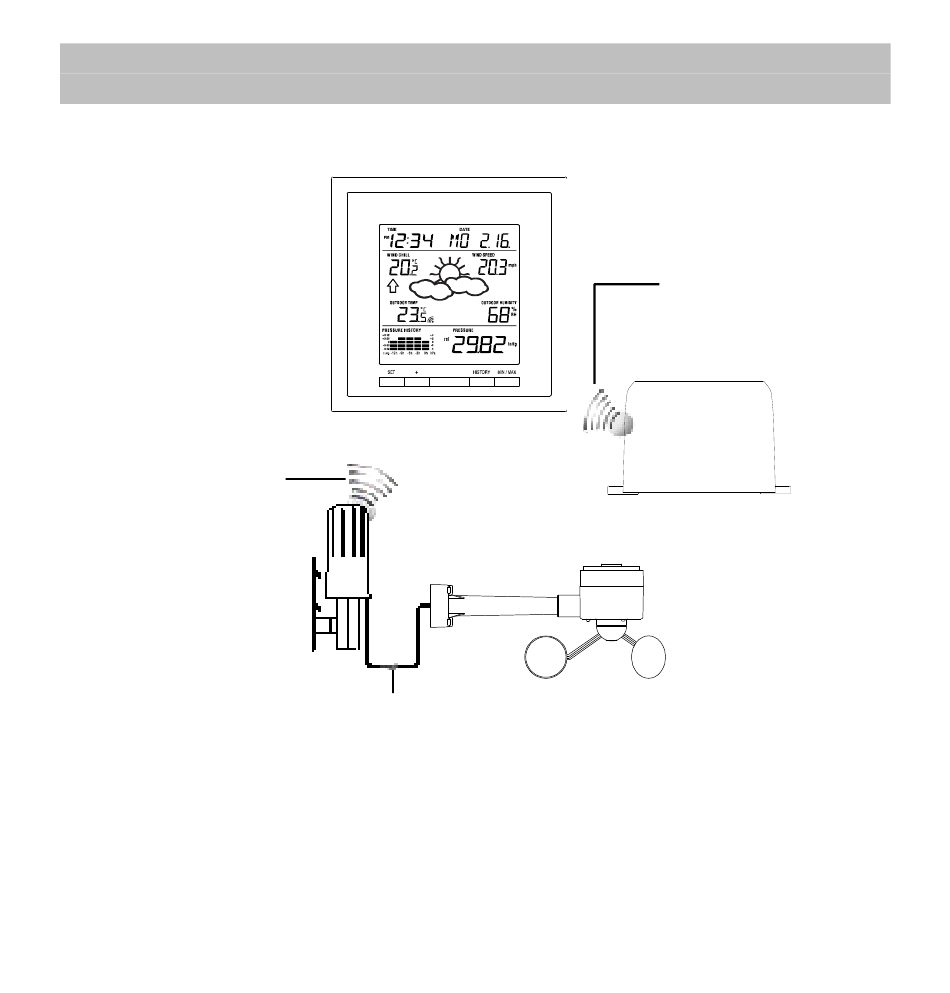

Weather Centre
Wireless transmission -
Thermo-hygro transmitter
to weather centre
Thermo-hygro
Transmitter
Cable connection between the wind sensor and
the thermo-hygro transmitter
QUICK SET UP MANUAL –
1
OPTIONAL
Wireless
transmission– Self-
Emptying Rain sensor
to weather centre
Rain Sensor (sold separately)
Wind Sensor
Advertisement
Related Manuals for La Crosse Technology WS-1913IT
Summary of Contents for La Crosse Technology WS-1913IT
- Page 1 QUICK SET UP MANUAL – PROFESSIONAL WEATHER CENTRE INITIAL SETUP: OPTIONAL Wireless transmission– Self- Emptying Rain sensor to weather centre Weather Centre Wireless transmission - Thermo-hygro transmitter to weather centre Rain Sensor (sold separately) Wind Sensor Thermo-hygro Transmitter Cable connection between the wind sensor and the thermo-hygro transmitter...
- Page 2 Note: When putting the Weather Centre into operation, it is important to have them in close proximity (e.g. on a table) while completing wiring and set-up of the system. This step is important to allow testing of all components for correct function before placing and mounting them at their final destinations (See Positioning below).
- Page 3 however that all components work properly together at their chosen mounting or standing locations. Note: After batteries are installed in the transmitter, install the batteries in the weather centre to receive the signal from the transmitters as soon as possible. If the weather centre is powered more than 5 hours after the transmitter is powered, the weather centre will never receive the signal successfully from the transmitters.
- Page 4 HOW TO INSTALL AND REPLACE THE BATTERIES INTO THE THERMO- HYGRO TRANSMITTER The outdoor Thermo-hygro transmitter works with 2 x AA IEC LR6, 1.5V batteries. To install and replace the batteries, please follow the steps below: Uninstall the rain cover of the transmitter. Remove the battery compartment cover.
-
Page 5: Function Keys
HOW TO INSTALL AND REPLACE BATTERIES INTO THE RAIN SENSOR (OPTIONAL- SOLD SEPERATELY) Figure 1 Figure 2 Figure 3 To install and replace the batteries, please follow the steps below: Unlock the main cover from the rain sensor base and remove the cover. Remove the battery cover at the top of the rain sensor. - Page 6 SET key Press and hold for 3 seconds to enter manual setting modes: LCD contrast, Manual time setting, 12/24 hour time display, Calendar setting, ºC/ ºF temperature unit, Wind speed unit, Rainfall unit, Pressure unit, Relative pressure reference setting, Weather tendency threshold setting ...
-
Page 7: Lcd Screen
LCD SCREEN The LCD screen is split into 3 sections displaying the following information: Time and date/ indoor temp/ second Wind data, outdoor temperature and humidity, dew point, weather forecast icon, tendency indicator and battery indicators. Air pressure history, relative air pressure, rainfall data (optional) Calendar / indoor temperature / seconds Time display... - Page 8 In normal display user may press the SET key shortly to toggle between Mode1 and Mode 2 display: Mode 1: Wind speed, outdoor temperature and relative air pressure are shown. Wind speed icon Outdoor temp icon Rel. Air Pressure icon Transmitter signal reception icon In Mode 1, this reception icon is showing the condition of the reception of the signal from Thermo-hygro transmitter...
- Page 9 POSITIONING: Using 915MHz wireless transmission gives users little restriction on placement because all units can be positioned virtually anywhere within a 330 ft / 100 meters radius of the base station. Please ensure that the cable included in this set meets your distance requirements (see accessories in the main user manual for adding extension cables).
- Page 10 All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher. This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked and corrections made in the next issue.
