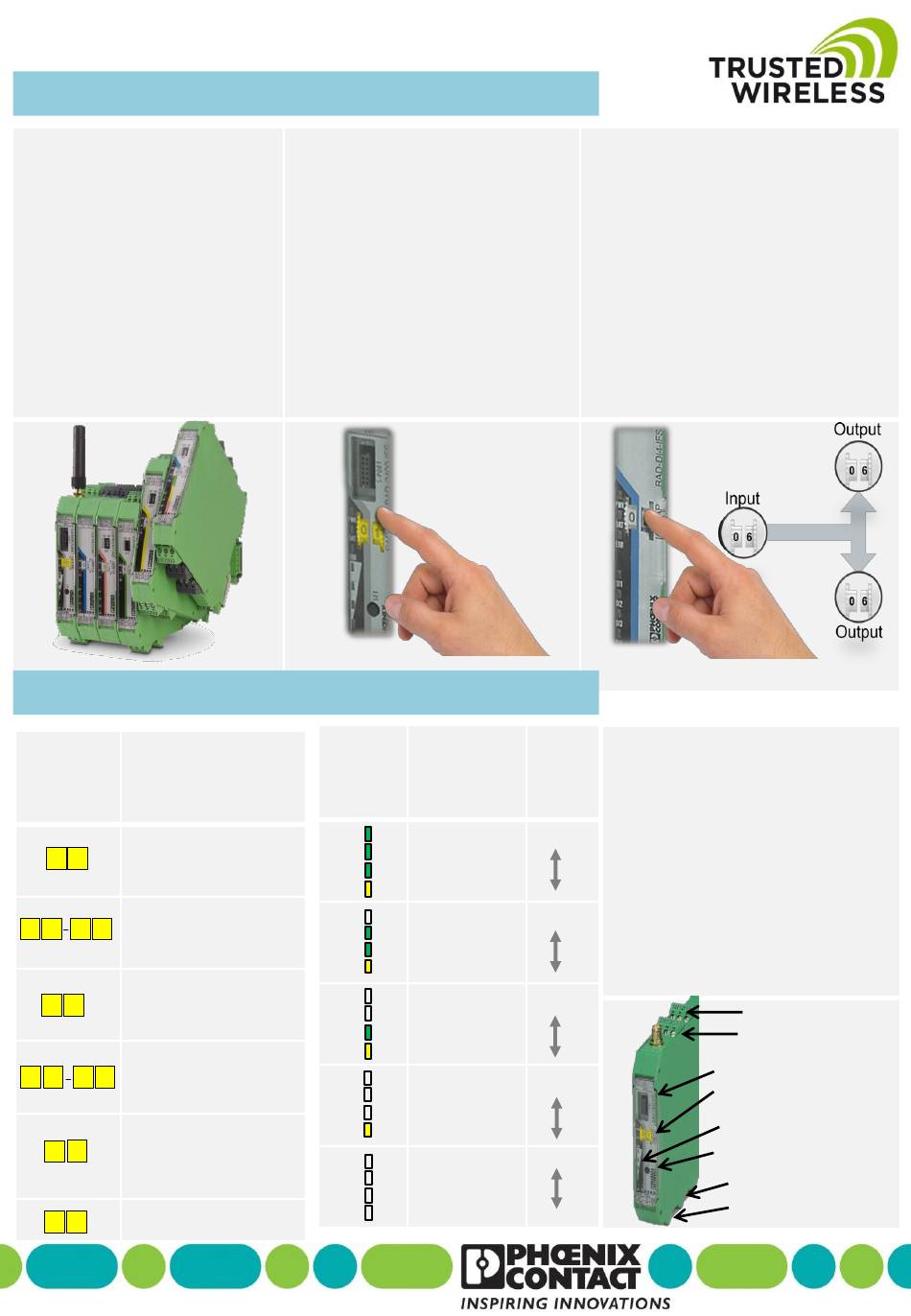

Quick start guide Radioline 2,4 GHz

1. Startup

Easy installation
• Set up the modular wireless
station
• Connect the 24 V power
supply
• Simply replace or expand
with I/O extension modules
during the operation

2. Thumbwheel, RSSI, default settings

Thumb- Description
wheel
address
Master address for point-
0 1
to-point and mesh
networks
Repeater/slave addresses
0 2 9 9
for point-to-point and
mesh networks
Master address for star
* 1
networks (point-to-point)
Slave addresses for star
* 2 * 9
networks (point-to-point)
Addressing of the
wireless modules via PSI-
* *
CONF software (address
1...250)
Not permitted
0 0
Easy addressing
• Set the RAD ID on the wireless
module by turning the
thumbwheel (RAD ID 01=
master, RAD ID 02-99 =
repeater/slave)
• Each network device is assigned
a different RAD ID address
• Press the "SET" button on the
wireless module for 1s to accept
the current configuration
Bar graph Receive signal
LEDs
Maximum
receive signal
Very good
receive signal
Good receive
signal
Low receive
signal
Not connected
Easy distribution
•
I/O Mapping makes assignment
of I/O signals possible in the
system by simply turning the
thumbwheel
•
Input and output modules are
assigned the same I/O MAP
address
•
Press the "SET" button on the
wireless module for 1s to accept
the current configuration
RSSI
Default settings
signal
• Network ID: 127
• RF band: 4
• Encryption: off
3,0 V
• Network structure: Mesh
• Blacklisting: WLAN channel 6
• Data rate: 125 kbps
• If you require other parameters
2,5 V
or want to set up the serial
interface, you can modify these
via the software
2,0 V
1,5 V
1,0 V
0 V
24 V
RSSI output, 0-3 V
S-PORT
RAD ID thumbwheel
LED bar graph
SET button
RS-232 terminal
RS-485 terminal
