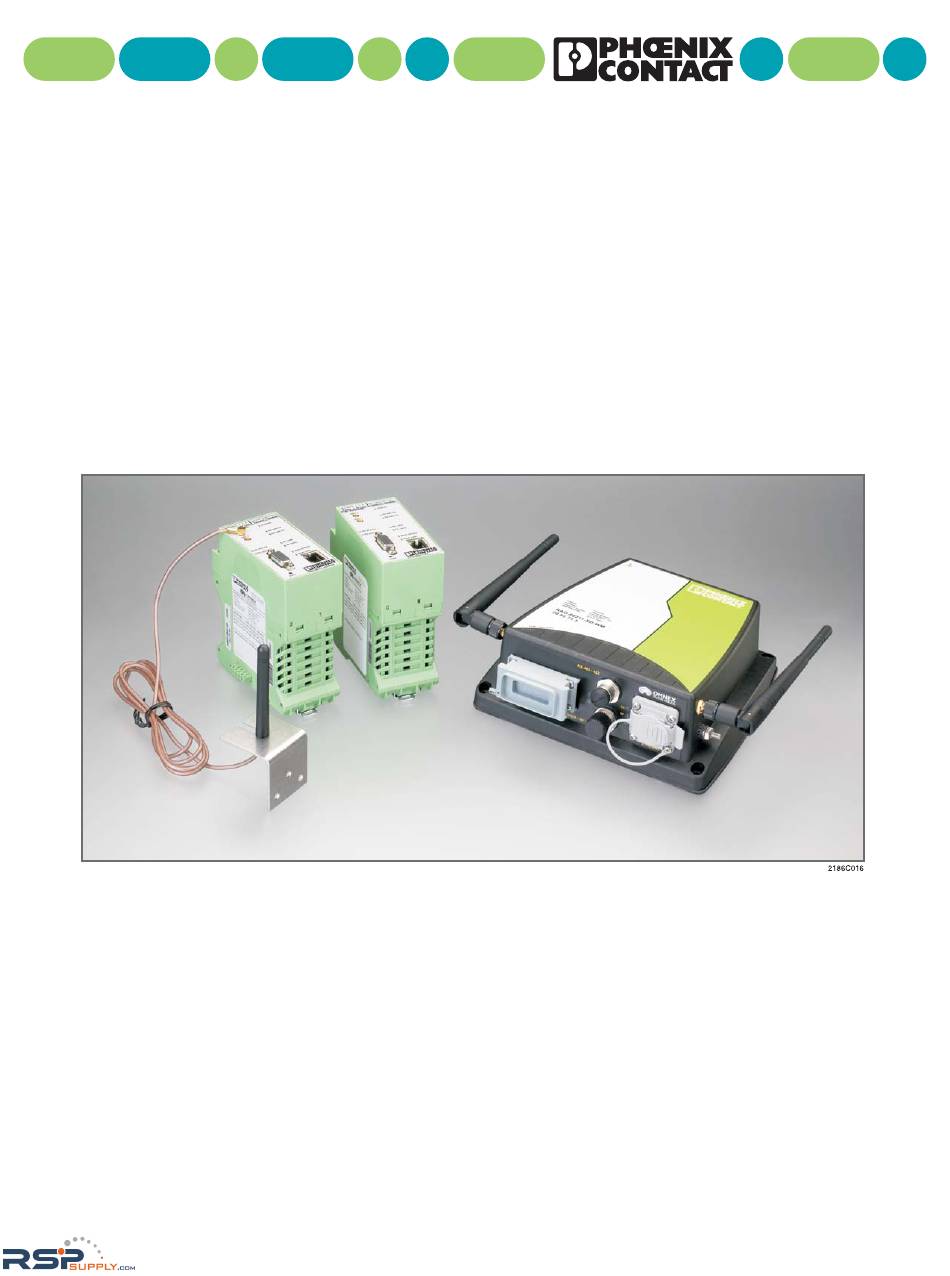

INSPIRING INNOVATIONS
Wireless Ethernet Radios
802.11 Transceiver Series
User Manual
RAD-80211-XD, RAD-80211-XD-BUS
and
RAD-80211-XD-WM

i
RSPSupply - 1-888-532-2706 - www.RSPSupply.com
http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAD-80211-XD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Phoenix Contact RAD-80211-XD

Summary of Contents for Phoenix Contact RAD-80211-XD

  • Page 1 INSPIRING INNOVATIONS Wireless Ethernet Radios 802.11 Transceiver Series User Manual RAD-80211-XD, RAD-80211-XD-BUS RAD-80211-XD-WM RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
  • Page 2 RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
  • Page 3 RAD-80211-XD (IP20 DIN-rail Version – PN: 28 85 72 8) RAD-80211-XD-BUS (IP20 DIN-rail Version – PN: 28 85 75 7) RAD-80211-XD-WM (IP54 Wall Mount Version – PN: 28 85 71 5) 1. Ethernet™ is a tradename of Xerox Corporation 2. Windows® and Windows® CE are tradenames of Microsoft Corporation 3.
  • Page 4 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM Information given herein is based on data believed to be reliable, but Phoenix Contact makes no warranties expressed or implied as to its accuracy and assumes no liability arising out of its use by others. This publication is not intended to be taken as a license to operate under, or recommendation to infringe upon, any patents.

  • Page 5: Table Of Contents

    Validity of Documentation ................xiii SECTION 1 802.11 Series Overview Basic Features of the IEEE 802.11 Wi-Fi Standard ............ 1-1 Radio Descriptions ..................... 1-2 1.2.1 RAD-80211-XD ..................... 1-2 1.2.2 RAD-80211-XD-BUS ..................1-3 1.2.3 RAD-80211-XD-WM ..................1-4 Wireless Standard IEEE 802.11 Basics ..............1-5 1.3.1...
  • Page 6 Antennas and Coaxial Cable ................. 2-4 2.6.2 Cable Connections ..................2-4 2.6.3 Power Supply ....................2-4 SECTION 3 Mounting the Radios Mounting the RAD-80211-XD or RAD-80211-XD-BUS ..........3-1 Mounting the RAD-80211-XD-WM ................3-4 3.2.1 Non-hazardous Locations ................3-4 3.2.2 Hazardous Locations ..................3-4 SECTION 4 Making Connections and Powering Up Power Connections ....................
  • Page 7 SNMP Configuration ....................5-9 5.10 DHCP Server ......................5-11 5.11 Configuring the RAD-80211-XD Family as an Access Point ........5-12 5.11.1 General ....................... 5-12 5.11.2 Access Point Security ................. 5-15 Static WEP....................5-15 IEEE 802.11i and WPA Security ............. 5-16 5.11.3 MAC Address Filtering ................
  • Page 8 6.1.2 System Overview ..................6-2 6.1.3 I/O System Configuration Overview .............. 6-2 6.1.4 Configuring RAD-80211-XD-BUS Radios Connected to I/O ......6-3 6.1.5 Configuring RAD 80211 Family Radios Connected to the PLC /Modbus Master I/O Module Descriptions ..................... 6-7 6.2.1 Connecting and Configuring the I/O Modules ..........6-8 Addressing the Remote I/O ..................
  • Page 9 Technical Data Dimensions ........................ 8-1 Specifications ......................8-2 SECTION 9 Ordering Information RAD-80211-XD and RAD-80211-XD-BUS Parts and Assemblies ......9-1 RAD-80211-XD-WM Parts and Assemblies ............... 9-2 Additional Parts and Accessories ................9-4 APPENDIX A Structure of IP Addresses Valid IP Parameters ....................A-1 A.1.1...
  • Page 10 RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Table of Contents Appendixes ........................B-5 ........................B-5 ........................B-5 ........................B-6 APPENDIX C Mounting Template for RAD-80211-XD-WM Template ..........................C-1 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 11: Preface

    Contact. This Limited Warranty does not cover on-site repair of products. Defective prod- ucts must be returned to Phoenix Contact to be repaired or replaced. Phoenix Contact is not responsible for the operation, damage, availability or loss of use of the customer-supplied equipment being used with a wireless product.

  • Page 12: Fcc Part 15 Compliance

    The products described in this manual should be installed,operated and maintained only by qualified application programmers and software engineers, electricians or persons instructed by them. Phoenix Contact assumes no liability for damage to any products resulting from disregard of information contained in this manual.

  • Page 13: Finding Information

    Phoenix Contact reserves the right to make any technical changes that serve the purpose of technical progress. Phoenix Contact reserves all rights in the case of patent award or listing of a registered design. External products are always named without reference to patent rights. The exist- ence of such rights shall not be excluded.
  • Page 14 RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Preface RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 15: Series Overview

    Ethernet Terminal Server ..................1-10 Basic Features of the IEEE 802.11 Wi-Fi Standard The Phoenix Contact 802.11 Series of radio transceivers are capable of transmitting Ether- net data using transmission methods conforming to IEEE 802.11a/b/g standards. This manual describes the RAD-80211-XD, RAD-80211-XD-BUS and the RAD-80211-XD-WM radios.

  • Page 16: Radio Descriptions

    1.2.1 RAD-80211-XD The RAD-80211-XD is a DIN rail-mount radio with a protection rating of IP20. See Figure 1-1. This radio features an RJ45 connector for connection of Ethernet devices as well as an RS232 and RS485/422 port, which gives it the capability of sending serial data to another transceiver over the 802.11 radio link.

  • Page 17: Rad-80211-Xd-Bus

    1.2.2 RAD-80211-XD-BUS The RAD-80211-XD-BUS radio differs physically from the RAD-80211-XD in that it has a 5-pin BUS connector on the side of the unit. See Figure 1-2. This BUS connector is de- signed to allow analog, digital, or frequency input/output modules to be connected. See Figure 1-3.

  • Page 18: Rad-80211-Xd-Wm

    1.2.3 RAD-80211-XD-WM The RAD-80211-XD-WM (see Figure 1-4) is a wall mount radio rated IP54 for non-hazard- ous locations. For installation in hazardous locations, refer to Section 3, Paragraph 3.2. This radio features splash resistant connectors for the connection of Ethernet and RS-232 and RS-422/485 devices.

  • Page 19: Wireless Standard Ieee 802.11 Basics

    In this configuration, it simply provides a stand-alone wireless network for a group of wireless devices. See Figure 1-5. The RAD-80211-XD FAMILY can be used as one of a number of access points connected to an existing Ethernet network to bridge between the wired and wireless environments. Each access point can operate independently of the other access points on the same LAN.

  • Page 20: Bridge Configurations

    Switch 2186A024-1 Figure 1-5. Example of Access Point/Client Bridge Configurations The wireless bridging function of the RAD-80211-XD family supports several different configurations. The most popular ones are described below. 1.5.1 Point-to-Point Bridging Figure 1-6 shows Point-to-Point bridging of two Ethernet links.

  • Page 21: Point-To-Multipoint Bridging

    LNK/ACT POWER: 12-30VDC CURRENT: 150mA @ 24VDC CONTACT RATING: 0.5A @ 30VAC / DC TEMPERATURE: 0°C TO 65°C 32°F TO 149°F RAD-80211-XD-WM LNK/ACT LNK/ACT 28 85 71 5 FL SWITCH SF 8TX Odr. No. 2832771 Bridge Bridge Mode Mode Network...

  • Page 22: Data Encryption And Security

    RAD-802.11-XD-WM User Manual – Section 1 Data Encryption and Security The RAD-80211-XD family of radios feature several advanced security technologies. Ac- cess points and clients can be operated using no security (not recommended), WEP, WPA or WPA2 (802.11i). In Bridge mode, no security or AES encryption can be used. Some level of security is recommended.

  • Page 23: Mac Address Filtering

    Access to the management screens for the RAD-80211-XD family of radios requires that you enter an ID and password. The factory defaults are: Note The username and password are case sensitive.

  • Page 24: Modbus/Tcp I/O Emulation

    One RAD-80211 radio must be selected to function as the Modbus/TCP Gateway. All RAD-80211-XD-BUS radios in emulation mode will function as Modbus slaves. If the network consists of access points (AP) and clients, the AP must be the Modbus/TCP Gate- way and the clients will be Modbus slaves.

  • Page 25: System Planning

    RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 2 SECTION System Planning Section 2 Contents Accessing the Site ....................2-1 Path Quality Analysis ....................2-2 Signal Strength ......................2-2 Antennas and Cabling ..................... 2-2 2.4.1 Coaxial Cable Considerations ..............2-3 Antenna Mounting Considerations ................

  • Page 26: Path Quality Analysis

    The exceptions include distances of less than 300 feet where no test is required in 90% of applications, and where a test is done with a functional Phoenix Contact radio set to the desired wireless mode (802.11a, b or g), transmit data rate and transmit power setting.

  • Page 27: Coaxial Cable Considerations

    RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 2 OMNI Round Reflector Antenna Vertical Aperture Angle YAGI Directional Antenna Vertical Transmit and Receive Range Horizontal Aperture Angle 1845A076-1 Figure 2-1. OMNI-directional, and YAGI-directional Antenna Performance Characteristics 2.4.1 Coaxial Cable Considerations The importance of using a low-loss antenna coaxial cable is often neglected during radio installation.

  • Page 28: Antenna Mounting Considerations

    RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 2 Antenna Mounting Considerations The antenna manufacturer’s installation instructions must be strictly followed for proper operation of a directional or omnidirectional antenna. Using proper mounting hardware and bracket ensures a secure mounting arrangement with no pattern distortion or de-tuning of the antenna.

  • Page 29: Mounting The Radios

    Hazardous Locations .................. 3-4 Mounting the RAD-80211-XD or RAD-80211-XD-BUS Figure 3-1 shows a typical RAD-80211-XD or RAD-80211-XD-BUS radio installation using a Phoenix Contact power supply, end clamps and a DIN-rail grounding block. Figure 3-1. RAD-80211-XD or RAD-80211-XD-BUS Installation Using a DIN-rail Power Supply, End Clamps and Ground Terminal Block RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
  • Page 30 ON. This can cause arcing that could damage electron- ics or cause personal injury. 1. Attach the RAD-80211-XD or RAD-80211-XD-BUS module to the mounting rail by positioning the keyway at the top of the module onto the mounting rail. See Figure 3-2.
  • Page 31 RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 3 Note Grounding clips built into the RAD-80211-XD or RAD-80211- XD-BUS module make contact with the upper rail of the DIN rail during installation. This provides a ground path from the DIN rail to the module.

  • Page 32: Mounting The Rad-80211-Xd-Wm

    RAD-802.11-XD-WM User Manual – Section 3 Mounting the RAD-80211-XD-WM 3.2.1 Non-hazardous Locations In areas where there is exposure to direct and continuous sunlight (UV) or rain, mounting under a protective cover is recommended. Install the RAD-80211-XD-WM as described under Paragraph 3.2.3. 3.2.2 Hazardous Locations WARNING...
  • Page 33 RAD-802.11-XD-WM User Manual – Section 3 2. Connect the radio to protective earth ground using the ground lug located on the right side of the module. See Figure 3-4. Figure 3-4. RAD-80211-XD-WM Radio Ground Connection RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
  • Page 34 RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 3 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 35: Making Connections And Powering Up

    12 to 30 VDC with a nominal voltage of either 12 VDC or 24 VDC recommended. The power supply must be able to supply 150 mA of current at 24 VDC. Figure 4-1 shows an installation using a Phoenix Contact MINI power supply. Figure 4-2 provides wiring information for the RAD-80211-XD or the RAD-80211-XD-BUS.

  • Page 36: Rad-80211-Xd-Wm

    (4.42 – 5.31 lbf/in.) - 2 3 - 2 3 IN K 1 - X Figure 4-2. RAD-80211-XD or RAD-80211-XD-BUS Transceiver Wiring Requirements 4.1.2 RAD-80211-XD-WM This model has two power options. The device may be powered from a Class 2 DC power supply ranging from 12 to 30 VDC or by a UL listed Power-over-Ethernet (PoE) using an 802.3af compliant power injector.

  • Page 37: Ethernet Connections

    RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 4 Figure 4-4. RAD-80211-XD-WM M12 Cable Connections Ethernet Connections Connect a CAT5 Ethernet cable between the port on the transceiver and the network adapter card on your computer. Use either a crossover (C/O) or 1:1 cable as the radio has autocross functionality.

  • Page 38: Rs422/485 Connections

    RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 4 To connect a DCE device to a DTE device, a straight-through cable is used. To connect two DCE devices together or to connect two DTE devices together, a null modem cable is required.
  • Page 39 RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 4 Figure 4-6. RAD-80211-XD RS422/485 2-Wire and 4-Wire Connections Figure 4-7. RAD-80211-XD -WM RS422/485 2-Wire and 4-Wire Connections RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 40: Antenna Connections

    Antenna No. 2 Connection 2186A023 L I N 9 mm (for Antenna Diversity) Hex-head - 2 3 - 2 3 I N K MCX Plug 1 - X Figure 4-7. RAD-80211-XD or RAD-80211-XD-BUS Redundant Antenna Connections RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
  • Page 41 RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 4 CAUTION The maximum antenna (system) gain is restricted by the FCC (Federal Communications Commission) and ISC (Industry Science Canada). In the 2.4 GHz band, the maximum EIRP (Effective Isotropically-Radiated Power) is limited to 4 W (36 dBm). The EIRP is calculated by adding the transmit power of the radio to the system gain of the antennas and coaxial cables measured in dBm.
  • Page 42 RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 4 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 43: Programming The Radio

    SNMP Configuration ....................5-9 5.10 DHCP Server ......................5-11 5.11 Configuring the RAD-80211-XD Family as an Access Point ........5-12 5.11.1 General ..................... 5-12 5.11.2 Access Point Security ................5-15 Static WEP ..................... 5-15 IEEE 802.11i and WPA Security ............. 5-16 5.11.3 MAC Address Filtering ................

  • Page 44: Configuring Your Pc To Communicate With The Radio

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 Configuring Your PC to Communicate with the Radio Note The instructions below are for Windows 2000. Other versions of Windows will be similar but not identical. You may need to be logged in as an administrator to make these settings.

  • Page 45: Viewing Device Information

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 2186A066 Figure 5-2. RAD-80211-XD Sign In Menu Note Powering multiple radios with factory default IP addresses will cause a network conflict, and incorrect parameters may be set in the radios. When programming radios for the first time, it is...

  • Page 46: General Device Information

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 2186A067 Figure 5-3. RAD-80211-XD Configuration Data General Device Information By clicking on Device Information, and then on General from the left column, the current network configuration and device version of the transceiver can be viewed. See Figure 5-4.

  • Page 47: Local Diagnostics

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 LAN Subnet Mask: A subnet mask is a bit mask used to tell how much of an IP address identifies the subnetwork the host is on and how much identifies the host.

  • Page 48: General Configuration

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 General Configuration To begin configuring the radio for a specific application, click on Configuration and then General. See Figure 5-6. 2186A070 Figure 5-6. RAD-80211-XD General Configuration Device/Host Name/Location: In this field you may enter text data to name this radio or location.

  • Page 49: Operational Mode

    Enabling Wireless Link Monitoring displays both the IP and MAC address of RAD-80211 devices only (with firmware 2.4 and higher). Figure 5-7. RAD-80211-XD Selecting Access Point, Client or Bridge Mode RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 50: Lan Configuration

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 LAN Configuration Note This configuration step can be skipped if the radio is function- ing as a repeater. Click on LAN then on IP Configuration to show the following parameters. See Figure 5-8.

  • Page 51: Snmp Configuration

    To configure SNMP, click on Configuration, LAN, SNMP Configuration. See Figure 5-9. The RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM generate SNMP traps when one of the following events occurs: - Cold start –...
  • Page 52 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 User Name: A string of up to 30 characters. Authentication Type: Indicates the algorithm used for authentication; it can be either MD5 or SHA, the latter one being the better algorithm.

  • Page 53: Dhcp Server

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.10 DHCP Server A DHCP (Dynamic Host Configuration Protocol) server provides configuration parameters to the devices on the network. This information includes IP addresses and a network mask. There can only be one DHCP server on the network. Only an AP can be configured as a DHCP server.

  • Page 54: Configuring The Rad-80211-Xd Family As An Access Point

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.11 Configuring the RAD-80211-XD Family as an Access Point 5.11.1 General To configure your access point (after selecting Access Point under Configuration, Gen- eral), select Configuration, Access Point, General. See Figure 5-11.
  • Page 55 RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 802.11b/g RF Channel Scheme Channel Number European Only European Only European Only 2.412 2.422 2.432 2.442 2.452 2.462 2.472 2.417 2.427 2.437 2.447 2.457 2.467 2.484 Channel-Center Frequencies in GHz 22 MHz...
  • Page 56 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 Advanced Settings: Use factory defaults if you are unsure of these parameters. Beacon Interval: The time interval in milliseconds in which the 802.11 beacon is transmit- ted by the AP. A higher setting decreases time for a client to connect but decreases bandwidth utilized.

  • Page 57: Access Point Security

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.11.2 Access Point Security To enable security, select Configuration, Access Point and then Security. See Figure 5-14. Static WEP Authentication Type: From the drop-down menu, select either open, shared or open/ shared (clients may employ either).

  • Page 58: Ieee 802.11I And Wpa Security

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 IEEE 802.11i and WPA Security WPA and 80211i (WPA2): Select your method of security from either WPA, or 802.11i (WPA2) or both. See Figure 5-15. WPA2 is more advanced and secure than WPA. WPA implements only a subset of the encryption algorithms used in WPA2.

  • Page 59: Mac Address Filtering

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 Pairwise Key: TKIP (Temporal Key Integrity Protocol) and AES-CCMP are available. For additional information, refer to Section 1, Paragraph 1.8.2 "WPA with TKIP/AES-CCMP Encryption". If all clients will use WPA-TKIP, select TKIP as encryption type. If all clients can use WPA-AES, select AES-CCMP.

  • Page 60: Rogue Ap Detection

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.11.4 Rogue AP Detection This feature enables you to be informed if a rogue access point has been set up and is attempting to log into your network. To enable, select Configuration, Access Point and then Rogue AP Detection.

  • Page 61: Client Configuration

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 2186A079 Figure 5-18. Advanced Settings Screen 5.12 Client Configuration 5.12.1 General To configure the client, select Configuration, Client Radio and then General. See Figure 5-19. SSID: Enter the SSID of the access point you wish to associate with.

  • Page 62: Security

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 Under "Site Survey", click on Scan. At this point the radio will do a site survey of the se- lected Wireless Mode to see what APs are present and display some basic information on each network.
  • Page 63 RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 these encryption methods, refer to the access point configuration paragraphs in Section 1. For additional information about WPA-EAP-TLS security, see Paragraph 5.11.2, Subpara- graph B. Figure 5-21. Passphrase and Encryption Method for WPA-PSK Screen Select the security type WPA-EAP-TLS from the drop-down menu.
  • Page 64 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 The certificates should be provided by your IT department or network security administrator. After completion of all text fields in Figure 5-23, click on the Update Certs button. Figure 5-23. Entering Security Titles (New or Updated) From the drop-down menu, select the encryption method.

  • Page 65: Bridge Configuration

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.13 Bridge Configuration 5.13.1 General To configure the bridge, select Configuration, Bridge Radio and then General. See Figure 5-25. 2186A083 Figure 5-25. Bridge Configuration Screen Spanning Tree Protocol (IEEE 802.10): Enable this if bridge radios are configured in a ring topology.

  • Page 66: Bridge Radio Settings

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.13.2 Bridge Radio Settings To configure the bridge radio settings, select Configuration, Bridge Radio and then Radio Settings. See Figure 5-26. Set the Wireless Mode, Tx Rate, and Channel Number to match the other bridge this radio will be communicating with.

  • Page 67: Bridge Security

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 Propagation Distance: Set this according to how far apart the radios will be located. This setting adjusts the amount of time a radio will wait to receive a transmission due to propaga- tion delay as it increases with distance.

  • Page 68: I/O Ports

    See Figure 5-28. This mode must be enabled to communicate with the I/O modules on a RAD-80211-XD-BUS radio. In Bridge mode, only one radio may be configured as the gateway. Under “Modbus TCP Parameters”, select 502 as the Port Number.

  • Page 69: Serial Ports

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.14.2 Serial Ports There are two independent serial channels available that allow use of the two physical serial ports on each radio (RS232 and a RS485/422 port). See Figure 5-29. The serial port function varies depending on the radio mode of operation.

  • Page 70: Plc Interface (Rad-80211-Xd-Bus Only)

    RAD-80211-XD-WM User Manual – Section 5 5.14.3 PLC Interface (RAD-80211-XD-BUS only) The RAD-80211-XD-BUS radios allow up to 8 RAD I/O modules to be controlled by a Modbus (RTU or TCP) based PLC/PC (or other Modbus Master device). The PLC interface page is used to configure communication parameters associated with the use of the RAD I/O.

  • Page 71: Store And Retrieve Settings

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.16 Store and Retrieve Settings This menu allows you to load the factory default parameters, save your configuration param- eters to your PCs hard drive and send the configuration to the radio. To access these functions, select Configuration, Store Retrieve Settings.

  • Page 72: Performance

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.17 Performance Several aspects of the device’s performance can be monitored. See Figure 5-32 LAN Performance provides information on how the Ethernet network is operating. The Radio Performance section offers data on how well the information is being transmitted over the air.

  • Page 73: Maintenance

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.18 Maintenance You can Register for Updates and have an e-mail message sent to you if there are any firmware upgrades available. Under the Software Updates submenu you can view the current version of firmware and install a new version.

  • Page 74: Monitoring/Reports

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 5 5.19 Monitoring/Reports This menu allows viewing of the Web Access Log, Bridging Status, Site Map, System Log, and if you are operating in AP mode, you can also access AP Client List, Adjacent AP List and DHCP Server Status.

  • Page 75: Rad I/O Communications (Rad-80211-Xd-Bus Only)

    6.1.2 System Overview ..................6-2 6.1.3 I/O System Configuration Overview ............6-2 6.1.4 Configuring RAD-80211-XD-BUS Radios Connected to I/O ....... 6-3 6.1.5 Configuring RAD 80211 Family Radios Connected to the PLC /Modbus Master ......................6-6 I/O Module Descriptions ..................6-7 6.2.1...

  • Page 76: System Overview

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 If the serial stream is assigned to I/O modules on a RAD-80211-XD-BUS and the Modbus node address of the radio matches that in the packet, a standard Modbus RTU response packet will be generated. The analog I/O values are stored in the 4xxxx registers, the digital input values are stored in the 1xxxx series registers, and the digital outputs are controlled by writing to the 0xxxx registers.

  • Page 77: Configuring Rad-80211-Xd-Bus Radios Connected To I/O

    When the I/O is used as a stand-alone remote I/O station, the radio is typically configured as a client. d. If the PLC/Modbus master connects to a RAD-80211-XD-BUS radio in order to use its I/O as additional locally mounted I/O, the radio can be configured as a wireless access point or a bridge mode.
  • Page 78 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 2. Set PLC Emulation Mode. To enable communications between the RAD I/O and a Modbus based master, the PLC Emulation mode must be set to MODBUS. 3. Enter the PLC Address.
  • Page 79 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 Duplicate I/O Addresses: CAUTION If I/O modules are installed with duplicate addresses (rotary switch settings), the I/O data will be erroneous. When installing or changing I/O modules, ensure that the status LED’s indicate a valid I/O configuration before reading or writing data to the I/O.

  • Page 80: Configuring Rad 80211 Family Radios Connected To The Plc /Modbus Master

    1. Configure the serial ports physical parameters (baud rate, stop bits, etc.). Refer to Section 5, Paragraph 5.14.2. 2. Configure the RAD-80211-XD-BUS communications stream to the same communica- tions stream as that used by the RAD-80211-XD-BUS unit's I/O. Refer to Section 5, Paragraph 5.14.2. Configuration When Connecting to a Modbus TCP Ethernet Master Controller Modbus TCP master devices connect to the Ethernet port on the radio.

  • Page 81: I/O Module Descriptions

    I/O module. They feature an 8-position rotary switch on the top of each module for addressing. Figure 6-4. I/O Modules Used with the RAD-80211-XD-BUS Analog Input Module – RAD-IN-4A-I This module has four (4) 0-22 mA current inputs. It can either accept powered loops or provide the power for a loop.

  • Page 82: Connecting And Configuring The I/O Modules

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 Analog/Digital I/O Module – RAD-IN+OUT-2D-1A-I This module has a mix of inputs and outputs – 1 analog input, 1 analog output, 2 discrete inputs and 2 discrete outputs. Internally there are DIP switches that determine the fail condition of the outputs in a similar fashion as described in the above modules.
  • Page 83 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 Table 6-1. MODBUS Memory Map RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
  • Page 84 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 Table 6-2. Modbus Pulse Memory Map 40000 Module #1 Input 1 Value Control Bit Module #1 Input 1 LSW Value Module #1 Input 2 Value Control Bit Module #1 Input 1 MSW Value (Pulse mode only)
  • Page 85 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 Table 6-2. Modbus Pulse Memory Map (continued) Module #4 Input 1 LSW Value Store (Pulse mode only) Module #4 Input 1 MSW Value Store (Pulse mode only) Module #4 Input 2 LSW Value...
  • Page 86 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 Table 6-2. Modbus Pulse Memory Map (continued) Module #7 Input 2 MSW Value (Pulse mode only) Module #7 Input 2 LSW Value Store (Pulse mode only) Module #7 Input 2 MSW Value Store (Pulse mode only)

  • Page 87: Rotary Switches

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 Rotary Switches On the top of each I/O module is an 8-position rotary switch. See Figure 6-5. In the address maps above there are references to module numbers. These module numbers refer to the position of the rotary switch.

  • Page 88: Pulse Input Channels

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 6.5.3 Pulse Input Channels If the input channel is set to frequency mode, the value displayed in the corresponding register will be the input signal frequency in Hz (0-32 kHz). If the pulse input channel is set to counter mode, each channel will have a 32-bit register (two consecutive 16-bit registers) assigned to it.
  • Page 89 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 Differential Mode Pulses produced = New pulse count In differential mode, the number of pulses produced is equal to each new value written to the pulse output register. For example, if a value of 10 was written to the pulse output register, 10 pulses would be produced.

  • Page 90: Wiring And Fail Condition Dip Switches For The I/O Modules

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 Wiring and Fail Condition DIP Switches for the I/O Modules 6.6.1 Analog Input Module If using the Analog Input Module, use the wiring diagram shown in Figure 6-6. Figure 6-6. Wiring Diagram Using RAD-IN-4A-I Analog Input Module 6-16 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...

  • Page 91: Digital Input Module

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 6.6.2 Digital Input Module If using a Digital (Discrete) Input Module, use the wiring diagram shown in Figure 6-7. Figure 6-7. Wiring Diagram Using RAD-IN-8D Digital Input Module 6-17 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...

  • Page 92: Analog Output Module

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 6.6.3 Analog Output Module If using the Analog Output Module, use the wiring diagram shown in Figure 6-8. Inside of the Analog Output Module are DIP switches that allow the user to determine the status of each channel if the RF link is lost.

  • Page 93: Digital Output Module

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 6.6.4 Digital Output Module If using the Digital Output Module, use the wiring diagram shown in Figure 6-9. Inside of the Digital Output Module are DIP switches that allow the user to determine the status of each channel if the RF link is lost.

  • Page 94: Combination Input/Output Module

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 6.6.5 Combination Input/Output Module If using the Combo Module, use the wiring diagram shown in Figure 6-10. Inside of the Combo Module are DIP switches that allow the user to determine the status of each channel if the RF link is lost.

  • Page 95: Digital Pulse Input Module

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 6.6.6 Digital Pulse Input Module The Digital Pulse Input Module is designed to accept pulse signals from many different types of devices. See Figure 6-11. Figure 6-11. Wiring Diagram Using RAD-IN-2D-CNT Pulse Input Module Backup Power The Digital Pulse Input Module will retain its pulse count if power is removed;...
  • Page 96 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 DIP-Switch Settings Refer to Figure 6-10 for DIP-switch configurations. AC/DC Coupling Set the jumper to AC Coupling if the pulse voltage will never drop below 3.6 V with respect to the transceiver's power supply negative. This would apply where there is a DC bias voltage added to the pulse input voltage, where the DC bias exceeds 3.6...
  • Page 97 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 Diagnostic LEDs There are four diagnostic LEDs on the Digital Pulse Input Module. See Figure 6-12 for the meaning of each LED. Figure 6-12. Description of RAD-IN-2CNT Digital Pulse Input Module LEDs 6-23 RSPSupply - 1-888-532-2706 - www.RSPSupply.com...

  • Page 98: Digital Pulse Output Module

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 6.6.7 Digital Pulse Output Module The Digital Pulse Output Module is designed to accurately reproduce pulse counts or frequency outputs from data contained in PLC registers. See Figure 6-13. It is compatible with mechanical relays and electronic pulse input devices.
  • Page 99 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 6 DIP-Switch Settings The DIP-switch settings listed below are applicable for both channel 1 and channel 2. Refer to Figure 6-10 for DIP-switch configurations. Counter/Frequency Mode When counter mode is selected, the module will output a specific number of pulses as determined by the PLC value written to it.

  • Page 100: Accessing The Xml File

    Accessing the XML file To access the read-only XML file containing the status of the I/O modules, do the following: 1. Open a web browser and enter the IP address of the RAD-80211-XD-BUS with con- nected I/O modules. 2. Log onto the radio using the appropriate password. Then click the link on the left-hand menu to view the file.

  • Page 101: Radio Troubleshooting

    LED Indicators 7.1.1 RAD-80211-XD and RAD-80211-XD-BUS Figure 7-1 defines the LED indicator meanings for the RAD-80211-XD and RAD-80211-XD- BUS Radios. Figure 7-2 defines the LED indicator meanings for the RAD-80211-XD-WM. Figure 7-1. RAD-80211-XD and RAD-80211-XD-BUS LED Descriptions RSPSupply - 1-888-532-2706 - www.RSPSupply.com...

  • Page 102: Rad-80211-Xd And Rad-80211-Xd-Bus

    RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 7 7.1.2 RAD-80211-XD-WM Figure 7-2 defines the LED indicator meanings for the RAD-80211-XD-WM. These LEDs can assist you in troubleshooting the radio. Figure 7-2. RAD-80211-XD-WM LED Descriptions RSSI (Received Signal Strength Indicator) The RSSI test point will provide a measure of how strong the received radio signal is at each client or bridge.

  • Page 103: Rad-80211-Xd-Wm

    0201663 for insulating sleeve). 7.2.2 RAD-80211-XD-WM On the model RAD-80211-XD-WM, the positive connection is made on the RSSI test point and the negative lead is connected to the bolt under the antenna on the right side of the unit. See Figure 7-4.

  • Page 104: General Troubleshooting

    The most practical method of troubleshooting a system is to lay all of the components out on a table, such that all radios are within 10 feet of each other. This way there will be a strong Table 7-1. RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM Troubleshooting Procedures RSPSupply - 1-888-532-2706 - www.RSPSupply.com...

  • Page 105: Resetting The Ip Address

    2 and 3 on the DB9 RS232 port. Reconnect power. Once startup is complete, remove the jumper. For Technical Support, contact Phoenix Contact Technical Service. 800-322-3225 Please have the model number of your radio available.
  • Page 106 RAD-802.11-XD, RAD-802.11-XD-BUS and RAD-802.11-XD-WM User Manual – Section 7 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 107: Dimensions

    Technical Data Section 8 Contents Dimensions ......................8-1 Specifications ......................8-2 Dimensions Figure 8-1 and Figure 8-2 provide the basic dimensions of the RAD-80211-XD, RAD-80211- XD-BUS and RAD-80211-XD-WM transceivers. Figure 8-1. RAD-80211-XD-WM Transceiver Dimensions RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 108: Specifications

    Figure 8-2. RAD-80211-XD and RAD-80211-XD-BUS Transceiver Dimensions Specifications Table 8-1 provides general wireless specifications applicable to the RAD-80211-XD, RAD- 80211-XD-BUS and RAD-80211-XD-WM transceivers. Tables 8-2, 8-3 adn 8-4 provide specifications applicable to a specific transceiver. Table 8-1. General Wireless Specifications RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
  • Page 109 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 8 Table 8-2. RAD-80211-XD and RAD-80211-XD-BUS Wireless Specifications Table 8-3. RAD-80211-XD-WM Wireless Specifications RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
  • Page 110 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 8 Table 8-4. RSSI Voltage and dBm Data for Adjusting Antenna Direction Using Signal Strength RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 111: Ordering Information

    Additional Parts and Accessories ................9-4 RAD-80211-XD and RAD-80211-XD-BUS Parts and Assemblies Figure 9-1 shows the various parts and assemblies applicable to the RAD-80211-XD and RAD-80211-XD-BUS radios. Table 9-1 lists the part number and description for each item identified in Figure 9-1.

  • Page 112: Rad-80211-Xd-Wm Parts And Assemblies

    Table 9-1. Parts List for Figure 9-1. RAD-80211-XD-WM Parts and Assemblies Figure 9-2 shows the various parts and assemblies applicable to the RAD-80211-XD-WM radio. Table 9-2 lists the part number and description for each item identified in Figure 9-2. Figure 9-2. Parts and Assemblies for the RAD-80211-XD-WM Radio RSPSupply - 1-888-532-2706 - www.RSPSupply.com...
  • Page 113 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 9 Table 9-2. Parts List for Figure 9-2. RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 114: Additional Parts And Accessories

    Additional Parts and Accessories Tables 9-3 and 9-4 lists parts and accessories that are available for use with the RAD- 80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM radios. You can find more products, accessories, guides, system configurators, etc. for wireless solutions by visiting our website at: www.phoenixcontact.com...
  • Page 115 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 9 Table 9-4. Additional Cables and Adapters RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
  • Page 116 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Section 9 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...

  • Page 117: Valid Ip Parameters

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual, Appendix A APPENDIX Structure of IP Addresses Appendix A Contents Valid IP Parameters ....................A-1 A.1.1 Valid IP Addresses are: ................A-1 A.1.2 Valid Subnet Masks are: ................A-1 A.1.3 Default Gateway/Router: ................A-1 Assigning IP Addresses ...................
  • Page 118 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual, Appendix A With binary representation of the IP address, the network class is represented by the first bits. The key factor is the number of “ones” before the first “zero.” The assignment of classes is shown in Table A-1. The empty cells in the table are not relevant to the network class and are already used for the network address.

  • Page 119: Special Ip Addresses For Special Applications

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual, Appendix A Possible Address Combinations 7 Bits 24 Bits Class A Network ID Host ID 0.0.0.0 - 127.255.255.255 14 Bits 16 Bits Class B Network ID Host ID 28.0.0.0 - 191.255.255.255 21 Bits 8 Bits...

  • Page 120: Value 255 In The Byte

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual, Appendix A A.2.2 Value 255 in the Byte Value 255 is defined as a broadcast address. The telegram is sent to all the PCs that are in the same part of the network. Examples: 004.255.255.255, 198.2.7.255 or 255.255.255.255 (all the PCs in all the networks).
  • Page 121 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual, Appendix A Application If ANDing the address bits gives the local network address and the local subnetwork address, the device is located in the local network. If ANDing gives a different result, the data tele- gram is sent to the subnetwork router.

  • Page 122: Examples For Subnet Masks And Computer Bits (See Figure

    RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual, Appendix A A.2.4 Examples for Subnet Masks and Computer Bits (See Figure A-4) Subnet Mask Computer/Host ID 255.255.255.252 2 Bits 255.255.255.248 3 Bits 255.255.255.240 4 Bits 255.255.255.224 5 Bits 255.255.255.192 6 Bits 255.255.255.128 7 Bits 255.255.2545.0...

  • Page 123: Appendix B Glossary

    RAD-802.11-XD, RAD-80211-XD-BUS and RAD-802.11-XD-WM User Manual – Appendix B APPENDIX Glossary 802.11a - An IEEE wireless networking standard that specifies a maximum data rate of 54 Mbps, OFDM modulation and an operating frequency of 5GHz. 802.11b - An IEEE wireless networking standard that specifies a maximum data transfer rate of 11 Mbps, DSSS modulation and an operating frequency of 2.4GHz.
  • Page 124 RAD-80211-XD, RAD-80211-XD-BUS and RAD-802.11-XD-WM User Manual – Appendix B CSMA/CA (Carrier Sense Multiple Access/Collision Avoidance) - A method of data transfer that is used to prevent data collisions. CTS (Clear To Send) - A signal sent by a wireless device, signifying that it is ready to receive data.
  • Page 125 RAD-802.11-XD, RAD-80211-XD-BUS and RAD-802.11-XD-WM User Manual – Appendix B Gateway - A device that interconnects networks with different, incompatible communications protocols. Half Duplex - Data transmission that can occur in two directions over a single line, but only one direction at a time.
  • Page 126 RAD-80211-XD, RAD-80211-XD-BUS and RAD-802.11-XD-WM User Manual – Appendix B Network - A series of computers or devices connected for the purpose of data sharing, storage, and/or transmission between users. Node - A network junction or connection point, typically a computer or work station.
  • Page 127 RAD-802.11-XD, RAD-80211-XD-BUS and RAD-802.11-XD-WM User Manual – Appendix B Server - Any computer whose function in a network is to provide user access to files, print- ing, communications and other services. SPI (Stateful Packet Inspection) Firewall - A technology that inspects every incoming packet of information before allowing it to enter the network.
  • Page 128 RAD-80211-XD, RAD-80211-XD-BUS and RAD-802.11-XD-WM User Manual – Appendix B WAN - (Wide Area Network) - A network that provides communication services between devices in a geographic area larger than that served by a local area network or a metropolitan area network. A WAN may use or provide public communication facilities.
  • Page 129 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Appendix C APPENDIX Mounting Template for RAD-80211-XD-WM RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
  • Page 130 RAD-80211-XD, RAD-80211-XD-BUS and RAD-80211-XD-WM User Manual – Appendix C RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
  • Page 131 RAD-80211-XD, RAD-80211-XD-BUS and RAD-802.11-XD-WM User Manual RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
  • Page 132 RSPSupply - 1-888-532-2706 - www.RSPSupply.com http://www.RSPSupply.com/p-12973-Phoenix-Contact-2885715-Radio-Ethernet-2.4-GHz-RAD-80211-Radio.aspx...
