Brivo ACS100
Installation Manual
Legal Disclaimers ............................................................................ 2
Introduction ..................................................................................... 4
Understand the function of the ACS100 ...................................... 6
Understand ACS100 product compatibility ................................. 6
Verify client site is ready for installation ...................................... 6
Verify shipping contents ................................................................ 7
Planning the installation ................................................................ 7
Follow safety precautions .............................................................. 8
Assemble and mount ACS100 ....................................................... 9
If not using PoE ............................................................................. 11
Wiring the ACS100 ........................................................................ 12
Grounding the ACS100 ................................................................. 15
Powering the ACS100 ................................................................... 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACS100 and is the answer not in the manual?

Questions and answers

Related Manuals for Brivo ACS100

Summary of Contents for Brivo ACS100

  • Page 1: Table Of Contents

    If not using PoE ................11 Wiring the ACS100 ................ 12 Wiring Grounding the ACS100 ..............15 Powering the ACS100 ..............15 Configuration Connecting to the ACS100 via local area network ....16 Verify connection of ACS100 to local area network ....16...

  • Page 2: Legal Disclaimers

    Underwriter Laboratories (UL) Compliance The ACS100 complies with the UL 294 Standard for access control units. Canada-Underwriters Laboratories (C-UL) Compliancy (CSA C22.2 No. 205) For C-UL Listed applications, the unit shall be installed in accordance with Part 1 of the Canadian Electrical Code.
  • Page 3 Brivo Systems LLC. The information contained within this document or within the product itself is considered the exclusive property of Brivo Systems LLC. All information in this document or within the hardware and software product themselves is protected by the copyright and/or other intellectual property laws of the United States.

  • Page 4: Introduction

    (Installers) who are responsible for installing the ACS100 at client sites. The manual is also intended for IT personnel, who should use it in conjunction with the Brivo Onair Administrator’s Manual. It may be used by dealers and their sales professionals to help them conduct pre-sales, and to provide client support during the installation process.
  • Page 5 ACS100 Data Sheet · Panel Networking Admin Interface Guide · Approved Wiegand and OSDP Reader List · Brivo Onair Account Quick Start Guide · Technical Support: 1-866-BRIVO-4-U · www.brivo.com © 2020 Brivo Systems LLC. All rights reserved. P-MAN-PUB-Brivo ACS100 Installation Manual...

  • Page 6: Understand The Function Of The Acs100

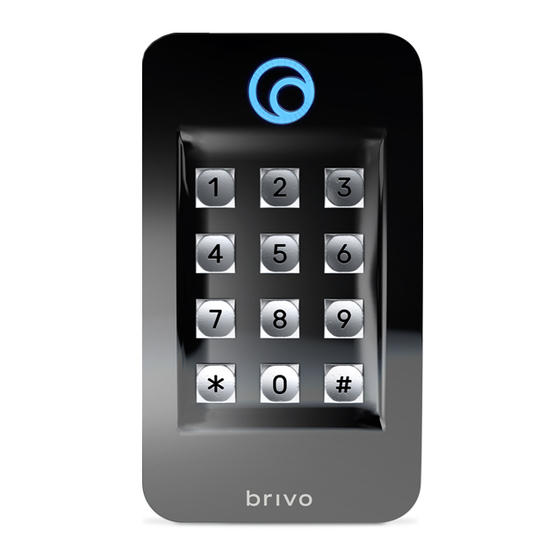

    Understand the function of the Brivo ACS100-E control panel. The ACS100-E is a one door control panel with a single access point. This control panel is considered a standalone system. The control board has one reader on-board. A second reader is supported for single door in/out antipassback configurations.

  • Page 7: Verify Shipping Contents

    Plan your installation. Decide where to install the ACS100. If not using Power Over Ethernet (PoE), do not place the ACS100 more than 100 feet from the transformer. This is the maximum cable run allowed by most external power supplies.

  • Page 8: Follow Safety Precautions

    AC Mains and the transformer. · Unit is for indoor and outdoor use. · Power wiring attached to the ACS100 unit should be 22 AWG or larger. · Category 5 cabling is the minimum performance category recommended. · Do not connect to a receptacle controlled by a switch.

  • Page 9: Assemble And Mount Acs100

    Assemble and mount ACS100. Mount the ACS100 unit using one of the two methods described below. If using ACS100 mullion: Use two bolts on the back of the ACS100 unit to mount the ACS100 unit securely in place. ACS100 Mullion Mounting ©...
  • Page 10 Brivo ACS100 Installation Manual If using ACS100 full size or keypad: Looking at the back of the ACS100 unit, use two bolts to mount the ACS100 unit to a junction box. ACS100 Full Size or Keypad Mounting If mounting the ACS100 unit on an exterior wall surface that will receive rain or moisture, run a bead of sealant around the back edge of the unit where it meets the walls.

  • Page 11: If Not Using Poe

    OPTIONAL: If not using Power over Ethernet, wire the 12 V In (Orange) and Ground (Black) wires to an external 12 VDC Power Supply Use 18 AWG wire (minimum grade) to connect the appropriate input power wires to the ACS100 unit.

  • Page 12: Wiring The Acs100

    Provided below is a Wire Block diagram for the ACS100 unit. NOTE: The ACS100 has a pair of RS-485 wires for connecting an optional external OSDP Reader. The ACS100 can support one wired lock with up to two readers (one internal and one optional external).
  • Page 13 Using the output 12VDC and the Switched Ground, Door Strikes and Magnetic Locks can be directly powered. In the use case of a Door Strike, the strike is connected to the ACS100’s 12 VDC and the Switched Ground. The Switched Ground can be configured as Normally Open (Normal) or Normally C losed (Energized) depending on the lock utilized.
  • Page 14 Brivo ACS100 Installation Manual Connect the ACS100 12 V Out (Red) to the positive side of the Door Lock Relay. Connect the ACS100 Switched Ground (Brown) to the negative side of the Door Lock Relay. Wire the AUXILIARY INPUT (AUX) There are three (3) Supervised Inputs: Request To Exit (REX), Door Contact (DC), and Auxiliary Input (AUX).

  • Page 15: Grounding The Acs100

    Brivo ACS100 Installation Manual IMPORTANT RS-485 WIRING INFORMATION NOTE: If the external OSDP reader is a significant distance from the ACS100 unit, then it is recommended that both ends of the RS-485 bus are terminated using a 120 ohm resistor.

  • Page 16: Connecting To The Acs100 Via Local Area Network

    Using CAT5 cable, connect the LAN to the ACS100 unit via its LAN port. The LAN port is a 10/100 Ethernet interface with an RJ45 jack for connecting the Ethernet port on the back of the ACS100 to a Local Area Network in order for it to gain connectivity to the Internet.
