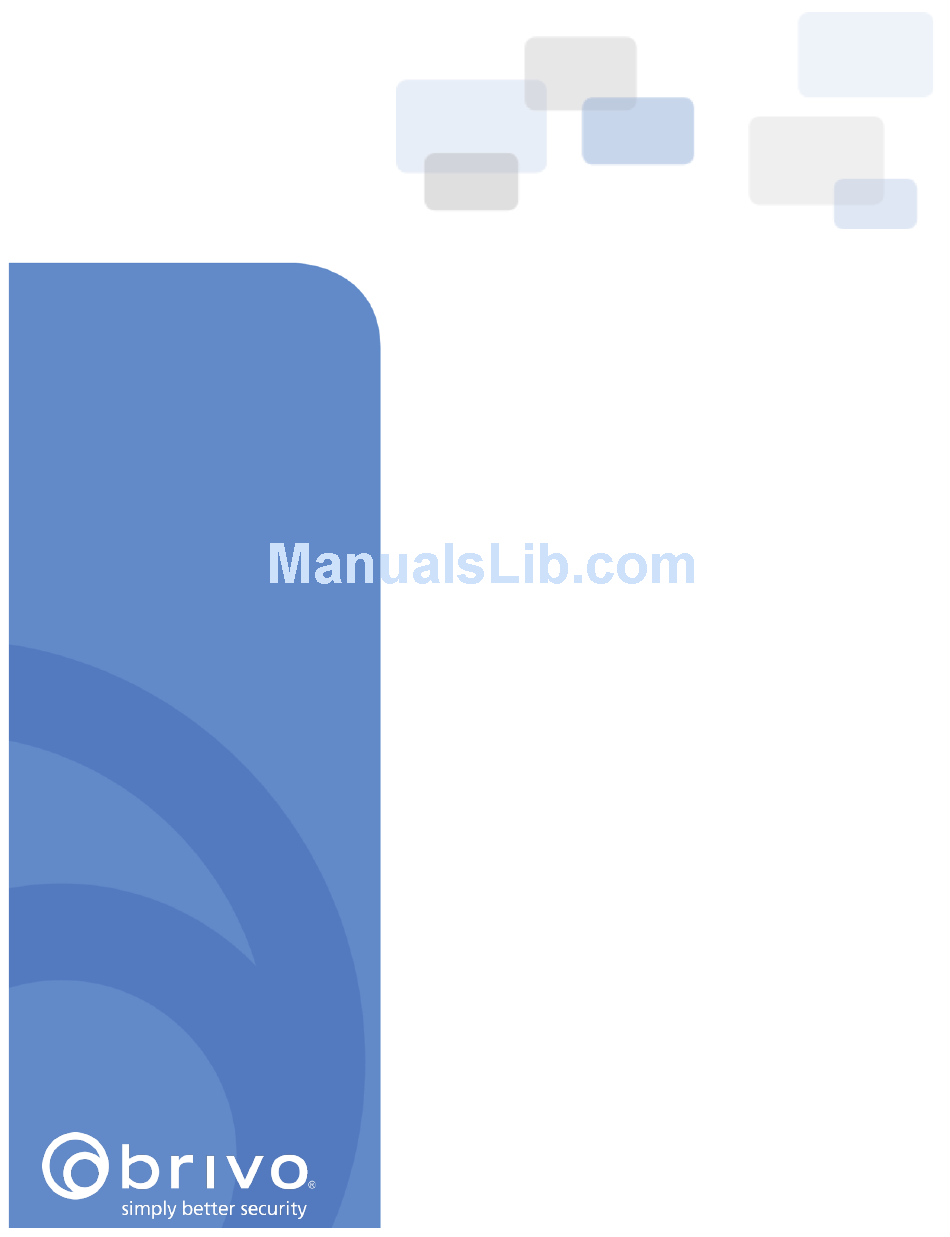

Page 1: Installation Manual
ACS5000 Panel (A/E/S) Installation Manual Rev 1 ENG-DOC-003... - Page 2 United States. Activation of Services Agreement Any use of this product is subject to the activation of the Brivo Systems LLC., Services Agreement. Please request a copy from Brivo Systems LLC., and review this agreement carefully.
-
Page 3: Table Of Contents
Page 3 Table of Contents INTRODUCTION ............................4 PRE-INSTALLATION PROCEDURES ......................6 FOR ACS5000-E PANELS USING THE BRIVO CELLULAR NETWORK ROUTER ........12 GENERAL ASSEMBLY PROCEDURES ..................... 13 POWERING AND TESTING PROCEDURES ....................18 INSTALLATION PROCEDURES ......................... 20 © 2017 Brivo Systems LLC. All rights reserved. -
Page 4: Introduction
INPUT OUTPUT BOARDs (for a total maximum of 15 boards). • Access control system (ACS). The complete interaction between a control panel, the Brivo product (OnAir, OnSite, or OnSite Server) and in the case of Brivo OnAir, the Brivo OnAir cloud server. • Brivo OnAir Brivo’s cloud based software application which enables the end user to manage his or... - Page 5 Brivo OnAir Quick Start Guide • Brivo Cellular Network Router Configuration Guide • Brivo OnSite Quick Start Guide • Brivo OnSite Server Quick Start Guide • Technical Support: 1-866-BRIVO-4-U • www.brivo.com © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
-
Page 6: Pre-Installation Procedures
ACS5000 Installation Manual Page 6 Pre-Installation Procedures Before you begin installing the Brivo control panel, perform the following tasks to ensure a safe, speedy, and successful installation. Understand the function of the Brivo ACS5000 control panel (A/E/S). The ACS5000-E, ACS5000-A, and ACS5000-S are four (4) reader control panels with multiple access points (up to four readers per chassis). - Page 7 Page 7 Verify that the client site is ready to support the installation. 1. Check with the IT department to ensure that the ACS5000 to be installed is compatible with the company’s local area network (LAN). a) The ACS5000 is equipped with a standard RJ-45 socket that accepts a CAT5 cable with an RJ-45 plug on any 10/100 Ethernet network.
- Page 8 5. If additional DOOR BOARDs have been ordered with the control panel, locate and check the contents of each 2-Door Board Kit (B-ACS5000-DB). There may be up to 14 of these kits (for a total of 15 including the MAIN BOARD) and each should contain the following parts: a) 1 DOOR BOARD (#1181-01-0102A).
- Page 9 8. You may download and complete the appropriate Installation Worksheets from Brivo’s website. 9. For ACS5000-E control panels using the Brivo Cellular Network Router only : If possible, verify the strength of the signal at the planned location of the Cellular Network Router.
- Page 10 Maximum Distance Calculations Calculate the distance between each chassis and its associated keypad or reader. The ACS5000 does not specify a maximum distance between the chassis and a keypad or reader, but the keypad/reader manufacturer does. Follow manufacturer guidelines for each keypad and reader.
- Page 11 Wiring methods should be in accordance with the National Electrical Code, ANSI/NFPA 70. • Category 5 cabling is the minimum performance category recommended. • If powered by 12VDC, the power supply must be a UL294 listed power supply. © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
-
Page 12: For Acs5000-E Panels Using The Brivo Cellular Network Router
ACS5000 Installation Manual Page 12 For ACS5000-E Panels using the Brivo Cellular Network Router NOTE: Please refer to the Brivo CNR Configuration Guide on the Brivo website (http://www.brivo.com/wp-content/uploads/2015/01/S-Brivo-CNR- Configuration-Guide.pdf) for step-by-step instructions on the configuration of the Brivo CNR with the ACS5000-E panel. -
Page 13: General Assembly Procedures
6. Install the tamper switch in each chassis. a) Install the tamper switch in each chassis by removing the hex collar, seating the switch inside the provided mounting bracket, and reattaching and tightening the hex collar. © 2017 Brivo Systems LLC. All rights reserved. Rev 1... - Page 14 +12V, Ground, AC, Power Detection, and Earth Ground to each board from the power supply. WARNING: Power Supply DO NOT USE ANY POWER SUPPLY OTHER THAN THOSE SUPPLIED WITH YOUR BRIVO PRODUCT. © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
- Page 15 DO NOT POWER ELECTRONIC STRIKES AND LATCHES WITH THE BATTERY (OR OTHER POWER SOURCE) USED TO POWER THE CONTROL PANEL; DOING SO WILL CAUSE DAMAGE TO THE BRIVO CONTROL PANEL. USE ONLY A UL LISTED BURGLAR ALARM OR ACCESS CONTROL SYSTEM TO POWER ELECTRONIC STRIKES AND LATCHES.
- Page 16 WARNING: Transform Connection DO NOT CONNECT THE TRANSFORMER TO A SWITCHED OUTLET OR OTHERWISE CONTROLLED AC OUTLET. DO NOT CONNECT THE TRANSFORMER TO THE 120 VAC OUTLET UNTIL ALL WIRING IS COMPLETED. © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
- Page 17 1. Use 18 AWG wire (minimum grade) to connect the screw terminals on the transformer to the 16.5 VAC POWER INPUT terminal block on the power supply board, using terminals AC1 and AC2. Figure 6. Connect AC Transformer to Power Supply © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
-
Page 18: Powering And Testing Procedures
Figure 7. MAIN BOARD Heartbeats For ACS5000-E control panels using a Brivo Cellular Network Router , make sure the Brivo Cellular Network Router is powered when connecting it to the MAIN BOARD. © 2017 Brivo Systems LLC. All rights reserved. - Page 19 NOTE: A steady light is an indication of a problem, just as much as no light is. 3. If ALL power indicators are correct, attach the back-up battery and check that ALL indicators remain the same. Only then should you go on to Installation Procedures. © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
-
Page 20: Installation Procedures
1. If there is an expansion board in the control chassis, connect it to the MAIN BOARD. Figure 9. Connect Expansion Board to MAIN BOARD 2. When dealing with expansion chassis, connect the second expansion board to the first one in each expansion chassis. © 2017 Brivo Systems LLC. All rights reserved. Rev 1... - Page 21 Wire E4 in Expansion Chassis 2 to E3 in Expansion Chassis 1. • Wire E3 to E2 in Expansion Chassis 1. • Wire E2 in Expansion Chassis 1 to E1 in the Control Chassis. • Wire E1 to the MAIN BOARD. © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
- Page 22 9. Connect the CAN NODE ADDRESS jumpers. The silkscreen next to the CAN NODE ADDRESS pins shows how to position the jumpers for first four addresses. 10. Positions for additional address values are shown in the diagram below. © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
- Page 23 The ADMIN port is a 10/100 Ethernet interface with RJ45 jack for connecting the MAIN BOARD to a laptop or PC to gain access to the local administrative interface for debug and manual configuration utilities. © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
- Page 24 Figure 15. Connect Brivo CNR to MAIN BOARD 1. Connect the Brivo CNR to the MAIN BOARD via the LAN port and follow the instructions in the Brivo CNR Configuration Guide. a. The LAN port is a 10/100 Ethernet interface with an RJ45 jack for connecting the MAIN BOARD to the Brivo CNR in order for it to gain connectivity to the Internet and the Brivo OnAir cloud server.
- Page 25 When the switch is open, the control panel interprets this input as a “Door Open” condition. When the switch is closed, the control panel interprets this input as a “Door Closed” condition. © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
- Page 26 6. Wire the Reader switches to the last block of terminals in this door node. NOTE: Refer to the Reader/Keypad Wiring Guide for Brivo approved devices and connection diagrams. a) Use the wire recommended by the manufacturer of the reader or keypad. If no wire is recommended, use a minimum of 22 AWG wire with sufficient conductors that include shield (drain).
- Page 27 18 AWG wire with sufficient strands for the specific electronic strike or latch. Wire INPUT OUTPUT BOARDs Figure 17. Wire INPUT OUTPUT BOARD © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
- Page 28 1 from the switch, while the other end is connected to the wire leading to the ACS5000 control board. e) The other wire from the ACS5000 is connected to wire 2 from the switch, as shown in Figure 18.
- Page 29 Added parts and service clarification 02/21/2017 Added UL compliance language per UL request 04/26/2017 Removed reference to the F panel and Brivo OnAir for Government P-MAN-PUB-ACS5000 A-E-F-S Installation Manual (ENG-DOC-003) © 2017 Brivo Systems LLC. All rights reserved. Rev 1...
