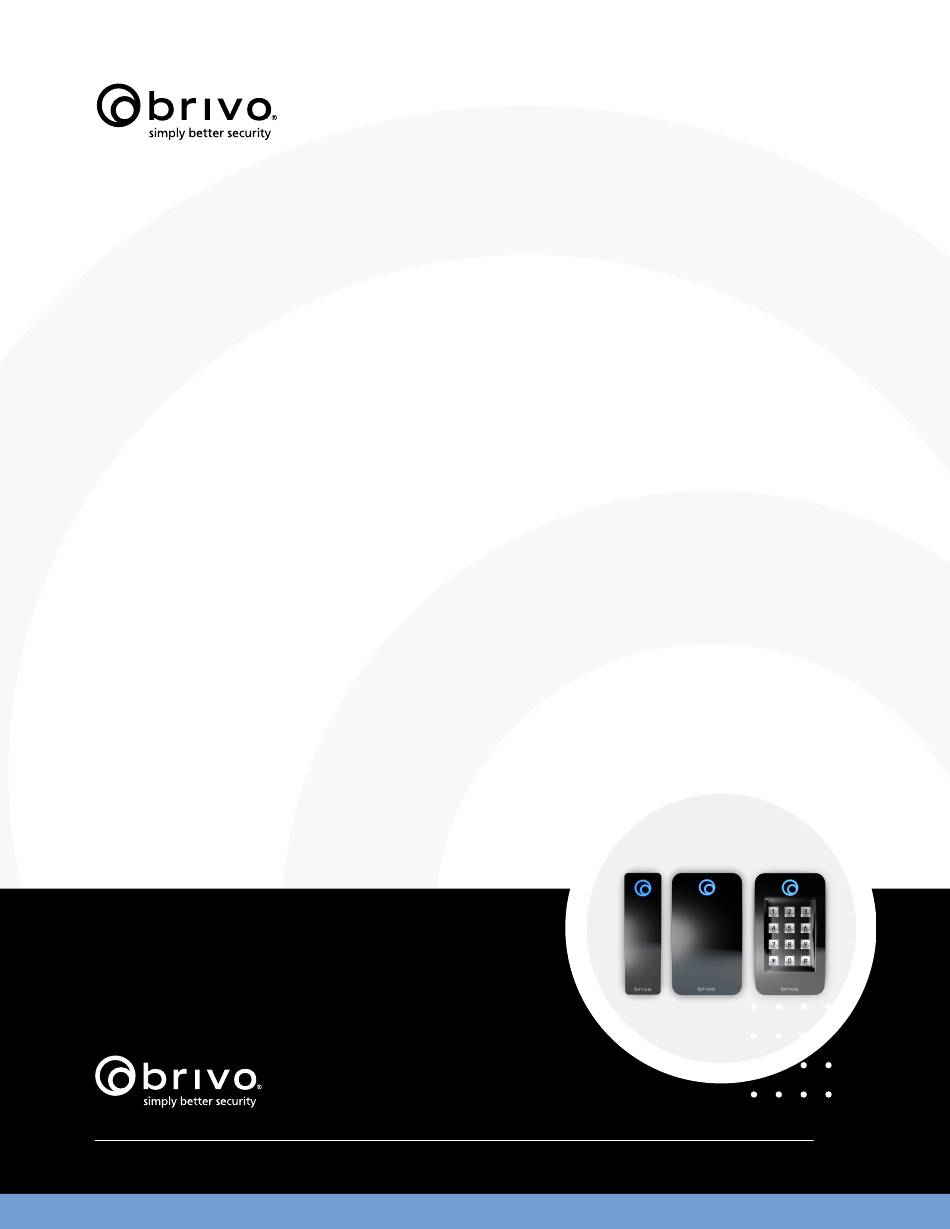

- Page 1 Brivo ACS100 Installation Guide 2024...
-
Page 2: Legal Disclaimers
Underwriter Laboratories (UL) Compliance The ACS100 complies with the UL 294 Standard for access control units. Canada-Underwriters Laboratories (C-UL) Compliancy (CSA C22.2 No. 205) For C-UL Listed applications, the unit shall be installed in accordance with Part 1 of the Canadian Electrical Code. - Page 3 © 2024 Brivo Systems LLC. All rights reserved. Brivo® is a trademark of Brivo Systems LLC. Brivo Systems LLC., 7700 Old Georgetown Road, Suite 300, Bethesda, MD 20814 © 2024 Brivo Systems LLC. All rights reserved.
-
Page 4: Table Of Contents
Table of Contents Legal Disclaimers Introduction Pre-Installation General Assembly Wiring Configuration © 2024 Brivo Systems LLC. All rights reserved. PUB-Brivo ACS100 Installation Guide_v1.6... -
Page 5: Introduction
An additional reader can be added for in/out antipass- back configurations. Reader: The ACS100 includes an integrated access control card reader. In addition, the reader has a Blue- tooth/BLE radio which constitutes a wireless credential reader compatible with BT enabled smartphones. -
Page 6: Wire Recommendations
500 ft / 150 m Additional Resources The following additional resources are available for the installer as well as the client. ACS100 Data Sheet Panel Networking Guide support.brivo.com Technical Support: 1-866-BRIVO-4-U www.brivo.com © 2024 Brivo Systems LLC. All rights reserved. PUB-Brivo ACS100 Installation Guide_v1.6... -
Page 7: Pre-Installation
(LAN). The ACS100 is equipped with a standard RJ-45 socket that accepts a CAT5 cable with an RJ-45 plug on any 10/100 Ethernet network. Physically connecting the panel is the same as plugging any computer or other device into the LAN. -
Page 8: Follow Safety Precautions
Plan your installation and decide where to install the ACS100 If not using Power Over Ethernet (PoE), do not place the ACS100 more than 100 feet from the transformer. This is the maximum cable run allowed by most external power supplies. -
Page 9: General Assembly
Mount the ACS100 unit using one of the two methods described below. If using ACS100 mullion: Use two bolts on the back of the ACS100 unit to mount the ACS100 unit securely in place. ACS100 Mounting Option One © 2024 Brivo Systems LLC. All rights reserved. - Page 10 If using ACS100 full size or keypad: Looking at the back of the ACS100 unit, use two bolts to mount the ACS100 unit to a junction box. ACS100 Full Size or Keypad Mounting If mounting the ACS100 unit on an exterior wall surface that will receive rain or moisture, run a bead of sealant around the back edge of the unit where it meets the walls.
-
Page 11: Wiring
1. Using the output 12VDC and the Switched Ground, Door Strikes and Magnetic Locks can be directly powered. In the use case of a Door Strike, the strike is connected to the ACS100’s 12 VDC and the Switched Ground. The Switched Ground can be configured as Normally Open (Normal) or Normally Closed (Energized) depending on the lock utilized. - Page 12 4. Devices which require a switched 12V trigger (low power signalling) to turn on and off the lock can configure the ACS100 to use the 12V trigger. Note that in this scenario, the Brown wire is pulled high to 12V to use as a trigger, but won’t be able to source power.
- Page 13 Status. 2. If used, wire the Aux Input using the Purple (AUX) wire and the Ground (Black) wire. The Aux Input can be used for a variety of purposes, and is programmed through the Brivo programming interface. WARNING: Noise Suppression Install the MOV across the conductors, as close as possible to the electric strike, latch, or magnetic lock.
- Page 14 2. Plug the CAT 5 cable into the LAN/PoE connector. 3. If not using PoE, plug in power to the ACS100 unit using 12 V In (Orange) and Ground (Black). 4. Confirm after a few seconds that the Brivo logo light is on.
-
Page 15: Configuration
Resetting the ACS100 to factory default An ACS100 unit goes into a factory default reset sequence when it is held upside down, powered up and the following steps are performed: 1. With the power off, hold the unit upside down. - Page 16 The LAN port is a 10/100 Ethernet interface with an RJ45 jack for connecting the Ethernet port on the back of the ACS100 to a Local Area Network in order for it to gain connectivity to the Internet. Use a straight, (i.e., non-crossover) cable to connect this port to a local hub, switch or router.
