Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
30756306
30756306
1.5
1.5
IMG-280105
IMG-280105
© Volvo Car Corporation
Part. No.
Part. No.
31285223, 31285225
31285223, 31285225

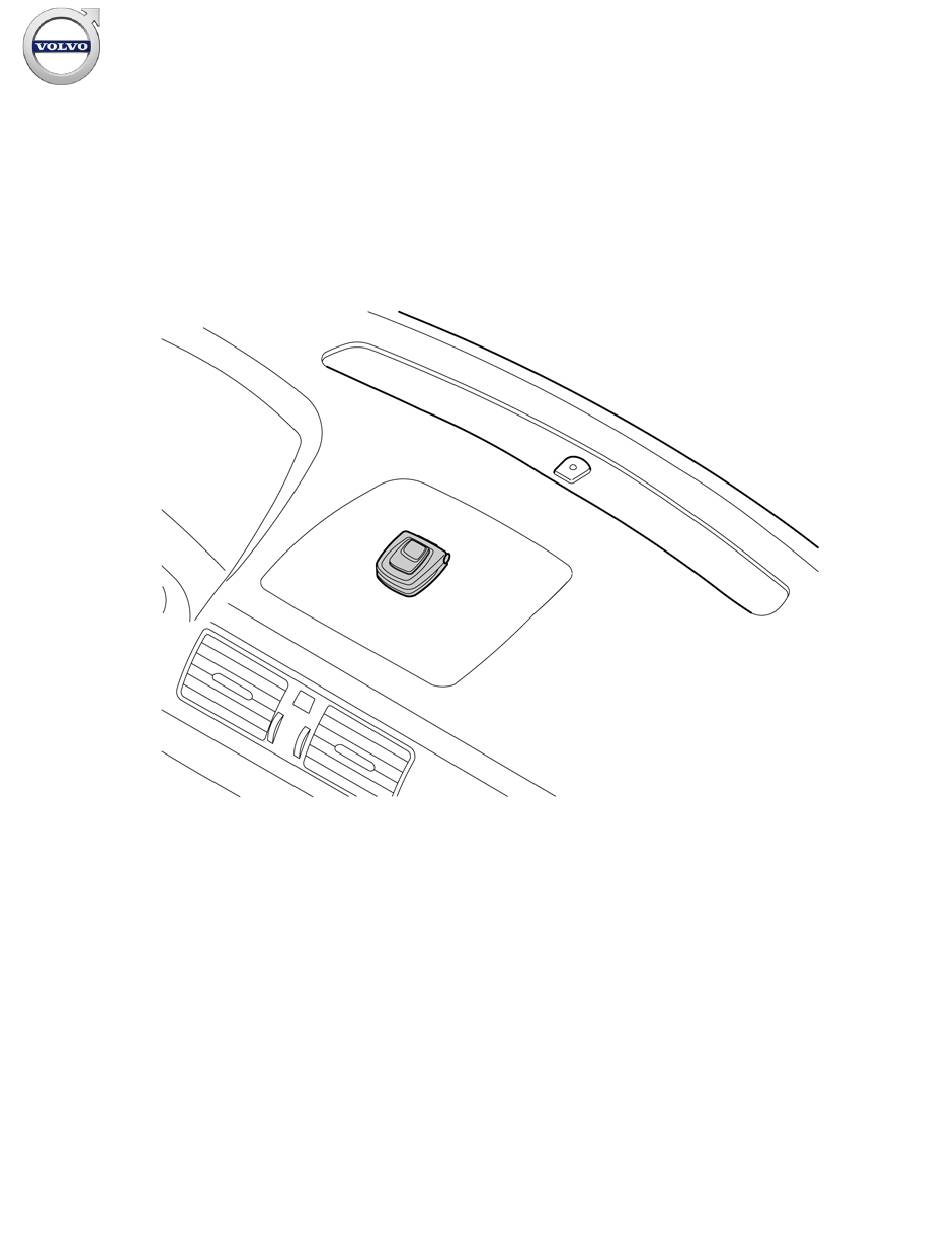

Navigation system, portable
Navigation system, portable
Navigation system, portable- 30756306 - V1.5
Page 1 / 24

Advertisement

loading
Need help?

Need help?

Do you have a question about the 31285223 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Volvo 31285223

  • Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 30756306 30756306 31285223, 31285225 31285223, 31285225 Navigation system, portable Navigation system, portable IMG-280105 IMG-280105 © Volvo Car Corporation Navigation system, portable- 30756306 - V1.5...
  • Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Equipment A0000162 IMG-282403 IMG-246925 IMG-239660 IMG-239667 IMG-240673 IMG-239681 IMG-280472 © Volvo Car Corporation Navigation system, portable- 30756306 - V1.5 Page 2 / 24...
  • Page 3 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-280106 © Volvo Car Corporation Navigation system, portable- 30756306 - V1.5 Page 3 / 24...
  • Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-213320 © Volvo Car Corporation Navigation system, portable- 30756306 - V1.5 Page 4 / 24...
  • Page 5 Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps. In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Note! For information regarding the GARMIN device, see www.garmin.com.
  • Page 6 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take special tool 9814104 (torx driver, torx 6), and unscrew the two screws holding the connector in the holder. Carefully push the connector to one side with the cable to expose the bottom of the holder.
  • Page 7 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the three screws and insert them in the spacer fully. IMG-282407 Apply pieces of butyl tape to the screws so that the screw heads do not protrude outside the spacer when installing it.
  • Page 8 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Install the spacer in the bottom of the holder. Illustration B Ensure that the holder's two screw turrets align between the small pins in the oblong holes in the spacer. A click should be heard when the spacer is securely in position.
  • Page 9 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the small torx screws and carefully tighten the connector to the holder. Ensure that the connector's circuit board is properly against the screw turret and that there is no play. Remove the butyl tape from the screws.
  • Page 10 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars with automatic gearbox Turn the ignition key to position II. Applies to all models Move the gear selector lever to its rearmost position. Use a weatherstrip and pry off the gear selector panel at the rear edge.
  • Page 11 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Remove the two screws. Remove the bracket with the A/C panel and radio from the center console. Pull from the lower edge and then downwards until it releases from the mounting at the upper edge.
  • Page 12 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A Remove the loudspeaker grille as follows: Insert the special tool, 9995919 into the joint between the loudspeaker grille and the dashboard approximately as illustrated, until it engages. Twist the tool 90° so that the bent section engages with the underneath of the loudspeaker grille.
  • Page 13 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Tape the template to the loudspeaker grille. IMG-280108 Drilling is the same on right and left-hand drive cars. Drill square to the loud speaker grille. Predrill the holes according to the template using a Ø3 mm (1/8") drill bit.
  • Page 14 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustrations A and B Turn over the loudspeaker grille and cut away some of the ribs on the underside so that the result corresponds with figure B. IMG-280112 IMG-280113 Drill up the three holes for the cradle's feet using a Ø14 mm (9/16") step drill.
  • Page 15: Installation

    Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the step drill and drill out the hole for the connection in the holder using a Ø28 mm (1 7/64") drill bit. IMG-280115 Deburr and bend in the edges using a round file.
  • Page 16 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Installation Illustration A Take three nuts, washers and the cradle from the kit and secure on the loudspeaker grille. Illustration B Tighten the cradle. IMG-280117 IMG-280118 © Volvo Car Corporation Navigation system, portable- 30756306 - V1.5...
  • Page 17 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Illustration A applies to cars up to and including model year Illustration B applies to cars from and including model year Remove the five screws. Lift up the loudspeaker and remove the connector.
  • Page 18 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take the cable harness and foam tape out of the kit. Remove the protective tape. IMG-277338 Wrap the foam tape around the fuse holder to prevent rattling. IMG-280122 © Volvo Car Corporation Navigation system, portable- 30756306 - V1.5...
  • Page 19 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Note! The cable harness is always routed on the right-hand side in the tunnel console and the center console up to the hole for the loudspeaker grille, on both right and left-hand drive cars.
  • Page 20 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Applies to cars up to and including model year 05 Remove the loudspeaker grille and loudspeaker from the kit. Secure the loudspeaker using the supplied screws. The connections on the speakers should face right.
  • Page 21 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Take out the small cable from the kit and connect it to the recently routed cable harness. IMG-280128 Take the loudspeaker and cradle. Connect the connector on the small cable to the cradle.
  • Page 22 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Insert the cable in the hole for the loudspeaker/console and push on the loudspeaker grille. IMG-280130 Secure the two green connectors using a piece of butyl tape in a suitable place to prevent rattling.
  • Page 23 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Refit the unit. Ensure the cables and relay are positioned so that they are not crushed or rub. Tighten using the existing screws. IMG-280167 IMG-239204 © Volvo Car Corporation Navigation system, portable- 30756306 - V1.5...
  • Page 24 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden IMG-279903 Turn the ignition key to position II. Reconnect the battery negative lead. IMG-242267 © Volvo Car Corporation Navigation system, portable- 30756306 - V1.5 Page 24 / 24...

This manual is also suitable for:

31285225
