The Command Access FLP-UL-M-KIT is a field-installable motorized latch-pullback kit for the Falcon 24 & 25
A.

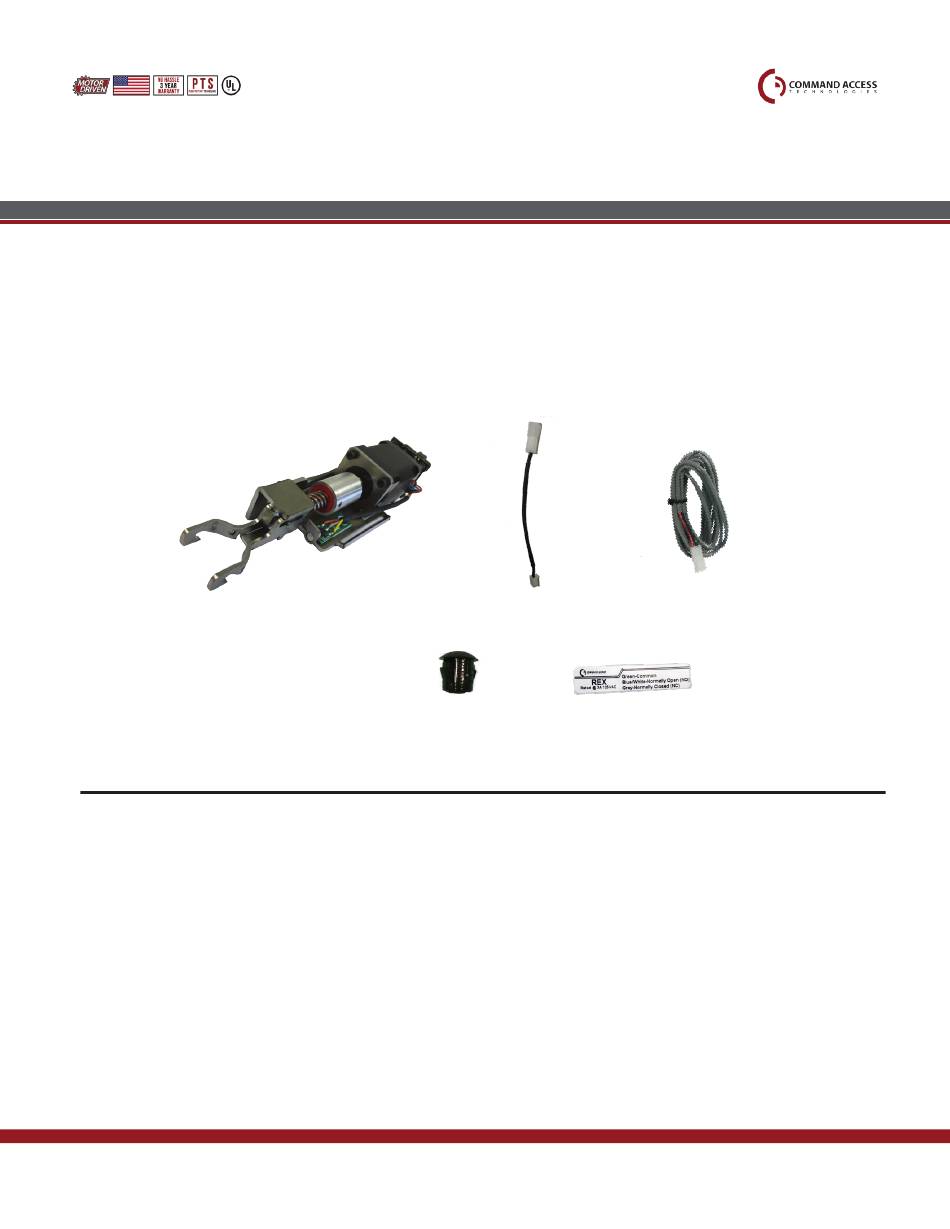

Ki t In cl u de s
A.
1- Motor Mount w/ MM4S series module
B.
1- Push & go connector
1- 8' Lead w/ VD Connector
C.
1- Dogging Hole Cap
D.
1- REX Sticker
E.
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
F L P - U L- M K I T
INSERT Instructions
series devices.
D.
B.
C.
E.
To o l s R e q ui r e d
Cordless Drill
Hammer & Pin Punch(recommend) or 3/16 drill bit
5/16 Nut driver (recommended) or Flat head screwdriver
#2 Phillips head screwdriver
# 2 0 3 8 7 _ C
Advertisement
Table of Contents
Related Manuals for Command access FLP-UL-M-KIT
Summary of Contents for Command access FLP-UL-M-KIT
- Page 1 F L P - U L- M K I T INSERT Instructions The Command Access FLP-UL-M-KIT is a field-installable motorized latch-pullback kit for the Falcon 24 & 25 series devices. Ki t In cl u de s To o l s R e q ui r e d...
- Page 2 Technical Information SPECIFICATIONS • Input Voltage: 24VDC +/- 10% mm4s switches • Wire gauge: Minimum 18 gauge • Direct wire run - no relays or access control STANDARD TORQUE units in-between power supply & module HIGH TORQUE PTS Video Click or Scan PTS PROGRAMMING on PTS PROGRAMMING LOCKED Standard Torque Mode...
- Page 3 Legend Standard Placement R ecommend ed Po w er Su ppli e s: All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. For more information click here or go to our website U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w .
- Page 4 Installation Instructions Remove (2) screws on mounting bracket with Slide housing off device exposing the baserail and 5/16” nut driver. pushpad. At the back of the baserail will be our installation with Slightly depressing the push pad and keep the the kit grabbing onto the roll pin under the push pad attaching hooks steady;...
- Page 5 CONTINUED Line up slots in motor mount to drop onto Visually confirm hooks are attached to roll pin. If not existing tabs in baserail. repeat Step B. Slide the housing back onto the baserail making sure the motor & baserail are in the correct channel.
- Page 6 CONTINUED Set PTS instructions below Next, plug in the push & go connector into the MM4S Setting PTS Step 1- Select your preferred torque mode (ships in standard torque) Press the device push pad to the desired setting. (Recommend to fully depress and release 5%, giving the device room for changing door conditions.) Step 2- While depressing the push pad, apply power.
