800 D
General information
Warnings
Description of product
Distributed by:
Use and maintenance manual
HOME JET and AMBU JET
Portable suction unit
1000 B
INDEX
page 2
page 2
page 4
Operating instructions
Maintenance and cleaning
Accessories and spare parts
1
1000 R
page 6
page 11
page 12
First edition: 04/06/13
Rev. 4: 26/08/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Spencer Home Jet 800 D
Summary of Contents for Spencer Home Jet 800 D
- Page 1 Use and maintenance manual HOME JET and AMBU JET Portable suction unit 1000 R 800 D 1000 B INDEX General information page 2 Operating instructions page 6 Warnings page 2 Maintenance and cleaning page 11 Description of product page 4 Accessories and spare parts page 12 First edition: 04/06/13...
-
Page 2: General Information
For any information regarding the use, maintenance and installation, please contact the Spencer Customer Care Service on tel. 0039 0521 541111, fax 0039 0521 541222, e-mail service@spencer.it or write to Spencer Italia S.r.l. - Strada Cavi, 7 - 43044 Collecchio (Parma) - ITALY. In order to facilitate the assistance service, please always indicate or communicate the serial number (SN) shown on the label applied on the box or on the device. - Page 3 The suction units are certified to EN 1789 when used with fixing systems Spencer inside ambulances, so it is prohibited to use still not approved by the manufacturer. Fixing systems not approved can alter the structural and functional characteristics of the device.
-
Page 4: Description Of Product

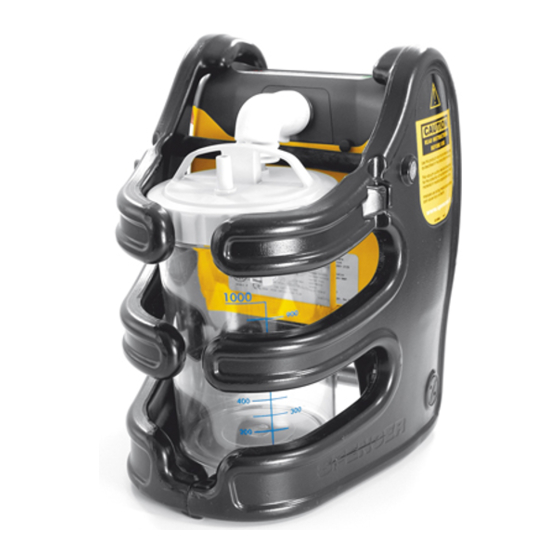

DESCRIPTION OF PRODUCT 3.1. Intended use The HOME JET and AMBU JET is a portable, electrically powered, medical suction equipment intended for field and transport use. It is intended for intermittent operation to remove secretions, blood or vomit from a patient´s airway to allow ventilation. Higher vacuum levels are generally selected for oropharyngeal suctioning, and lower vacuum levels are usually selected for tracheal suctioning and the suctioning of children and infants. - Page 5 Models This model could be modified, with reference to codes and/or descriptions without any previous notification. Code Description Characteristics SC75200D HOME JET 800D Canister single use 800ml SC75210B HOME JET 1000B Canister with bag Serres single use 1000ml SC75300D HOME JET 1000R Canister reusable 1000ml SC75500C AMBU JET P 800D 20G...
- Page 6 This is normal. If your unit does not hold a charge, check that the yellow light turns on when external power is applied with the power button “Off”. If problems persist, contact an authorized Spencer Italia S.r.l. Service Center.
- Page 7 (Fig. 8). 4. Connect the patient tubing to the aspiration catheter compatible (not supplied) according to the needs of use. For each use it is necessary to replace the filter group. Use only filters supplied by Spencer Fig. 7 Fig.
- Page 8 The automatic recharger attachment is equipped with a F 5A fuse (No. 14 paragraph 3.2) to prevent damage to the electrical system of the suction device. The attachment is equipped with automatic adjustment of contact points for recharger of suction device. When supplied the attachment has the correct setting for functioning. If adjustment is necessary contact the Spencer Srl service center. Fig. 15 Fig.
- Page 9 The automatic recharger attachment is equipped with a F 5A fuse (No. 14 paragraph 3.2) to prevent damage to the electrical system of the suction device. The attachment is equipped with automatic adjustment of contact points for recharger of suction device. When supplied the attachment has the correct setting for functioning. If adjustment is necessary contact the Spencer Srl service center. Fig. 18 Fig.
- Page 10 2. Replace it with a new filter and remount it to the suction unit Use only the Bacteria Filter provided by Spencer Italia S.r.l. or one of its Distributors. Substitution may lead to contamination of the unit and/or poor performance and will void warranty.
-
Page 11: Maintenance And Cleaning
It therefore requires to carefully read the instructions to avoid compromising the device with inappropriate use. It requires you to specify the kind of fault to give way to the technical Spencer Italy Srl to judge whether the fault falls into the category of warranty. -
Page 12: Accessories And Spare Parts
ACCESSORIES AND SPARE PARTS Accessories SC75012E Lateral Bag Jet SC73017E AC Adapter 220V SC75024 Power supply cable 12V lighter reduced pitch DG00150A Yankauer fixed cannula DG00151A Yankauer fixed cannula with control DG00212C DGX 50 CH/FG 12 aspiration catheter DG00214C DGX 50 CH/FG 14 aspiration catheter DG00216C DGX 50 CH/FG 16 aspiration catheter DG00218C... - Page 13 ATTACHMENT A – TRAINING REGISTER The product must be used by trained personnel only, having attended specific training for this device and not for similar products. Keep this document at least 10 years from the end of life of the device. Training date Training method (user’s Operator’s name...
- Page 14 Manufacturer) The information contained in this document could be modified without any warning and is not to be intended as a commitment on behalf of Spencer Italia S.r.l. Spencer products are exported to many countries and the same identical regulations are not always valid. For this reason there could be differences between the description here described and the product actually delivered.
