OM POWER OM2000+ Tuning Procedure And Part List page 3

Press OPER to enter operation mode. Apply low input power and press PTT. Be sure you selected right
BAND, TUNE and LOAD knob positions. If you made some mistake, fault message appears:
Another mistake can occur, if you have antenna connected to the wrong output. In such a case „SWR
is too high" error message appears. Change antenna output using S4 button.
Now increase input power slowly and watch the display.

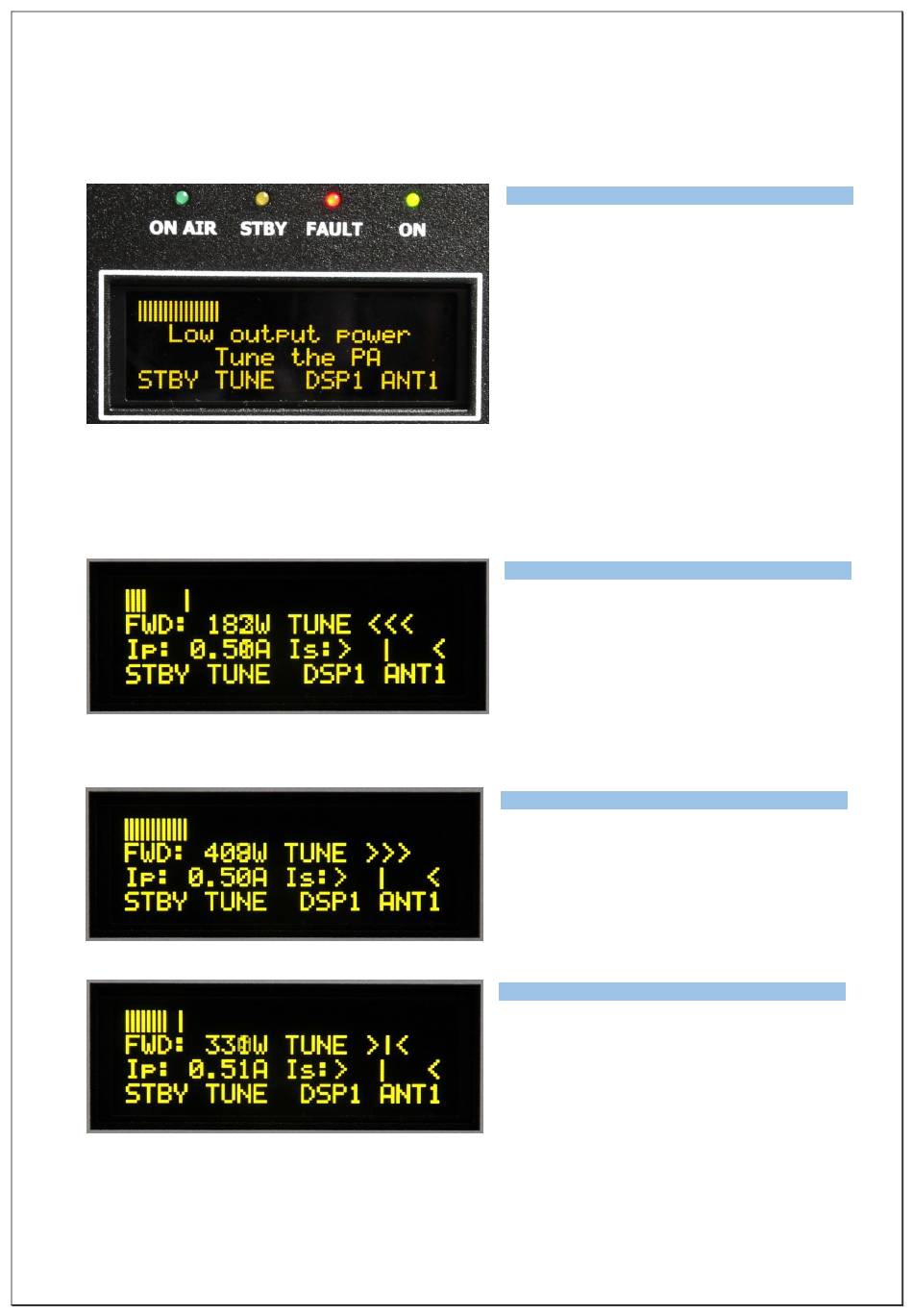

Safety circuit stopped transmitting, fault LED
Type of supported TCVR and working
is ON (Fault code 4 is saving to the memory).
frequency are visible on the display.
Release PTT, set proper positions of BAND,
TUNE and LOAD according to the table and
press PTT again.
This is not an optimal result, TUNE indicator
must go between both arrows. Use TUNE
knob to get maximum output power and
Type of supported TCVR and working
LOAD knob to get indicator between
arrows.
frequency are visible on the display.
Another example of not optimal result, TUNE
indicator must go between both arrows. Use
TUNE knob to get maximum output power
Type of supported TCVR and working
and LOAD knob to get indicator between
arrows (in arrows direction). frequency are visible on the display.
This is a good result of tuning.
Type of supported TCVR and working
frequency are visible on the display.
Exhibit 11
AUTO LED is ON.
AUTO LED is ON.
AUTO LED is ON.
AUTO LED is ON.
