1�7

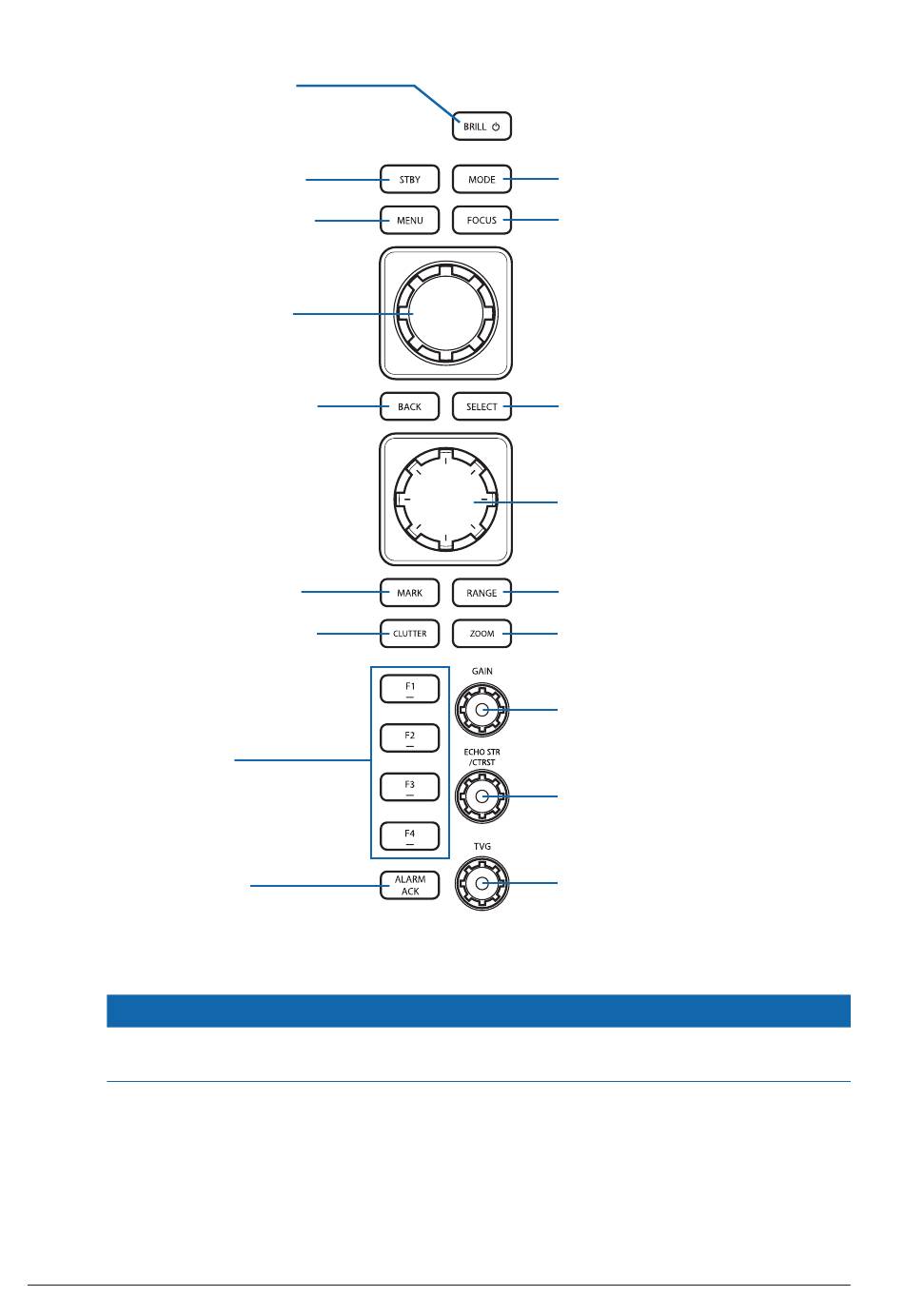

Control Panel
Press: Turns power on; adjusts
the backlight.
Hold: Turns power off.
Press: Disables or enables sonar
transmission.
Press: Opens or closes the menu.
Turn: Adjusts the range in sonar
modes; zooms in/out in
chart mode; highlights
options in menus.
Press: Returns to the previous screen.
Hold: Hides overlay data and the
depth scale.
Press: Saves own boat position
(no cursor) or the cursor
position as a waypoint.
Hold: Opens the waypoints list.
Press: Opens or closes the clutter
menu.
Press: Executes assigned
preset function.
Hold: Opens the preset
configuration menu.
Press: Acknowledges and
silences an alarm.
Hold: Opens the alarms menu.
1.8
SD Card
To prevent corrosion and damage to the device, do not open the access flap when there
are risks of water ingress.
You can use optional SD cards with the device for screen capturing, image viewing, and
software installation. Map cards allow you to view high-resolution satellite imagery and
aerial reference photos of ports, harbors, marinas, and other points of interest.
NOTE: This device supports memory cards with a storage of up to 32 GB, in FAT32 format.
1 Open the access flap below the control panel.
2 Insert an SD card to one of the two slots.
26
Press: Selects display modes.
Press: Moves focus (highlight) to
Press: Selects options; opens
Hold: Captures a screenshot to
Press: Scrolls through / highlights
Hold: Moves the cursor faster.
Press: Selects range modes.
Press: Selects zoom modes.
Turn: Adjusts gain.
Press: Opens the gain menu.
Turn: Adjust echo stretch in
Press: Opens the echo stretch menu.
Turn: Adjusts TVG.
Press: Opens the TVG menu.
NOTICE
the next option.
menu at the cursor.
an inserted SD card.
options; moves the cursor.
Traditional and Split Frequency
modes; adjusts contrast in
ClearVü and SideVü modes.
CHAPTER 1 INTRODUCTION
