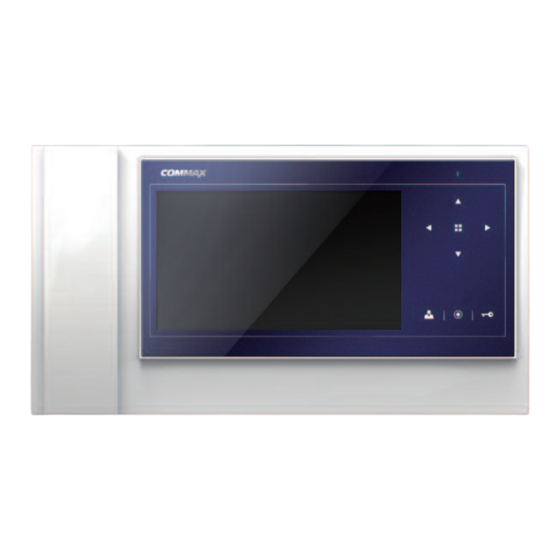

Commax CMV-77K User Manual

Color video door phone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

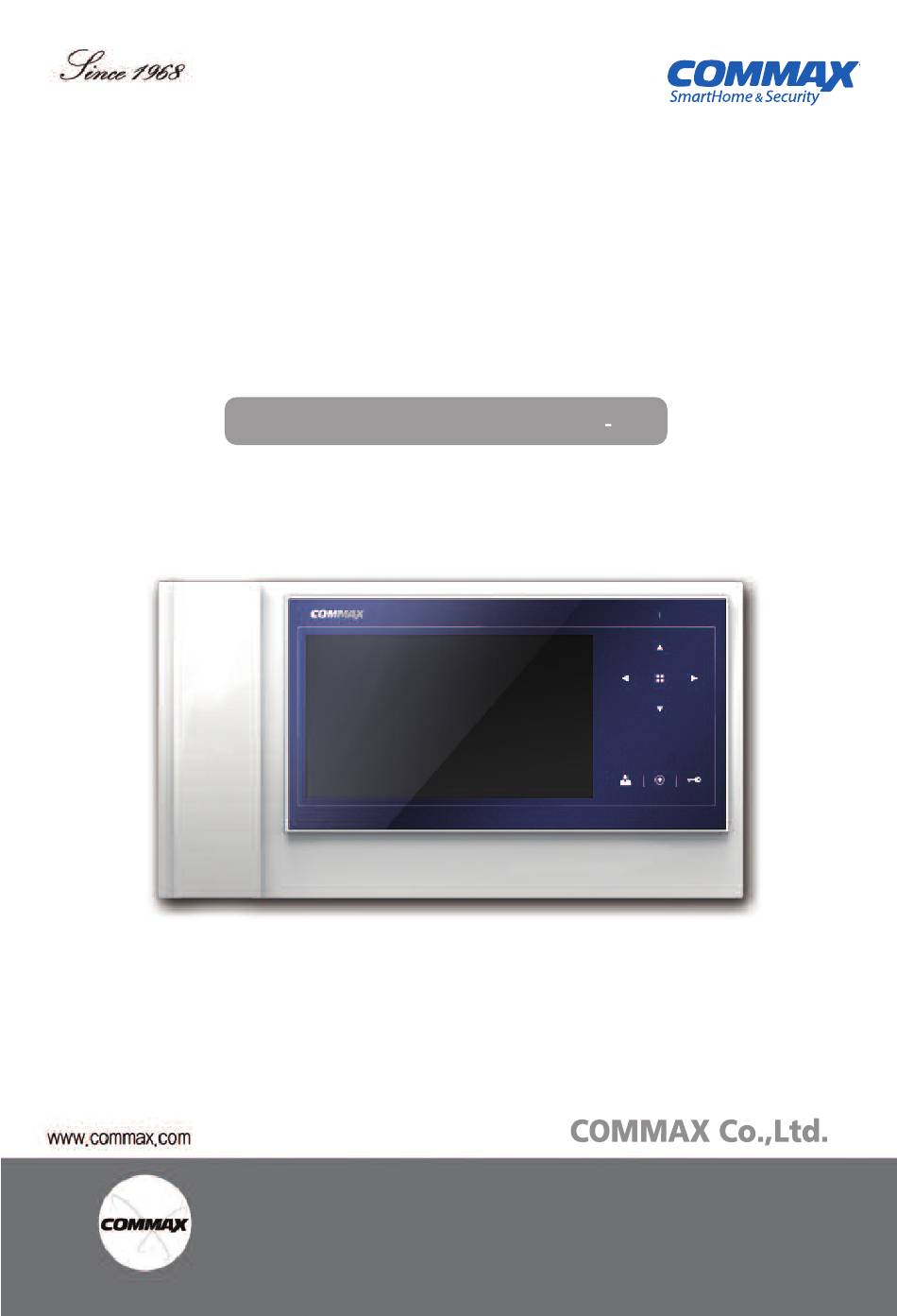

User Manual
Color Video Door Phone CMV 77K
• Thank you for purchasing COMMAX products.
Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
The company is not responsible for any safety accidents caused by abnormal operation of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMV-77K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commax CMV-77K

Summary of Contents for Commax CMV-77K

  • Page 1 User Manual Color Video Door Phone CMV 77K • Thank you for purchasing COMMAX products. Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.

  • Page 2: Table Of Contents

    8. Package Contents ................15 9. Specifications and Features..............16 10. Safe Operation guide ................16 1. Greetings Thank you for Purchasing COMMAX Products ● Please carefully read this User's Manual (in particular, precautions for safety) before using a ● product and follow instructions to use a product exactly.

  • Page 3: Warnings And Cautions

    2. Warnings and cautions Please follow the things described below in order to prevent any danger or property damage. Warning Prohibition. It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or without an exception injury if violated.
  • Page 4 Warning If an abnormal sound, burning Please don’t disassemble, Please don’t insert any Please use only the designated smell or smoke is coming out repair or rebuild this product metallic or burnable materials batteries for the products of of the product, please plug out arbitrarily (please contact the into the ventilation hole.

  • Page 5: Each Part's Name

    3. Each part’s name Description Description Description Handset Left button Select button Monitor Monitor button UP(△)/DOWN(▽) button Up button Interphone button Power switch MENU button Door release button Outer lead terminal Right button Volume controller Down button MENU button ※ When this product boot up, via program, check CAMERA 2’s connect terminal connected with which system.

  • Page 6: Operation

    4. Operation ※ Caution : Do not hold the handset at your ear when you press hook switch to switch call. 1. Calling of visitor The visitor Open the door The visitor’s presses the image appears call button on A chime Dialog begins on the monitor the camera...
  • Page 7 3. Monitoring : function to see the image of visitor in the entrance (stand-by mode) Operation - By pressing the Monitor button repeatedly, the monitor will work as following in order. Camera 1 ➞ ( Camera 2 ) ➞ OFF ➞ Camera 1 .... (On talking mode)Operation - By pressing Monitor button repeatedly, the monitor will work as following in order.
  • Page 8 * When you call with guard station, press menu button ( ) at once, CCTV monitoring will be displayed in sync. (Caution : If you want to operate Monitoring function at the same time on the phone with guard station, only available when you operated only cctv monitoring function first. ) 2) Monitoring function.
  • Page 9 3) CCTV monitoring selection menu (individual door / lobby door / CCTV ) : When you press CCTV monitoring button, 1~8 (number of installed CCTV) will be displayed on the screen. - Using up/down/left/right button (▲/▼/◀/▶)and menu( ) button on the product, you can select CCTV what you want monitor (CCTV screen will be display what you selected) - If you press EXIT button, monitoring function will be finished.

  • Page 10: Setting

    5. Setting ●When you are in video call function or monitoring, press MENU button, setting window will pop up. You can use following functions through following buttons. When setting, you can use product’s front button and side button. * Menu start : MENU(side button), (front button) * Menu close : MENU (side button) * Selecting : SELECT (side button) ,...
  • Page 11 Press menu button, at the setting window, move to UTILITY by ◁/▷ button and press UTILITY SELECT button and enter to certain menu. CHIME-BELL VOLUME : You can control Chime bell call Volume. - You can control from 0(MUTE) to 3(MAX). 2.

  • Page 12: Installation

    6. Installation ▷ Monitor installation SCREW PHM 3X6 ZnY - 1EA SCREW GH1T 4X18 ZnW - 4EA ※ Note ● Avoid installing the product in the area of direct sunlight. ● The position of the unit's body should fit the standard height range (Recommended height range is 1450 ~ 1500mm.) ●...
  • Page 13 ▷ Camera Installation (at DRC-4MC) ※ Note ● Do not install a door camera in the area exposed to direct sunlight or backlight. ● Please keep the lens clean for the clearest image reflection.

  • Page 14: Wiring And Connection Instructions

    3. Yellow: Power (+12V) 3. Yellow: Power (+14V) 4. White: Video 4. White: Call signal CMV-77K CDV-50P If you connect with MODUM system, you need to connect with 'CAMERA2' ports and floor distributor(Please refer to the manual of floor distributor for wiring.)
  • Page 15 ✽ Note 1. In case, if there is a high-voltage power line in the area of installation, use metal tube coaxial cable for wiring 2. Beware of wrinkling of line coating and cable stick-outs as it may cause circuit shortage and operation inconvenience.

  • Page 16: Package Contents

    8. Package Contents ③ Manual ① Body of CMV-77K ② Bracket for wall mount ⑥ 4P Connector(2EA) ⑤ M 3 X 6(1EA) ④ T4 X 18(4EA) Screw for body Screw for wall mount...

  • Page 17: Specifications And Features

    9. Specifications and Features CMV-77K Rated Voltage 100-240V~, 50/60Hz Power Consumption Operating : 16W(MAX) 4 wires with door camera (Polarity), Wiring 4 wires with an Interphone (Polarity) Screen Size Color 7" TFT LCD Communication Simultaneous communication From a door camera : Electric chime...
  • Page 18 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM5477K00010 Printed In Korea / 2015.05.104...
