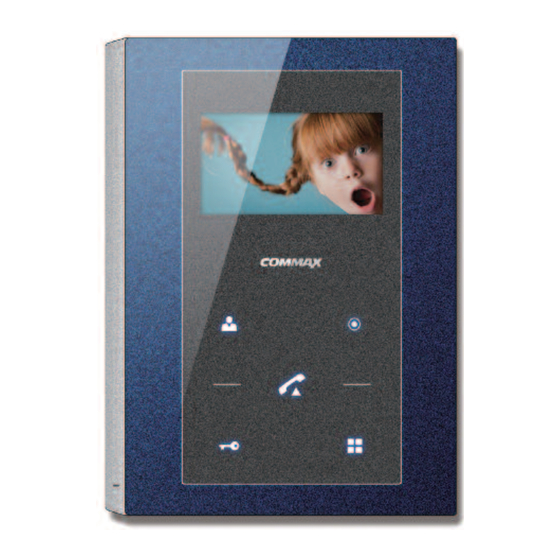

Color Video Door Phone CMV 43S
• Thank you for purchasing COMMAX products.
Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Related Manuals for Commax CMV-43S
Summary of Contents for Commax CMV-43S
-
Page 1: User Manual
User Manual Color Video Door Phone CMV 43S • Thank you for purchasing COMMAX products. Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. -
Page 2: Table Of Contents
9. Product components ................16 10. Specifications ..................17 11. Safe Operation guide ................17 1. Greetings Thank you for Purchasing COMMAX Products ● Please carefully read this User's Manual (in particular, precautions for safety) before using a ● product and follow instructions to use a product exactly. -
Page 3: Warnings And Cautions
2. Warnings and cautions Please follow the things described below in order to prevent any danger or property damage. Warning Prohibition. It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or without an exception injury if violated. - Page 4 Warning If an abnormal sound, burning Please don’t disassemble, Please don’t insert any Please use only the designated smell or smoke is coming out repair or rebuild this product metallic or burnable materials batteries for the products of of the product, please plug out arbitrarily (please contact the into the ventilation hole.
-
Page 5: Part Names
3. Part names Part name Part name Part name △ button Menu button(side) Enter button ▽ button Power ON/OFF Speaker 4.3” TFT LCD Monitoring button Talk button Guard and interphone 10 Door release button C-MIC button 13 Menu button(touch) Connecting terminals... -
Page 6: Operation
4. Operation 4-1 Functions for single & MODUM system 4-1-1 Use for single system 1) Communicate with visitor (1) Communicate in Monitor ① As the paging button on a door camera is pressed, the paging tone rings at the connected videophone and the visitor’s figure appears on the monitor. ②... - Page 7 3) Monitoring ① Press the “Monitoring button” in standby mode, you can check the image in order. - Camera 1 → Camera 2 → OFF → Camera 1 → repeat ② Press “Call” button during monitoring to call to the entrance. 4-1-2 Use for MODUM system - This function is only for MODUM system.
- Page 8 - The paging tone rings when it is received a paging from a common entrance or guard station while talking with the individual entrance. Press “Guard and interphone” button to connect after finishing communication with the individual door unit. 2) Communication with a guard (1) Receive a call ①...
- Page 9 - Press “Door release” button to monitor CCTV when OSD menu appears on screen. : When the CCTV monitoring mode is selected, the additional select menu displays on screen. Press “Call” button to finish it. (Refer to description below to select CCTV for monitoring.) - Additional CCTV selection menu (1) When 1 unit of CMD-104VU is installed,...
- Page 10 4) Page the elevator - If the elevator is connected with monitor, you can use this function. - In the standby mode, if you press the “Guard & Interphone” button, the additional menu will be displayed at the lower-right corner of screen. - For paging elevator, press the door release button while the menu is displayed.
-
Page 11: Settings
5. Settings - Press “Menu” button in video call or monitoring mode then Setting OSD will be shown on screen. - Both front touch keys and side switches can be used for settings as below. 1) Side switches - Start and finish menu : ① MENU button - Select and input : ②... - Page 12 (2) Press “Select” key to activate the section(Move to the select window) (3) Use “Move” key to adjust the level from 0 to 20. (4) After adjustment, press “Select” key to go back to menu. 4) RESET : Reset Brightness / Contrast / Color. Press “Select”...
-
Page 13: Initialization
6. Initialization - As “Interphone” and “Door release” buttons are pressed, at the same time, more than 3 seconds in standby mode, the initialization will be progressed with “Beep-Beep-Beep” sounds. - Please note that all information and screen mode are initialized with this progress. 7. - Page 14 ▷ Camera ※ Note ● Do not install a door camera in the area exposed to direct sunlight or backlight. ● Please keep the lens clean for the clearest image reflection.
-
Page 15: Wiring Diagram
8. Wiring Diagram ※ If you connect with MODUM system, you need to connect with 'CAMERA2' ports and floor distributor(Please refer to the manual of floor distributor for wiring.) Warning : - If you connect with a floor distributor(to connect with lobby or guard station), you have to connect with only 'CAMERA2' port.(If you connect with 'CAMERA1' port and floor distributor, it will not be operated normally. -
Page 17: Product Components
4P(3EA) ① Monitor(CMV-43S) ......1EA ② Wall bracket for monitor ..... .1EA ③... -
Page 18: Specifications
10. Specifications CMV-43S Camera 4-wire (Polarity, CAM2 will be convertible with Wiring type MODUM system) Inperphone 4-wire (Polarity) Power 100V-240V~, 50/60Hz Power Consumption Stand by : 4 W Max : 10 W Communication method HANDS FREE type (Voice switch circuit) Monitor 4.3″... - Page 19 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM5443S00010 Printed In Korea / 2015.03.104...
