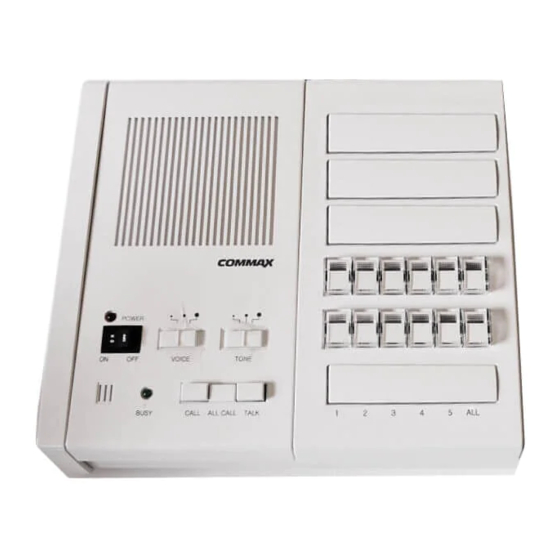

Commax PI-10LN User Manual

Commax PI-10LN User Manual

High power wired intercom

Advertisement

The model number and serial number are located
on the bottom record the serial number in the space
provided below. Refer to these numbers whenever
you call upon your Commax dealer regarding this
product.
Model No.
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK) NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol is intended to alert the
user to the presence of
uninsulated ` within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
Serial No.
INFORMATION
This equipment generates and uses radio
frequency energy and if not installed and used
property, that is, in strict accordance with the
manufacture's instructions, may cause
interference to radio and television reception. It
has been type tested and found to comply with
the limites for a Class B computing device in
accordance with the specifications in Subpart J
of Part 15 of FCC Rules, which are designed to
provide reasonable protection against such
interference in a residential installation.
However, there is no guarantee that interference
will not occure in a particular installation. If this
equipment does cause interference to radio or
television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by
one or more of the following measures:
Relocate the equipment with respect to the
receiver.
Move the equipment away from the receiver.
Plug equipment and receiver are on different
branch circuits.
For the customer in Canada
This apparatus complies with the Class B limits
for radio noise emissions set out in Radio
Interference Regulations.
TO PREVENT ELECTRIC SHOCK, DO NOT
USE THIS POLARIZED AC PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN
BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
-1-
CAUTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PI-10LN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Commax PI-10LN

  • Page 1 This equipment generates and uses radio provided below. Refer to these numbers whenever frequency energy and if not installed and used you call upon your Commax dealer regarding this property, that is, in strict accordance with the product. manufacture’s instructions, may cause interference to radio and television reception.
  • Page 2 1. Read Instructions - All safety and operating 10. Damage Requiring Service - Unplug this instructions should be read before the unit is equipment from the power source and refer operated. servicing to qualified service personnel under the following conditions: 2.
  • Page 3 22. Lighting - For added protection for this 17. Power Line -The commax videophone system product before a lighting storm, or when it is should not be located near overhead power...
  • Page 4 Location and Control of Functions ⑩ POWER Indicate L.E.D. : Shows the power On status of the unit. Power Switch : Turn on the main power to the unit. Microphone : Place next to your mouth for intercom conversations. Annunciator L.E.D. : Indicates called party is busy when lit. Also lights when calling other stations. Calling Button : Turn on the button, an electronic call tone will sound at the master and can speak and listen : “Hands free”.
  • Page 5 Features - 10, 20 or 30 call master with connection for add-on selectors available. - 10 watt output for powerful communication. - Up to one masters and any combination of subs multi - station. - Up to circuit wires may be available. - Separate transmitting and receiving tone volume controls on panel.
  • Page 6: Master Station

    Operations Master Station Check that power supply is plugged into power outlet, master station power switch is ON and the power lamp is lit. Receiving a Call : 1). A call from sub is annunciated by an intermittent electronic tone, which will remain at master.
  • Page 7: Wiring Diagram

    Wiring Diagram -7-...
  • Page 8: Troubleshooting Guide

    If your dealer is unable to operating condition. solve your problem, contact Commax Customer Service. Please don’t open the cabinet and attempt to repair the unit, as this will void your warranty.
  • Page 9: Specification

    Specification Model No. PI-10LN/20LN/30LN CM-200L Power Source 95-235V~, 60Hz (For North America standard) power supply Current Consumption 180mA (Maximum) Power Consumption 2A (paging) -30 wires Calling Press button station selection A single chime sounds when call button is depressed Communication Output 180mA maximum at master (with receive tone control at master) 180mA maximum at sub.
  • Page 10 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2010.10.103...
  • Page 11: User Manual

    HIGH POWER WIRED INTERCOM PI-10LN(Master), PI-20LN(Master) PI-30LN(Master), CM-200L(Sub.) • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow •...
