User Manual

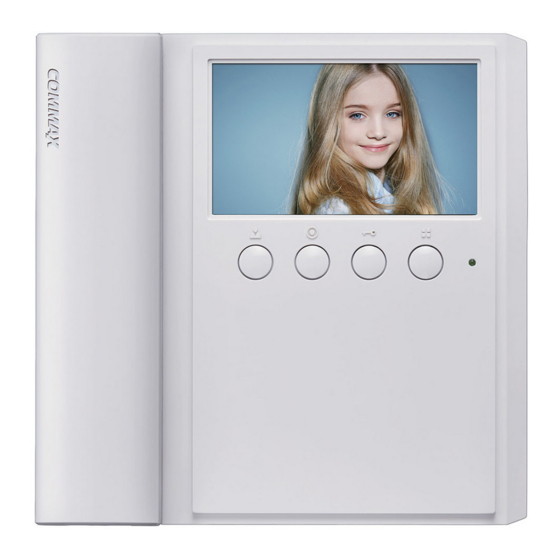

Color Video Door Phone CMV-43A
• Thank you for purchasing COMMAX products.
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commax CMV-43A
Summary of Contents for Commax CMV-43A
-
Page 1: User Manual
User Manual Color Video Door Phone CMV-43A • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. -
Page 2: Table Of Contents
10. Specifications and Features..............17 11. Safe Operation guide ................17 1. Greetings ● Thank you for Purchasing COMMAX Products ● Please carefully read this User's Manual (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. -
Page 3: Warnings And Cautions
2. Warnings and cautions Please follow the things described below in order to prevent any danger or property damage. Warning Prohibition. It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Caution Shows plugging out the power cord It may cause a minor damage or without an exception injury if violated. - Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.
-
Page 5: Part Names And Functions
3. Parts Names and Functions Part Name Description Handset Hand set receiver TFT-LCD Display visitor’s image Monitoring button Screen view of door cameras Interphone button Call an interphone Door open button Open the door Menu button Display setting menu Call volume Controller Control the call sound level Power switch ON/OFF switch... -
Page 6: Operation
4. Operation Caution : Do not hold the handset at your ear when you press hook switch to switch call. 1. Calling of visitor The visitor’ s The visitor Open the door presses the A chime image appears T T h h e e d d o o o o r r r r e e l l e e a a s s e e f f u u n n c c t t i i o o n n call button on sounds o o p p e e r r a a t t e e s s o o n n l l y y w w h h e e n n t t h h e e v v i i s s i i t t o o r r ’... - Page 7 : function to see the image of v v i i s s i i t t o o r r i i n n t t h h e e e e n n t t r r a a n n c c e e 3.
- Page 8 버튼 외출/방범 버튼/LED 홈버튼 외출/방범 버튼/LED - For the paging the 'PORTER', to push the button while the menu is displayed. : You can talk with porter when he answers the call. - For the paging the 'GUARD', to push the button while the menu is displayed.
- Page 9 3) Menu to choose CCTV Monitoring( Private entrance, public entrance / CCTV) 1,2,3, ▶ will be shown at the below of the screen if you press the Monitoring button for CCTV. - 1 Press the button related to the CCTV which you want to monitor among 1~3.(the CCTV screen will be shown up ) - If you want to monitor another CCTV,Press the button ▶...
- Page 10 - Press the button related to the CCTV which you want to monitor among 4~6. (the CCTV screen will be shown up ) - If you want to monitor another CCTV, Press the button ▶ go to next screen. - Press the button related to the CCTV which you want to monitor between 7,8.(the CCTV screen will be shown up ) - if you press the button ▶...
-
Page 11: Settings
5. Settings •You can adjust DOOR VIDEO SET, UTILITY and check INFORMATION(model name &version) with (UP)△ / (DOWN)▽ button after pressing Menu button on the front of the product in video talk mode or stand-by monitoring. •Products settings need the following 4 buttons on the right of product. * Start Menu / Exit : MENU button * Select and in-put : SELECT (Interphonebutton) * Move up / Move right : △/▷(Open button) - Page 12 ③ Adjusting call level : 0(MUTE) ~ 3(MAX) ④ To complete the set, press SELECT button. (2) SCREEN MODE : to set for screen ratio ① ZOOM: Zoon in(expansion) image maintaining actual ratio(4:3) is shown. (full of the screen) ② 4:3: Image of 4:3 ratio without expansion is shown.(This is actual ratio for camera) ③...
-
Page 13: Installation
6. Installation ▷ ▷ Monitor installation Screw M3(1EA) Screw T4 (4EA) Note • Avoid installing the product in the area of direct sunlight. • The position of the unit's body should fit the standard height range (Recommended height range is 1450 ~ 1500mm.) •... - Page 14 ▷ ▷ Camera Installation (at DRC-4MC) SCREW T4X18(2EA) SCREW M3X8(2EA) Note • Do not install a door camera in the area exposed to direct sunlight or backlight. • Please keep the lens clean for the clearest image reflection.
-
Page 15: Wiring And Connection Instructions
3. Yellow: Power (+14V) 4. White: Video 4. White: Call signal CDV-50P CMV-43A If you connect with MODUM system, you need to connect with 'CAMERA2' ports and floor distributor(Please refer to the manual of floor distributor for wiring.) Warning : - If you connect with a floor distributor(to connect with lobby or guard station), you have to connect with only 'CAMERA2' port.(If you connect with 'CAMERA1' port and floor... -
Page 16: Extension Of Monitors
Note 1. In case, if there is a high-voltage power line in the area of installation, use metal tube coaxial cable for wiring 2. Beware of wrinkling of line coating and cable stick-outs as it may cause circuit shortage and operation inconvenience. 3. -
Page 17: Package Contents
⑤ ① ② ③ Screw for wall mount SCREW T4 X 18 (4EA) ⑥ ⑦ ① Monitor(CMV-43A ) ② Handset ③ Wall bracket for monitor ④ Monitor fixing screw ⑤ Wall bracket mounting screw ⑥ Connector (4P) ⑦ User Manual... -
Page 18: Specifications And Features
10. Specifications and Features CMV-43A Rated Voltage 100-240V~, 50/60Hz Power Consumption Operating : 10W Wiring 4 wires with door camera (Polarity), 4 wires with an Interphone (Polarity) Screen Size Color 4.3" TFT LCD Communication Simultaneous communication From a door camera : Electric chime... - Page 19 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 Web site : www.commax.com PM5443A00010 Printed In Korea / 2015.02.104...
