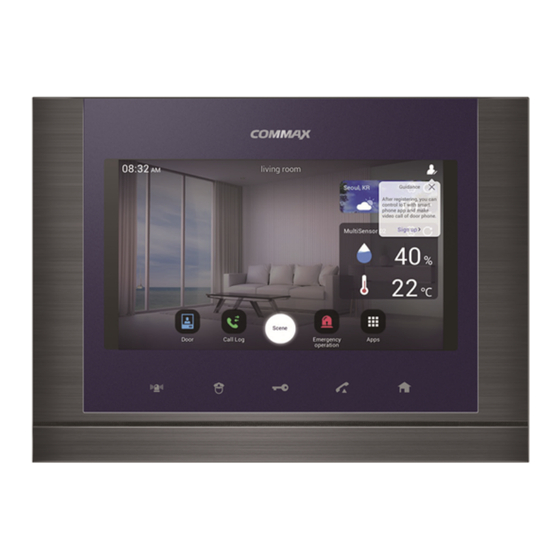

Commax CMV-70MX User Manual

Hide thumbs Also See for CMV-70MX:

User manual (51 pages)

User manual (27 pages)

Table Of Contents

Quick Links

Download this manual

User Manual

• Thank you for purchasing COMMAX products.

• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow

instructions to use a product exactly.

• The company is not responsible for any safety accidents caused by abnormal operation of the product.

CMV-70MX

Table of Contents

Need help?

Do you have a question about the CMV-70MX and is the answer not in the manual?

Questions and answers

Summary of Contents for Commax CMV-70MX

Page 1: User Manual
User Manual CMV-70MX • Thank you for purchasing COMMAX products. • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly.
Page 2: Table Of Contents
7.2. Password change ···················································· 25 7.3. Receive a call via Smartphone ····································· 26 7.4. Firmware update ····················································· 26 7.5. Connect to COMMAX ················································ 26 7.6. General setting ······················································· 27 7.7. Wireless network connection ······································ 27 7.8. Screen setting ························································ 28 7.9.
Page 3: Warnings And Caution
Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning No disassembly It may cause a serious damage or injury if violated. No touch Caution Must follow strictly. Shows plugging out the power cord It may cause a minor damage or injury if violated.
Page 4 Warning Please don’ t disassemble, If an abnormal sound, burning Please don’t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of of the product, please plug out arbitrarily (please contact the into the ventilation hole.
Page 9 7. Installation...
Page 12 9. Specifications and Features...
Page 13: Home Screen
Entrance Call Monitoring of my house entrance Press the 'Open Door' button during a call Press the 'Open Door' button during a call Saving the image of our house / common entrance visitor Press the 'Record' button during a call or a call You will see a photo of the visitor on the home screen if it successfully saved...
Page 14: Call
Press 'Reset' button to change to initial screen The screen settings can be set only when monitoring the door Visitor screen are displayed on the wall pad with bell sound, when you receive a call Press the (Talk) button to connect the call and press the (Talk reject) button to reject the call Press the (End Call) button to end a call...
Page 15 Call Type The image of visitor displayed on screen with a ringing bell Press the "Call" button if you want to make a call and press the "Reject" button to reject Press 'Exit' to end the call. The wall pad will be provided a message "the wireless device is calling” when you make a call connection with your Smartphone"...
Page 16: Emergency
An emergency situation occurs when the emergency button is pressed Emergency situation is proceeded in three steps (occurrence → stop → return). Press the 'Stop' button at the bottom of emergency alert screen Enter the password (initial password: 1234) when you see the password screen The button at the bottom of the screen changes to 'Return' if the password is matched Press the 'Return' button at the bottom of the screen Emergency situation is stopped...
Page 17: Cctv
7. Installation CCTV video screen Selection list Checking the recorded image...
Page 19: Control
Press the power button of the lighting you want to control to turn the light on or off...
Page 20: Specification
Go to the Safety tab 9. Specifications and Features...
Page 21 Change the device nickname Remove device...
Page 22: Specifications And Features
② ③ Go to home screen Press "Add Scene" button on "Add Scene Main Screen 9. Specifications and Features The device selection dialogue window will be displayed, if you click 'Create scene ' Select the device to set and press the OK button on the upper right corner Select the device attribute and set the device Click the ‘Enter Name button’...
Page 24 9. Specifications and Features...
Page 26 9. Specifications and Features...
Page 28 9. Specifications and Features...
Page 30 9. Specifications and Features...
Page 32 9. Specifications and Features...
Page 34 9. Specifications and Features...
Page 36 9. Specifications and Features...
Page 38 9. Specifications and Features...
Page 40 9. Specifications and Features...
Page 41 Model CMV-70MX Spec. Camera-4wire(Polarity) 2EA, Modum-4Wire(Polarity), Interphone-4wire(Polarity) Polarity), DDL Open-2Wire(Apolar) Wiring Power AC 100 ~ 240V , 50~60Hz Current standby :5W , Max :1 W Comsumtion Communication Way HANDS FREE - Individual entrance : Electronic Chime with 3 Tones(for 2 consecutive times) - Lobby : Electronic Chime with 3 Tones(for 2 consecutive times) consecutive times.
Page 42 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-21 33 Web site : www.commax.com Printed In Korea / 2018.04.104...
