To configure EOL in the Control Center:
1.
Go to control.openpath.com and log in
2. Go to Hardware > ACU Management, then click on the ACU to edit it
3. Click on the Ports tab
4. Click C able next to the port with EOL configured
5. Select the appropriate End of Line Supervision setting from the dropdown, then
click S ave
Troubleshooting
ACU
LEDS
READER
LEDS
LEGACY
WIRING
RESETTING THE
ACU
PROVISIONING THE
ACU
ACU LEDS

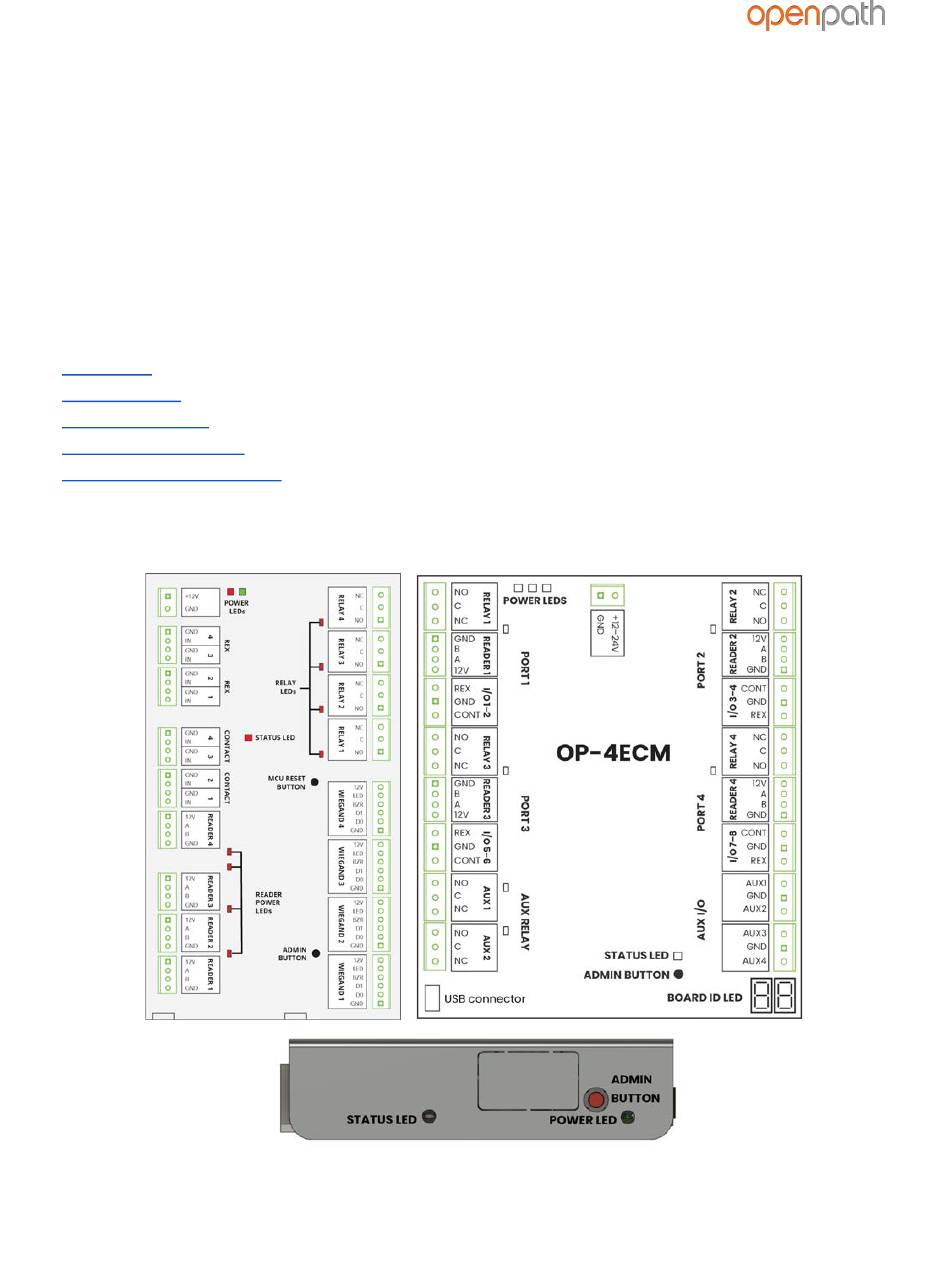

Figure 20 : Controller Board, Expansion Board, and Core LEDs
Version 1.8
© Openpath 2020
Page 25
