END-OF-LINE SUPERVISION
4-Port and 8-Port Board inputs have support for user-installed single or double 1k
ohm termination. This lets you monitor cut or shorted lines and create alerts and
rules in the Control Center. The input settings in the Control Center must match the
physical wiring configurations.
To configure EOL in the Control Center:
1.
Go to control.openpath.com and log in
2. Go to Hardware > ACU Management, then click on the ACU to edit it
3. Click on the Ports tab
4. Click Cable next to the port with EOL configured
5. Select the appropriate End of Line Supervision setting from the dropdown, then
click Save
Troubleshooting
ACU LEDS
READER LEDS
LEGACY WIRING
RESETTING THE ACU
PROVISIONING THE ACU
Version 1.9

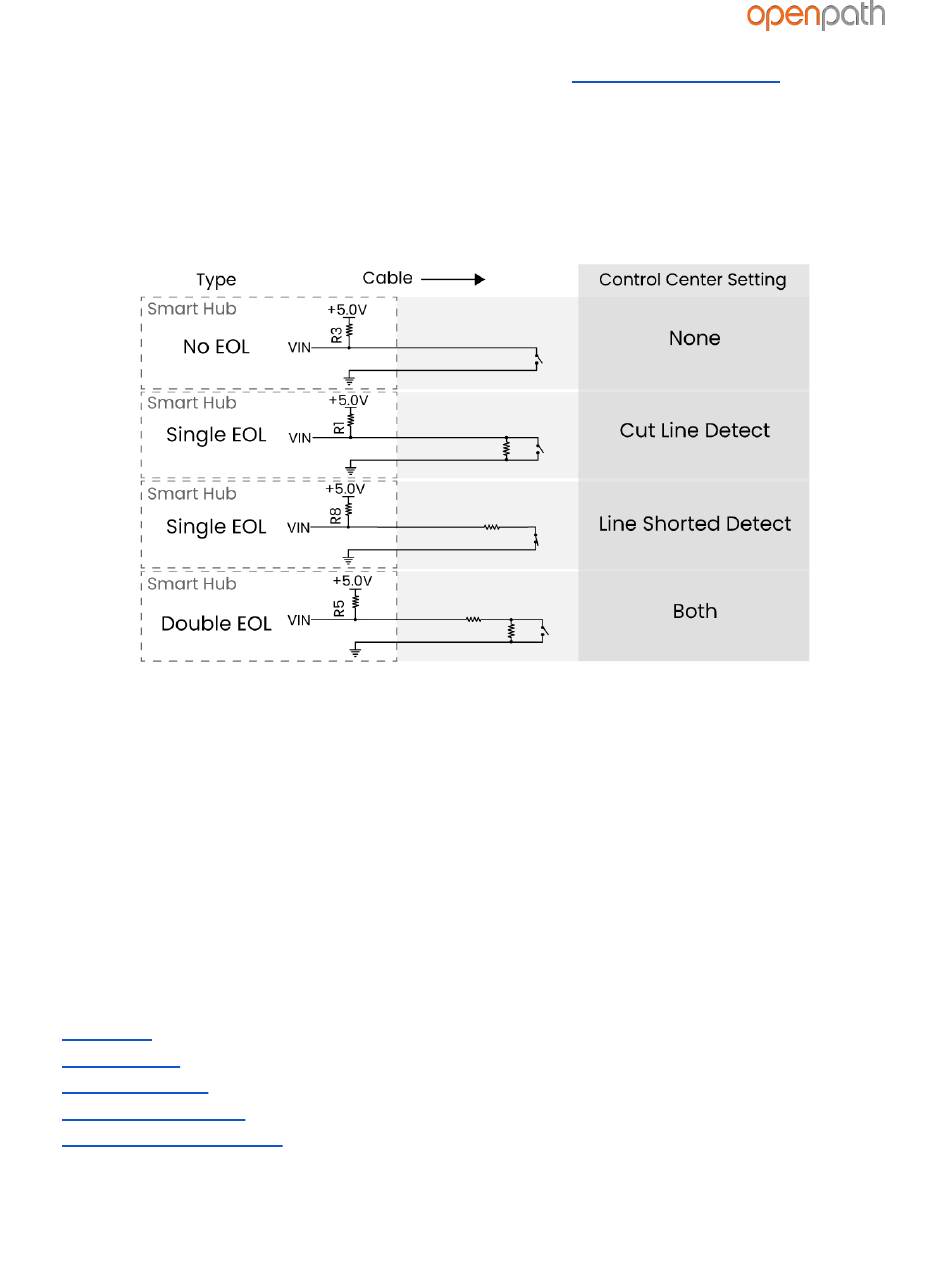

Figure 20: EOL configurations and settings
