WIRING THE CORE SERIES 12/24V 4-DOOR SMART HUB
The Core Series 12/24V 4-Door Smart Hub (4ENT-SYS-1224V) uses an
F PV4
to power
the Core and 4-Port Board, a
B 100
secondary power supply, and a
C 4 Control
Module
to power 12-24V locking hardware.

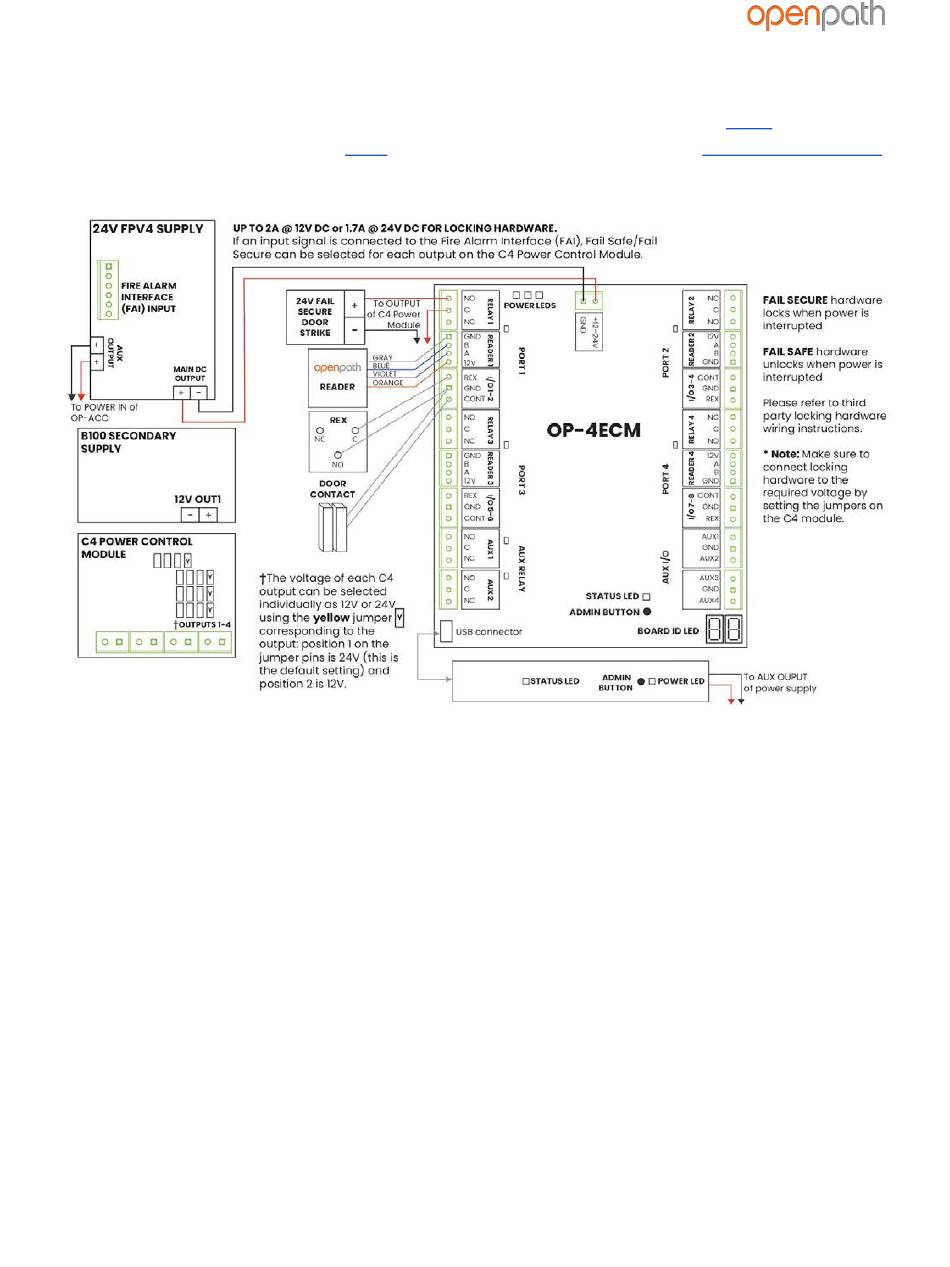

Figure 6 : 4ENT-SYS-1224V Wiring Diagram
Version 1.8
© Openpath 2020
Page 12
