WIRING THE CORE SERIES 12/24V 8-DOOR SMART HUB
The Core Series 12/24V 8-Door Smart Hub (8ENT-SYS-1224V) uses an
F PV6
to power
the Core and 8-Port Board, a
B 100
secondary power supply, and a
C 8 Control
Module
to power 12-24V locking hardware.

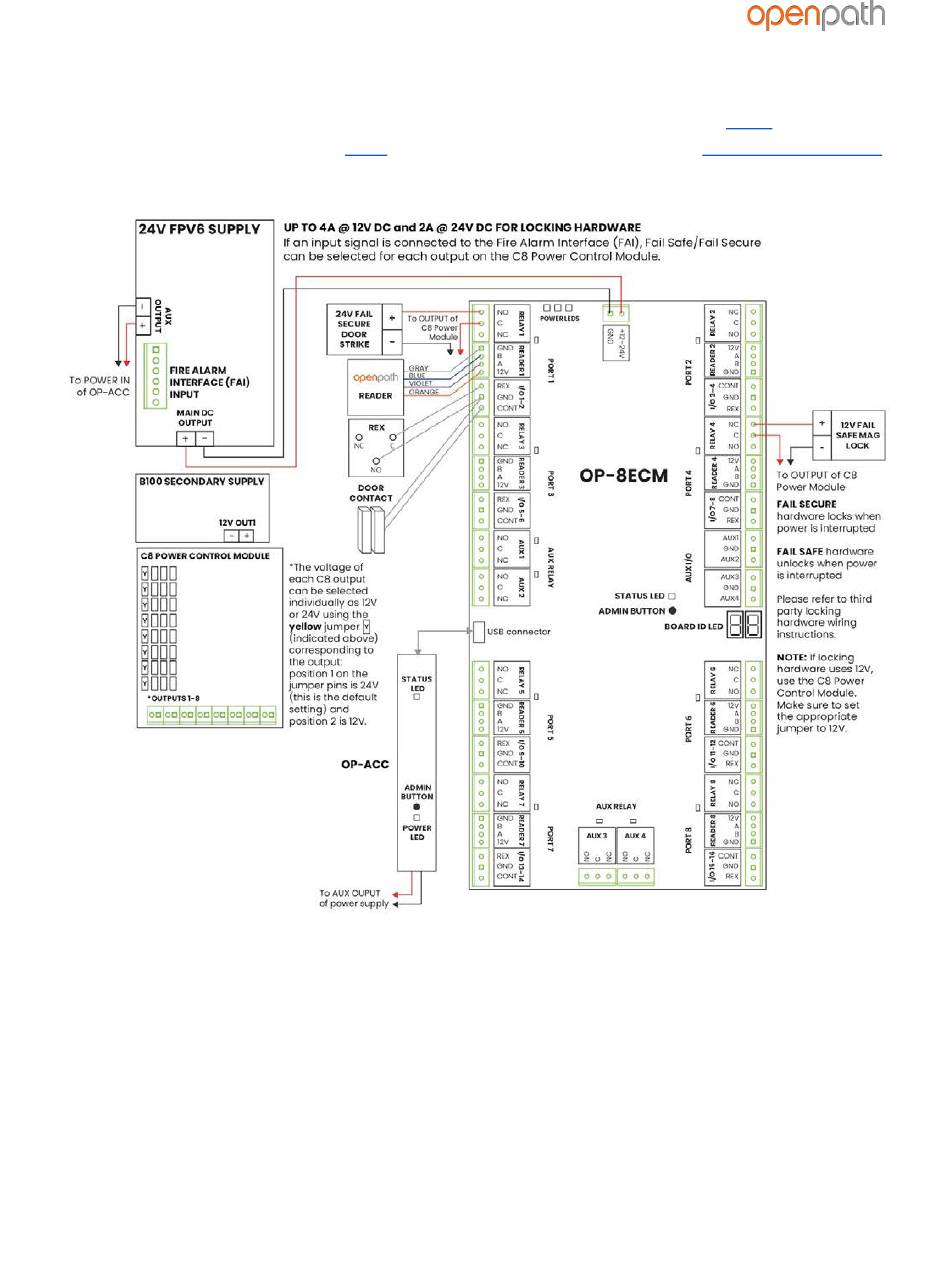

Figure 9 : 8ENT-SYS-1224V Wiring Diagram
Version 1.8
© Openpath 2020
Page 15
