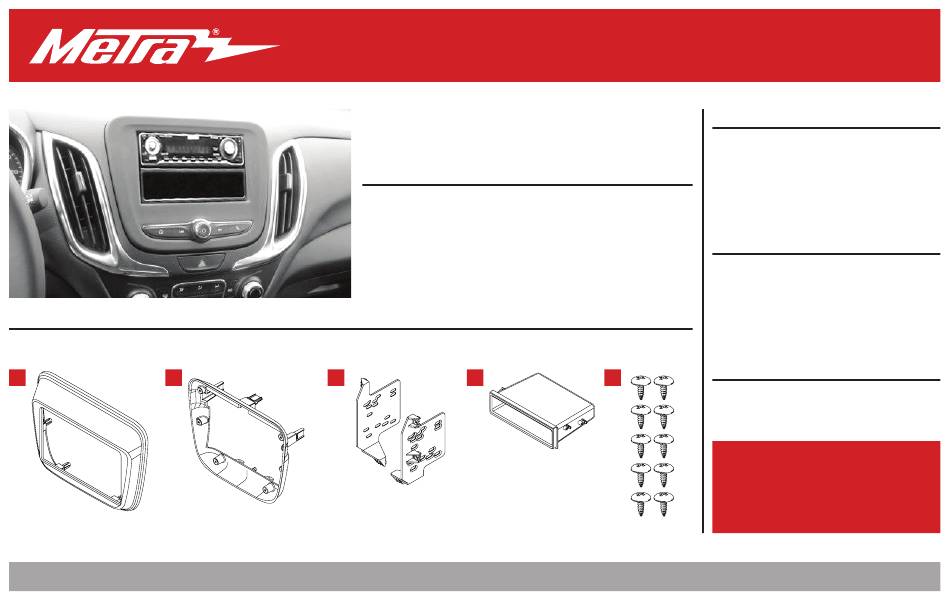

KIT COMPONENTS
• A) Front radio housing • B) Rear radio housing • C) Radio brackets • D) Pocket • E) (10) #8 x 3/8" Phillips screws
A
B
Metra. The World's Best Kits.
®
Chevrolet Equinox 2018-up*
*Visit MetraOnline.com for up-to-date vehicle specific applications.
KIT FEATURES
• ISO DIN radio provision with pocket
• Painted matte black
C
D
MetraOnline.com
E
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
99-3022B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly . .................................................2
Kit Assembly
–ISO DIN radio provision with pocket . .................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • GMOS-LAN-10 (IOB radio)
• GMOS-LAN-09 (IO5 radio)
Antenna Adapter: 40-EU55
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 1/17/18 INST99-3022B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-3022B
Summary of Contents for Metra Electronics 99-3022B
- Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 1/17/18 INST99-3022B...
- Page 2 DASH DISASSEMBLY 1. Unclip the top of the steering column, 4. Inside a small cavity located behind the then unclip and remove the instrument climate control panel, remove (2) 9/32” cluster trim. (Figure A) screws facing up that are securing the radio assembly to the dash. (Figure D) 2. Remove (1) 9/32” screw securing the 5. Unclip, unplug and remove the radio dash trim by the instrument cluster, then unclip and remove the trim. assembly. (Figure B) Note: The (3) top clips securing the 3. Remove (4) 9/32” screws from the climate assembly to the vehicle will be reused in (Figure A) (Figure D) control panel, then unclip, unplug, and Kit Assembly.
- Page 3 KIT ASSEMBLY ISO DIN radio provision with pocket 1. Secure the pocket to the radio brackets using the (4) #8 x 3/8” Phillips screws provided. (Figure A) 2. Remove the metal DIN sleeve and trim ring from the aftermarket radio. 3. Slide the radio into the bracket/pocket assembly, and then secure it using the screws supplied with the radio. (Figure B) 4. Insert the completed assembly between (Figure A) the front radio housing, and the rear radio housing, then secure the entire assembly together with the (6) #8 x 3/8” Phillips screws provided. Then attach the (3) factory clips removed in Dash Disassembly onto the assembly. (Figure C) 5. Locate the factory wiring harness and (Figure C) antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 1/17/18 INST99-3022B...
