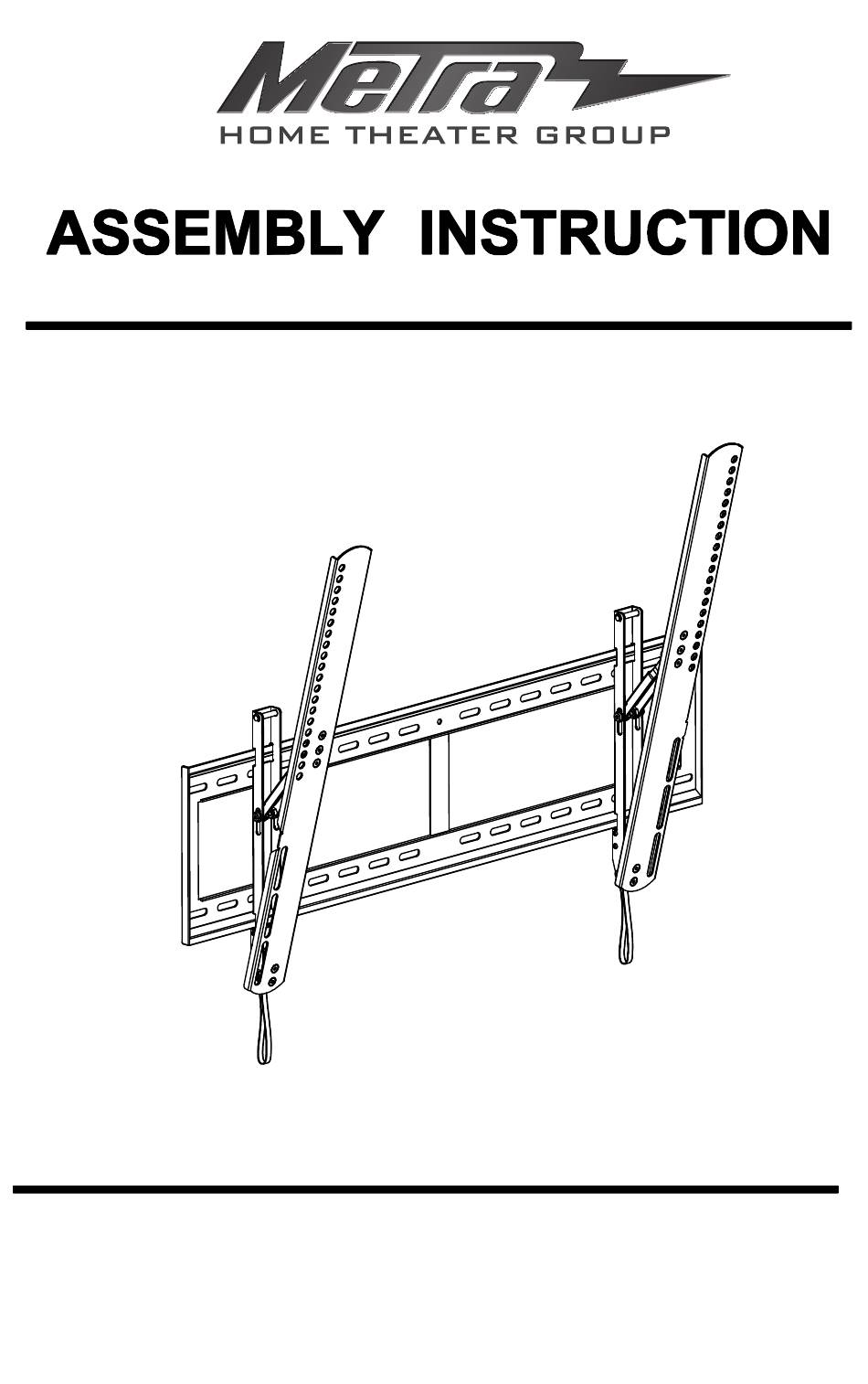

- Page 1 TX86 • Please read these instructions carefully before using. • This model will hold most 52”-84” Flat Panel TVs. • Load capacity: 60kg (132Lbs).
- Page 2 TX86 Information • Please read these instructions carefully before starting. • This product will hold most 52”-84” Flat Panel TVs. • Load capacity: 60kg (132Lbs). • VESA Compliant: 200x200-800x600 Supplied Parts and Hardware: Some parts not shown at same scale)
- Page 3 Safety Warning Please read this entire manual carefully before assembling this unit to avoid bodily injury and/or any property loss. If you do not understand these directions, or have any doubts about the safety of the installation, please call Tech Support at 1-866-839-9187. Please check carefully to ensure there are no missing or defective parts.
- Page 4 Assembly Instructions Step 1: Read and understand all of the directions. Use only as according to the directions. Step 2: Mount the wall plate (A) on the wall Wood Stud Mounting: The Wall Plate must be mounted to the center point of two wood studs that are at least 16 inches apart.
- Page 5 Concrete Wall Mounting: Choose a solid wall area (avoid the hollow wall or the screws in the joint of the bricks). Hold the wall mount bracket against the wall. While using a level to verify that the wall mount bracket is correct, mark the bolt hole locations. Pre-Drill the marked locations with a 3/8”...
- Page 6 Step 3: Attach two brackets (B) to TV back Note: Please use the correct screw & washer for the holes of the TV back, Assembly with incorrect screw & washer will damage the holes on the TV back, uneven assembly will cause slantwise TV screen. Reasonable knowledge is required to mount the flat panel TV and the wall mount and at least 2 people need to be used to finish the mounting procedure (D).
- Page 7 Note: This step requires 2 or more people to finish. Step 5: Adjust the TV angle and manage the wire You can loosen screw (4) to adjust tilting angle. When it is at your desired angle, you can tighten screws. Function: With this wall mount, you can enjoy the TV from different angles freely!
- Page 8 ©2016 Metra Electronics Corporation, 460 Walker Street, Holly Hill, FL 32117-2699 Specifications are subject to change without notice. All trademarks are the property of their respective owners. 1-866-839-9187 • www.metrahometheater.com...
