Metra Electronics 107-GM3B Installation Instructions

Chevrolet camaro 2016-up

Advertisement

Quick Links

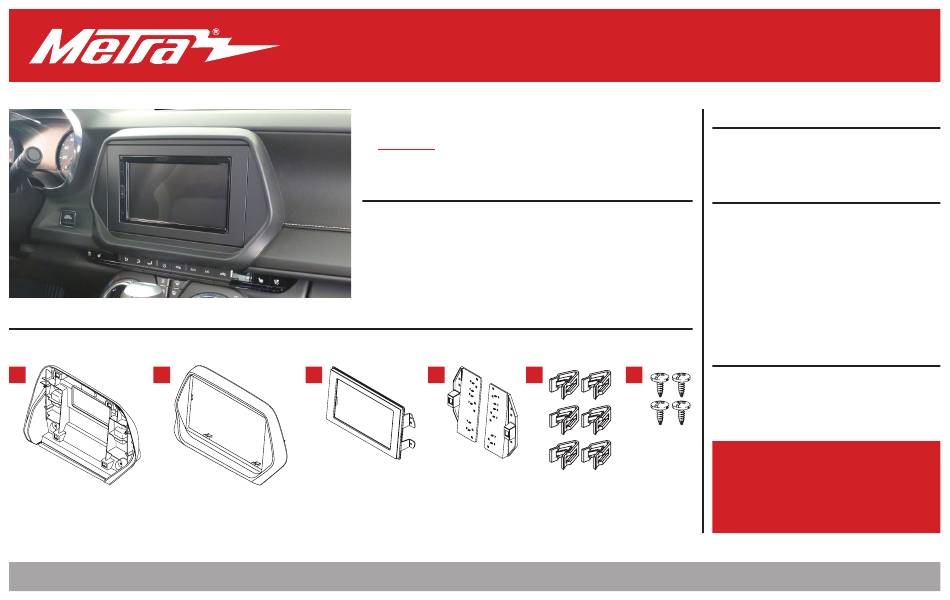

KIT COMPONENTS
•A) Display screen housing • B) Display screen trim bezel • C) Display screen trim • D) Display screen brackets • E) Panel clips (6) • F) Phillips screws (4)
A
B
Metra. The World's Best Kits.
®
Chevrolet Camaro
Visit
MetraOnline.com
for more detailed information about the product and up-to-date vehicle
specific applications
KIT FEATURES
• Designed specifically for the Pioneer DMH-C2550NEX and
DMH-C2500NEX radios
• Painted scratch resistant matte black to match the factory finish
C
D
MetraOnline.com
2016-Up
E
F
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
107-GM3B
I N S TA L L AT I O N I N S T R U C T I O N S
Patent Pending
TABLE OF CONTENTS
Dash Disassembly ................................................... 2
Kit Assembly .............................................................3
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Refer to axxessinterfaces.com for
wiring harness options
Antenna Adapter: 40-EU55 (sold separately)
Steering Wheel Control Interface: ASWC-1
(sold separately)
RGB Extension Cable: Pioneer part # CD-RGB150E
(not sold by Metra)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32" socket wrench
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 1/21/20 INST107-GM3B

Advertisement

loading
Need help?

Need help?

Do you have a question about the 107-GM3B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Metra Electronics 107-GM3B

  • Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/21/20 INST107-GM3B...
  • Page 2 DASH DISASSEMBLY Models equipped with a 7-inch Models equipped with an 8-inch touchscreen radio: touchscreen radio: 1. Unclip, unplug, and remove the radio 1. Unclip and remove the trim surrounding control trim panel surrounding the radio. the radio controls. (Figure C) (Figure A) 2.
  • Page 3 KIT ASSEMBLY 1. Secure the display screen housing to 4. Place the display screen trim over the the dash using the factory hardware. bracket/display assembly, then secure (Figure A) the assembly to the display screen housing using (4) Phillips screws Note: For vehicles equipped with an provided.
  • Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 1/21/20 INST107-GM3B...
