NOTE
Only the 4-channel receiver may be used in the version with the
square board because the wiring between the components and
the technical data do not allow otherwise.
5.3.6 Coupling the BADU JET Wireless Control II to a
BADU countercurrent system without board
The 4 -channel receiver must be used if the radio function is
retrofitted to earlier versions of countercurrent systems with
conventional components. This is located in its own, separate
housing and can be mounted directly next to the actual switch box
of the countercurrent system.

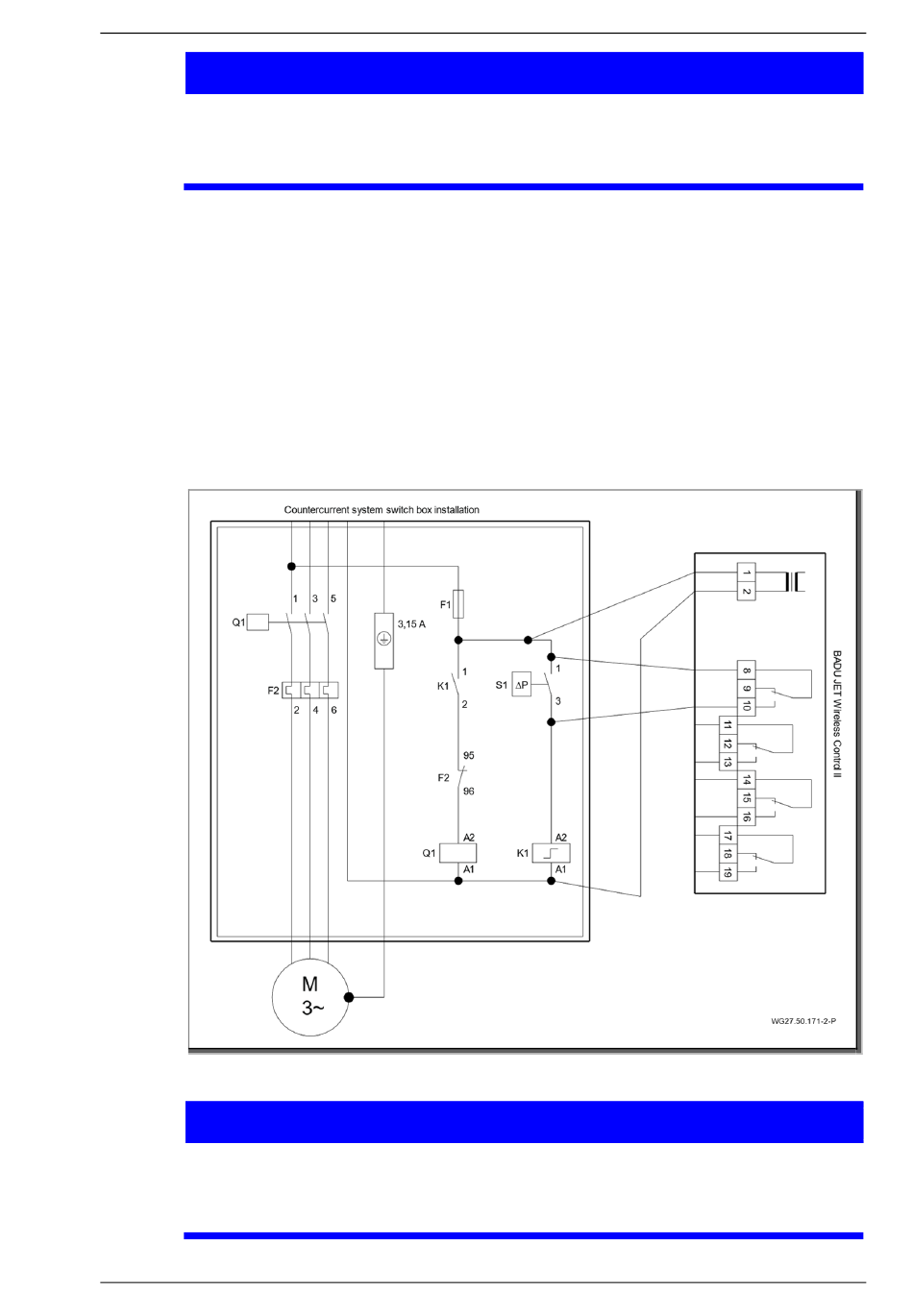

The receiver must be wired according to the following diagram.
The output contacts must be connected to the switching inputs in
the switch box.
Abb. 8
NOTE
Only the 4-channel receiver may be used in the version with the
square board because the wiring between the components and
the technical data do not allow otherwise.
