4-Channel Receiver - BADU JET Wireless Control II Translation Of Original Operation Manual

Description
3.1.2

4-channel receiver

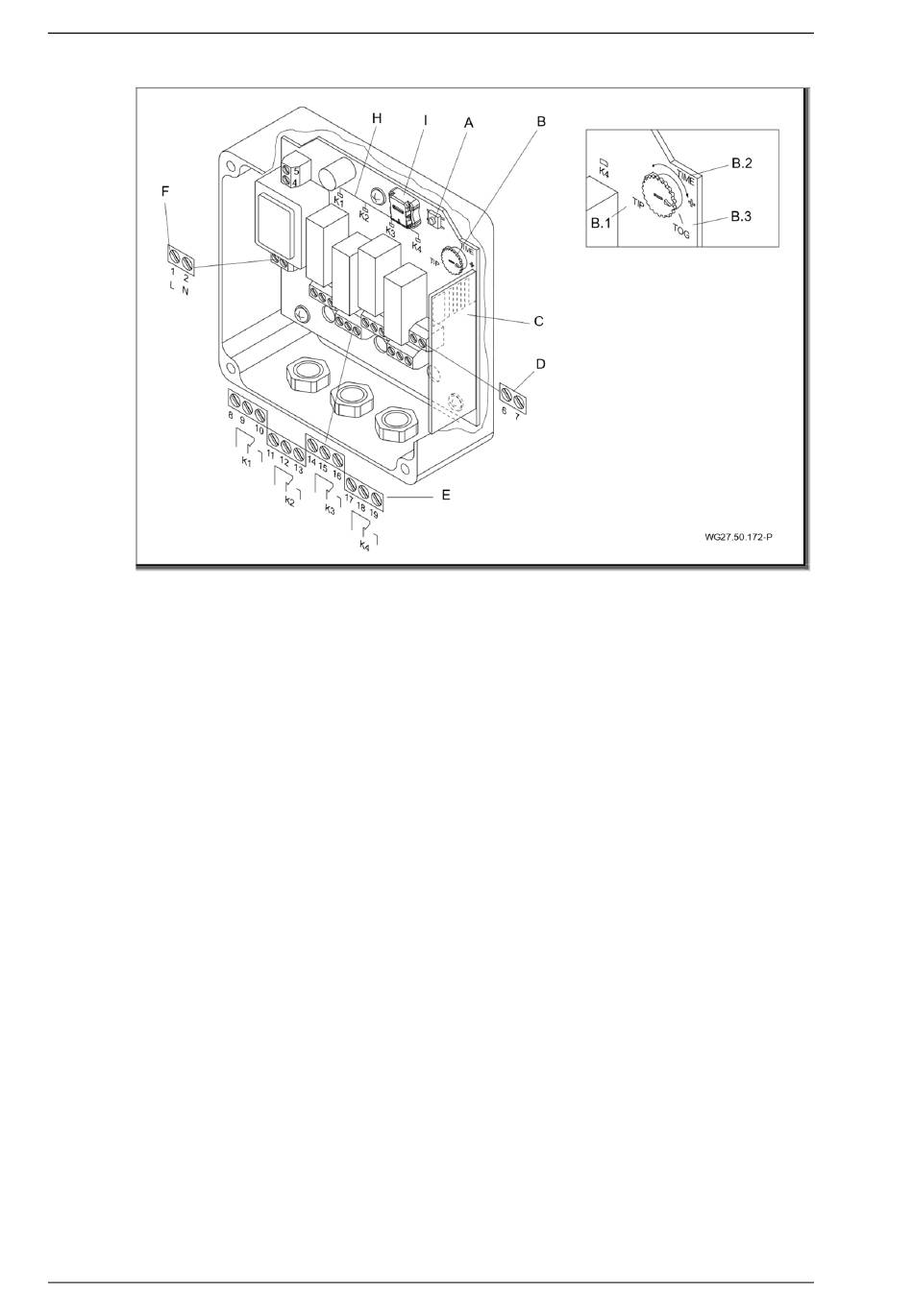

Fig. 2
This receiver has four changeover contact relays K1 – K4 (E).
Each of these contacts can be connected to a different mode. The
mode is selected by setting the adjusting wheel (B) with the hand-
held transmitter.
Adjusting wheel turned fully to the left: Touch mode
Adjusting wheel in middle position: Timer mode 1 – 90 min.
Adjusting wheel turned fully to the right: Toggle mode/continuous
The changeover contact to be adjusted in interaction with the
remote control unit is selected with the button (A) and the LEDs
(H).
This receiver has a 230 V supply. AC/DC 12-24 V is possible in
special cases.
This receiver has an enclosed housing and can be installed
separately. Screws and plugs are includes for wall fastening.
10 EN 06|2020
