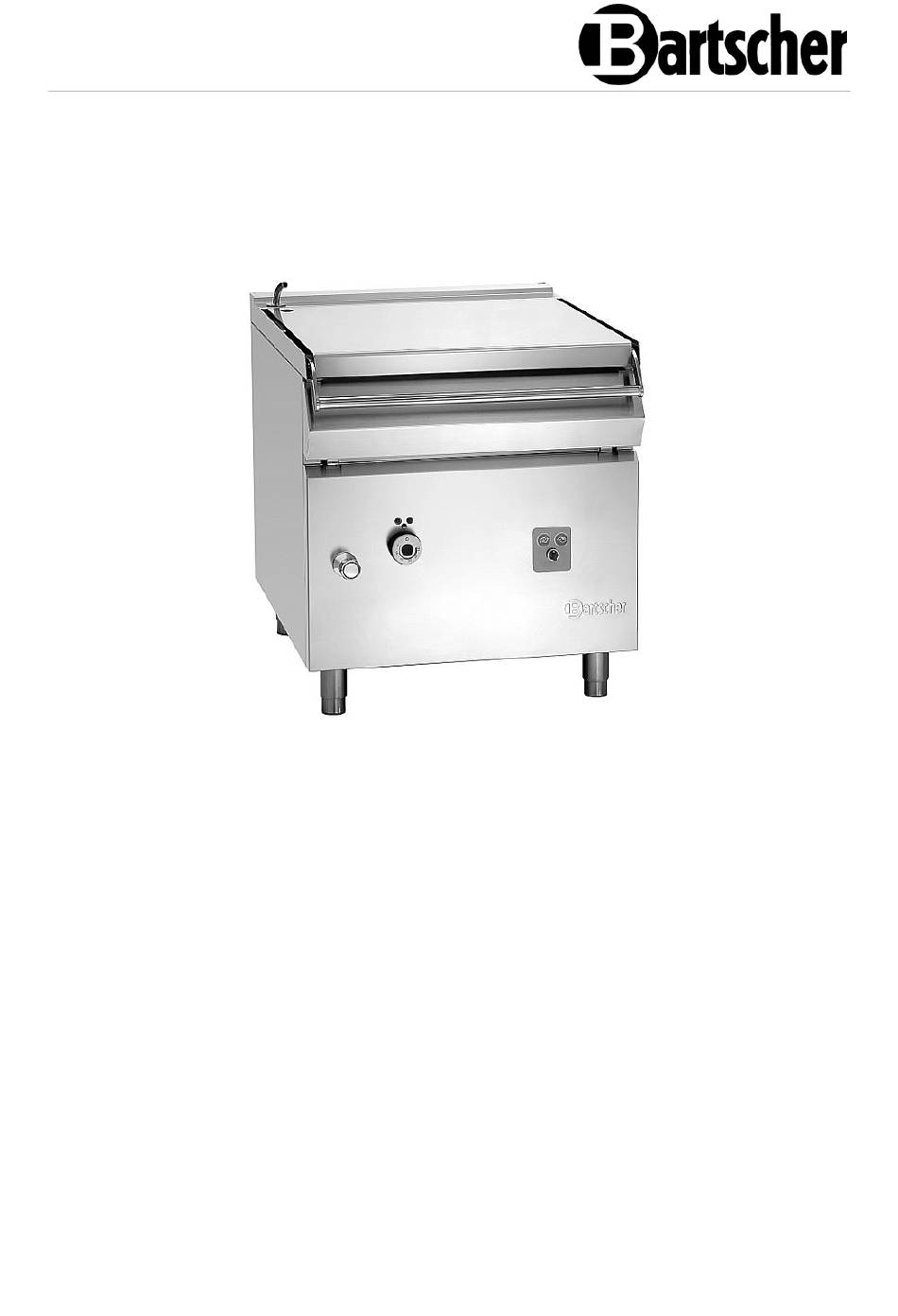

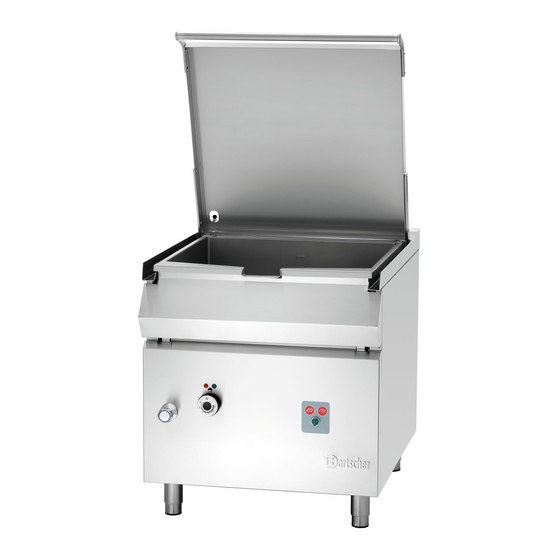

- Page 1 900 E87LEK - 900 E87LHK 296677 - 296607...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2020-04-15...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltende n ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Flammable Materials • Never subject the appliance to contact with high temperature sources, e.g.: oven, furnace, open flame, heat generating devices, etc.
- Page 7 Safety Operating Personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: Preparation of food (baking, cooking, stewing, frying, etc.) in professional kitchens, e.g. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Water connection: cold or warm water supply valve, Ø12 mm • Indicator lights: – Heating-up – ON/OFF • Height-adjustable feet Name: Tilting frying pan 900 E87LEK 296677 Art. No.: Material: CNS 18/10 Basin material: stainless steel Volume, in l: Usable volume, in l:... -
Page 12: Functions Of The Appliance
Technical Data Name: Tilting frying pan 900 E87LHK 296607 Art. No.: Material: CNS 18/10 Basin material: stainless steel Volume, in l: Usable volume, in l: Basin dimensions (W x D x H), in mm: 720 x 610 x 225 Tilting mechanism: manual Temperature range, min.–max., in °C: 100 - 300... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 296677 Fig. 1 1. Lid handle 2. Lid 3. Basin 4. Discharge 5. Selector toggle of electric motor 6. Operation indicator light (green) tilting mechanism 7. Temperature controller 8. Water supply valve 9. - Page 14 Technical Data 296607 Fig. 2 13. Lid handle 14. Lid 15. Basin 16. Discharge 17. Manual tilting mechanism crank 18. Operation indicator light (green) 19. Temperature controller 20. Water supply valve 21. Height-adjustable feet (4x) 22. Heating-up indicator light (orange) 23.
-
Page 15: Installation Instructions
Installation Instructions Installation Instructions Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. -
Page 16: Electrical Connection
Installation Instructions – sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. • Never place the appliance directly next to walls, furniture, or other objects made from flammable materials. Assure a minimum lateral clearance of the appliance of 30 mm. -
Page 17: Water Connection
Installation Instructions Water Connection 1. Make sure that the potable water connection is located close to the appliance. The potable water supply should feature pressure between 50 kPa (0.5 bar) and 300 kPa (3 bar). If the entry pressure exceeds 300 kPa (3 bar), install a pressure reducer. - Page 18 Installation Instructions Reception and Operation Control When connections are established, it is necessary to check the appliance, the entire installation and operation of the appliance. In particular, check: – if the entire protective film was carefully removed from all external surfaces;...
-
Page 19: Operating Instruction
Operating Instruction Operating Instruction Operation • Przed pier wsz ym uż yciem wycz yś cić urządz eni e i wypos ażenie zgodni e z e ws kazówkami z awartymi w pu nkcie 6 „Cz yszczen ie” . M ake s ure no water enters elec tric ins tall ati on and connection box. N as tępni e dokładni e os usz yć urz ądzenie i elementy wyposaż enia. •... - Page 20 Operating Instruction Before the First Use 1. Using a suitable cleaning agent, remove anti-corrosive coating from all surfaces of the appliance. 2. Before the first start-up, the following instructions must be executed. Indications for the First Use of the Tilting Frying Pan with Steel Basin 1.
- Page 21 Operating Instruction 1. Activate circuit breaker in order to switch the appliance off. 2. Use the temperature controller and set the temperature in the range of 45 °C – 295 °C. Both indicator lights over the temperature controller will come on: –...
- Page 22 Operating Instruction Pouring Water into the Basin WARNING! Danger of scalding in the case of overfilling of basin with water or food products! The basin may be filled in with water only in conjunction with food products, and always only to MAX marking! Danger of burning by splatters of fat or oil! Do not add water to hot fat or oil.
- Page 23 Operating Instruction Tilting frying pans are equipped with tilting mechanism, which facilitates draining the basin after preparation of food. NOTE: Before starting the tilting mechanism, place a suitable container under the discharge of the basin. Draining with Electric Motor Tilting Mechanism (296677) The basin is tilted by means of electric motor with the use of a selector switch located at the front of the appliance.
-
Page 24: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. -
Page 25: Maintenance
Possible Malfunctions Maintenance ATTENTION! Unconditionally observe maintenance intervals! To keep the appliance operational, it must be subject to maintenance at least once a year. The maintenance includes: – verification of the condition of wear-and-tear elements; – verification of individual electric elements; –... -
Page 26: Disposal
Disposal Problem Possible Cause Solution Operation indicator Power supply Check the electric power light does not come interruption. supply Appliance is not switched Activate circuit breaker in order to switch off the appliance. Damaged indicator light. Contact the service company. Temperature is set, Damaged heating Contact the service...
