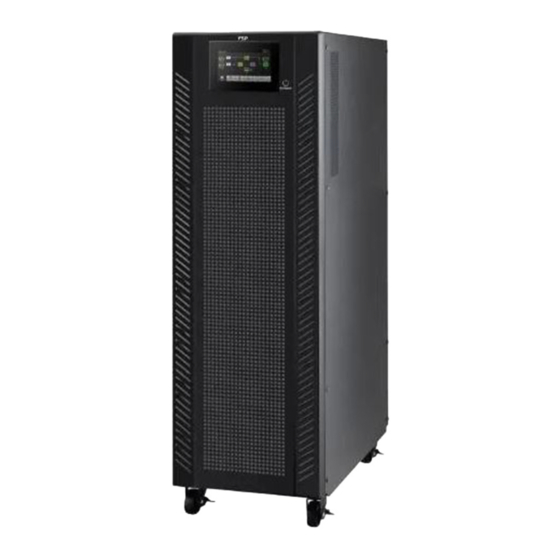

- Page 1 User Manual FSP Proline 3/1 3/1 10K~30K Online UPS Uninterruptible Power Supply System Version: 1.6...
-
Page 2: Unpacking And Inspection
2. Installation and Operation There are two different types of online UPS: standard and long-run models. Please refer to the following model table. Model Type Model Type 10KL 15KL Standard Long-run model model 20KL 30KL We also offer optional parallel function for these two types by request. The UPS with parallel function is called as “Parallel model”. - Page 3 Diagram 4: 10K/10KL Input/Output Terminal Diagram 3: 15K/20K Rear Panel Diagram 5 :15KL/20KL Input/Output Terminal Diagram 6: 15K/20K Input/Output Terminal Diagram 7: 15K/20K Grounding Terminal...
- Page 4 Diagram 8: 30KL rear panel Diagram 9: 30K rear panel Diagram 10: 30K(L) input/output terminal...
- Page 5 Diagram 11: 10KR(L) Rear Panel Diagram 12:10KR(L) Input/ Output Terminal Diagram 13: 15KR(L)/20KR(L) Rear Panel Diagram 14: 15KR(L)/20K(L) Input/Output Terminal Diagram 15: Battery pack rear panel 1. RS-232 communication port 2. USB communication port 3. Emergency power off function connector (EPO connector) 4.
-
Page 6: Single Ups Installation
15. External battery connector/terminal (only available for Long-run model) 16. Utility input terminal 17. Grounding terminal 18. Battery pack output circuit breaker 19. Bypass input circuit breaker 2-3. Single UPS Installation Installation and wiring must be performed in accordance with the local electric laws/regulations and execute the following instructions by professional personnel. - Page 7 Terminal Block wiring diagram of 10K/10KL Terminal Block wiring diagram of 15KL/20KL Terminal Block wiring diagram of 15K/20K...
- Page 8 Terminal Block wiring diagram of 30K(L) Terminal Block wiring diagram of 10KR/10KRL Terminal Block wiring diagram of 15KR(L)/20KR(L) NOTE 1: Make sure that the wires are connected tightly with the terminals. NOTE 2: There are two kinds of outputs: output terminal/outlets and programmable terminal. Please connect non-critical devices to the programmable terminal and critical devices to the output terminal/outlets.
-
Page 9: Ups Installation For Parallel System
Warning: (Only for standard model) ● Make sure the UPS is not turned on before installation. The UPS should not be turned on during wiring connection. ● Do not try to modify the standard model to the long-run model. Particularly, do not try to connect the standard internal battery to the external battery. - Page 10 Wiring diagram of parallel system for 10K/10KL...
- Page 11 Wiring diagram of parallel system for 15K(L)/20K(L)
- Page 12 Wiring diagram of parallel system for 30K...
- Page 13 Wiring diagram of parallel system for 10KR/10KRL Wiring diagram of parallel system for 15KR(L)/20KR(L)
-
Page 14: Specifications
6. Specifications MODEL 10KL 15KL 20KL 30KL CAPACITY* 10000VA / 8000W 15000VA / 12000W 20000VA / 16000W 30000VA / 24000W INPUT 110 VAC(L-N) ± 3 % at 50% Load Low Line Loss 176 VAC(L-N) ± 3 % at 100% Load Low Line Comeback Low Line Loss Voltage + 10V Voltage... - Page 15 MODEL 10KR(L) 15KR(L) 20KR(L) CAPACITY* 10000VA / 8000W 15000VA / 12000W 20000VA / 16000W INPUT 110 VAC(L-N) ± 3 % at 50% Load Low Line Loss 176 VAC(L-N) ± 3 % at 100% Load Low Line Comeback Low Line Loss Voltage + 10V Voltage Range 300 VAC(L-N) ±...
