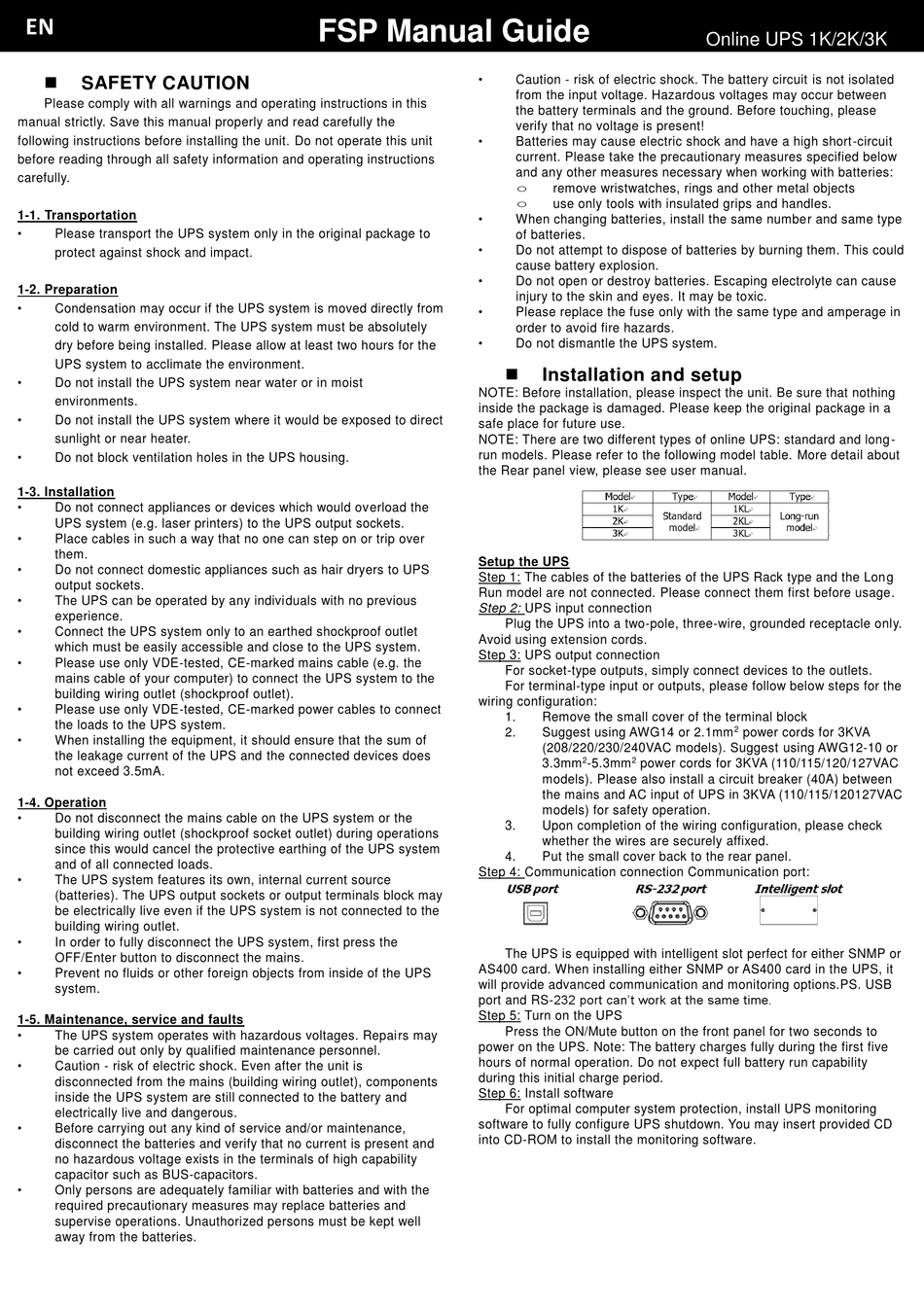

FSP Technology Champ Tower 2K(L) 2000VA Manual Manual

EN

SAFETY CAUTION
Please comply with all warnings and operating instructions in this
manual strictly. Save this manual properly and read carefully the
following instructions before installing the unit. Do not operate this unit
before reading through all safety information and operating instructions
carefully.
1-1. Transportation
•
Please transport the UPS system only in the original package to
protect against shock and impact.
1-2. Preparation
•
Condensation may occur if the UPS system is moved directly from
cold to warm environment. The UPS system must be absolutely
dry before being installed. Please allow at least two hours for the
UPS system to acclimate the environment.
•
Do not install the UPS system near water or in moist
environments.
•
Do not install the UPS system where it would be exposed to direct
sunlight or near heater.
•
Do not block ventilation holes in the UPS housing.
1-3. Installation
•
Do not connect appliances or devices which would overload the
UPS system (e.g. laser printers) to the UPS output sockets.
•
Place cables in such a way that no one can step on or trip over
them.
•
Do not connect domestic appliances such as hair dryers to UPS
output sockets.
•
The UPS can be operated by any individuals with no previous
experience.
•
Connect the UPS system only to an earthed shockproof outlet
which must be easily accessible and close to the UPS system.
•
Please use only VDE-tested, CE-marked mains cable (e.g. the
mains cable of your computer) to connect the UPS system to the
building wiring outlet (shockproof outlet).
•
Please use only VDE-tested, CE-marked power cables to connect
the loads to the UPS system.
•
When installing the equipment, it should ensure that the sum of
the leakage current of the UPS and the connected devices does
not exceed 3.5mA.
1-4. Operation
•
Do not disconnect the mains cable on the UPS system or the
building wiring outlet (shockproof socket outlet) during operations
since this would cancel the protective earthing of the UPS system
and of all connected loads.
•
The UPS system features its own, internal current source
(batteries). The UPS output sockets or output terminals block may
be electrically live even if the UPS system is not connected to the
building wiring outlet.
•
In order to fully disconnect the UPS system, first press the
OFF/Enter button to disconnect the mains.
•
Prevent no fluids or other foreign objects from inside of the UPS
system.
1-5. Maintenance, service and faults
•
The UPS system operates with hazardous voltages. Repai rs may
be carried out only by qualified maintenance personnel.
•
Caution - risk of electric shock. Even after the unit is
disconnected from the mains (building wiring outlet), components
inside the UPS system are still connected to the battery and
electrically live and dangerous.
•
Before carrying out any kind of service and/or maintenance,
disconnect the batteries and verify that no current is present and
no hazardous voltage exists in the terminals of high capability
capacitor such as BUS-capacitors.
•
Only persons are adequately familiar with batteries and with the
required precautionary measures may replace batteries and
supervise operations. Unauthorized persons must be kept well
away from the batteries.
FSP Manual Guide
•
•
•
•
•
•
•
NOTE: Before installation, please inspect the unit. Be sure that nothing
inside the package is damaged. Please keep the original package in a
safe place for future use.
NOTE: There are two different types of online UPS: standard and long -
run models. Please refer to the following model table. More detail about
the Rear panel view, please see user manual.
Setup the UPS
Step 1: The cables of the batteries of the UPS Rack type and the Lon g
Run model are not connected. Please connect them first before usage.
Step 2: UPS input connection
Avoid using extension cords.
Step 3: UPS output connection
wiring configuration:
Step 4: Communication connection Communication port:
AS400 card. When installing either SNMP or AS400 card in the UPS, it
will provide advanced communication and monitoring options.PS. USB
port and RS-232 port can't work at the same time.
Step 5: Turn on the UPS
power on the UPS. Note: The battery charges fully during the first five
hours of normal operation. Do not expect full battery run capability
during this initial charge period.
Step 6: Install software
software to fully configure UPS shutdown. You may insert provided CD
into CD-ROM to install the monitoring software.
Caution - risk of electric shock. The battery circuit is not isolated
from the input voltage. Hazardous voltages may occur between
the battery terminals and the ground. Before touching, please
verify that no voltage is present!
Batteries may cause electric shock and have a high short -circuit
current. Please take the precautionary measures specified below
and any other measures necessary when working with batteries:
○
remove wristwatches, rings and other metal objects
○
use only tools with insulated grips and handles.
When changing batteries, install the same number and same type
of batteries.
Do not attempt to dispose of batteries by burning them. This could
cause battery explosion.
Do not open or destroy batteries. Escaping electrolyte can cause
injury to the skin and eyes. It may be toxic.
Please replace the fuse only with the same type and amperage in
order to avoid fire hazards.
Do not dismantle the UPS system.

Installation and setup
Plug the UPS into a two-pole, three-wire, grounded receptacle only.
For socket-type outputs, simply connect devices to the outlets.
For terminal-type input or outputs, please follow below steps for the
1. Remove the small cover of the terminal block
2. Suggest using AWG14 or 2.1mm
(208/220/230/240VAC models). Suggest using AWG12-10 or
2 2
3.3mm -5.3mm power cords for 3KVA (110/115/120/127VAC
models). Please also install a circuit breaker (40A) between
the mains and AC input of UPS in 3KVA (110/115/120127VAC
models) for safety operation.
3. Upon completion of the wiring configuration, please check
whether the wires are securely affixed.
4. Put the small cover back to the rear panel.
The UPS is equipped with intelligent slot perfect for either SNMP or
Press the ON/Mute button on the front panel for two seconds to
For optimal computer system protection, install UPS monitoring
Online UPS 1K/2K/3K
2
power cords for 3KVA
