Attention
Please read this user manual in detail and follow the instructions carefully before
using your new charger：
1.Keep the charger away from humidity and heat source while charging, ensure
proper cooling during use.
2.Make sure the battery cells is correct before charging, avoid over-discharge of
the battery.
3.This charger can only use for 2~6S Lipo (voltage 7.4~26V) battery as power
supply. Do not use an input power supply beyond the range of voltage, avoid
damage the charger or even cause dangerous.

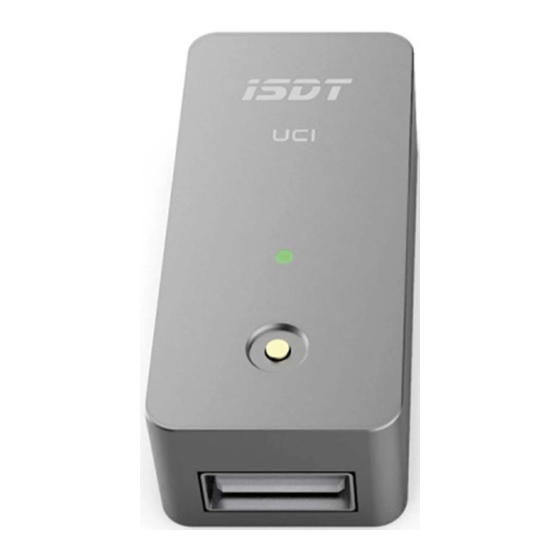

UC1 Smart Charger Instructions
Operation button
Indicator light
XT60 power input port
USB output port
Advertisement
Table of Contents
Related Manuals for ISDT UC1
Summary of Contents for ISDT UC1
- Page 1 UC1 Smart Charger Instructions Attention Please read this user manual in detail and follow the instructions carefully before using your new charger： 1.Keep the charger away from humidity and heat source while charging, ensure proper cooling during use. 2.Make sure the battery cells is correct before charging, avoid over-discharge of the battery.
- Page 2 Specifications Charging protocol support: Type: UC1 QC2.0/3.0, FCP, BC 1.2 Power input port: XT60 Operating temperature: 0 ~40 ℃ Input voltage: 2~6S LiPo (7.4~26V) Size: (L × W × H) 48.5×22×14.5mm Max output current: 2A Weight: 23 g Max output power: 18W...
- Page 3 1. Plug the 2~6S Lipo battery with XT60 to input port, the indicator light turns green means normal state. If the cell amounts setting on UC1 is not match the battery cells, the indicator light turns purple or red at slow flash.
