  • Page 2: Table Of Contents

    | Contents | ii Contents Introduction....................... 5 Hardware Overview.............................. 5 Mini-PC..............................5 UVC80..............................6 UVC50...............................7 UVC30...............................8 CP960................................ 8 MShare..............................9 Related Documentations............................. 10 Technical Specifications............................. 11 Deployment and Connection..................12 CP960-UVC80 Zoom Rooms Kit........................12 CP960-UVC50 Zoom Rooms Kit........................13 CP960-UVC30 Zoom Rooms Kit........................13 Recommended Deployment Solution.........................
  • Page 3 Changing the Time and Date Format....................31 Changing the Screen Backlight Brightness and Time..................32 Changing the Screen Saver Type and Waiting Time..................32 Setting the Signal Port of Yealink Plugin......................33 Using the CP Wireless Expansion Mic CPW90...........33 Registering the CPW90............................34 Unregistering the CPW90...........................34...
  • Page 4 The display does not display the shared content................... 41...

  • Page 5: Introduction

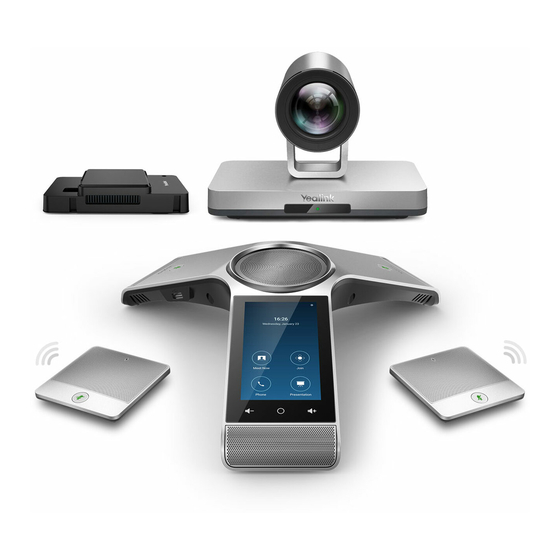

    The CP960-UVC series delivers premium audio and video quality thanks to its Yealink audio devices and UVC series of optical PTZ cameras. Featuring Yealink HD audio and Noise Proof technology, everyone’ s voice in the room can be heard clearly. In addition, Yealink’...

  • Page 6: Uvc80

    | Introduction | 6 Rear Panel of the Mini-PC Port Name Description Power Powers on or powers off. ① USB 3.0 Port • Connects to the MShare to share contents. ② • Connects to the UVC80/UVC50/UVC30. • Connects to a wireless USB dongle to use the wireless keyboard or the mouse.

  • Page 7: Uvc50

    | Introduction | 7 Port Name Description Line Out Connects to an audio output device using a 3.5mm ① audio cable. Line In Connects to an audio input device using a 3.5mm ② audio cable. USB(Optional) ③ Video Out Connects to a PC as a video output. ④...

  • Page 8: Uvc30

    | Introduction | 8 Port Name Description USB(Optional) ① Microphone Connects to a microphone. ② Video Out Connects to a PC as a video output. ③ Line In Connects to an audio input device using a 3.5mm audio ④ cable. Line Out Connects to an audio output device using a 3.5mm audio ⑤...

  • Page 9: Mshare

    | Introduction | 9 Item Description Three Internal Provide 20-feet and 360-degree coverage to transmit sound to other Microphones phones. Mute Touch Keys Toggle mute feature. Speaker Provides hands-free (speakerphone) audio output. Touch Screen Allows you to select items and navigate menus on the touch-sensitive screen.

  • Page 10: Related Documentations

    ⑤ Connects to mini-PC. ⑥ Related Documentations The following related documents are available: • Yealink CP960-UVC Zoom Rooms Kit Quick Start Guide • Yealink UVC80 Quick Start Guide • Yealink UVC50 Quick Start Guide • Yealink UVC30 Room Quick Start Guide...

  • Page 11: Technical Specifications

    3x digital zoom • Field of view (diagonal): 120° • Facial detection and Auto framing • 1 x 3m USB 2.0 cable MShare • 1080P/30FPS FHD • Support wired and wireless content sharing • Built-in Wi-Fi AP for Yealink wireless presentation device...

  • Page 12: Deployment And Connection

    Noise suppression (NS) Deployment and Connection The following contents describe the deployment and connection of Yealink Solution for Zoom Rooms, which consists of CP960, UVC80/UVC50/UVC30 camera, and mini-PC. The CP960 with Zoom Rooms version, can communicate with the mini-PC connected to the same LAN and can be used as Zoom Rooms controller, speaker, and microphone.

  • Page 13: Cp960-Uvc50 Zoom Rooms Kit

    | Deployment and Connection | 13 Note: For more information about the installation and deployment of accessories (for example, the installation of mini-PC or UVC80 camera), refer to the Quick Start Guide of the corresponding accessory. CP960-UVC50 Zoom Rooms Kit Note: For more information about the installation and deployment of accessories (for example, the installation of mini-PC or UVC50 camera), refer to the Quick Start Guide of the corresponding accessory.

  • Page 14: Recommended Deployment Solution

    • Recommendations of Mini-PC Installation Deployment Solutions of Different Meeting Rooms Yealink CP960-UVC Zoom Rooms system supports different camera devices (UVC80/UVC50/UVC30 Room) according to the conference requirements. Deployment solutions for different camera devices are as follows: Medium-to-large room Small-to-medium meeting room...

  • Page 15: Recommendations Of Camera Installation

    | Deployment and Connection | 15 For Medium-to-large conference room (8-18 people) • CPW90 wireless microphones support 360-degree audio pickup at a radius of up to 3 meters. • Place the CPW90 wireless microphones on a stable surface and keep them away from obstacles, so that they can pick up sounds effectively.

  • Page 16: Recommendations Of Mini-Pc Installation

    You can mount the mini-PC on the wall near the TV, or stick it to the table or the backside of the TV cart. For more information on how to install the mini-PC, please refer to Yealink Mini-PC Box Quick Start Guide.

  • Page 17: Zoomroomsadmin Account

    | Wireless Network Connection for CP960 | 17 ZoomRoomsAdmin Account The administrator user account is privileged, meaning you can perform any action on the system, with minimal restriction(usually requiring a password for confirmation). The default password is “zoom123” without quotes. The admin account is only used for device management, such as upgrading devices.

  • Page 18: Using Cp960 As An Audio Input And Output Device

    | Using CP960 as an Audio Input and Output Device | 18 Using CP960 as an Audio Input and Output Device After your phone is paired with mini-PC, it can be used as a default audio input and output device for the system. Procedure on the touch screen.
  • Page 19 | Using CP960 as an Audio Input and Output Device | 19 3. Tap the Microphone field and then select Echo Cancelling Speakerphone (Yealink CP960 Speakerphone) as your audio input device from the SOURCE field.
  • Page 20 | Using CP960 as an Audio Input and Output Device | 20 4. Tap the Speaker field and then select Echo Cancelling Speakerphone (Yealink CP960 Speakerphone) as your audio output device from the SOURCE field.

  • Page 21: Using Cp960 As Zoom Rooms Controller

    | Using CP960 as Zoom Rooms Controller | 21 Using CP960 as Zoom Rooms Controller After your phone is paired with the mini-PC, it can be used as a Zoom Rooms controller. • Signing Into Your Zoom Rooms Account • Signing Out of Your Zoom Account from Your Phone •...

  • Page 22: Signing Out Of Your Zoom Account From Your Phone

    | Using CP960 as Zoom Rooms Controller | 22 2. Enter the email and password. 3. Tap Sign In. The account is signed into the Zoom Room app synchronously. Signing Out of Your Zoom Account from Your Phone Procedure > Sign Out on the touch screen. 2.
  • Page 23 | Using CP960 as Zoom Rooms Controller | 23 Meet Now: Tap Meet Now to create an instant meeting. • Join: Tap Join to join a meeting by entering the meeting ID or personal link name. • • Phone: Tap Phone to place a call. •...

  • Page 24: Controlling Uvc80/Uvc50/Uvc30 Camera

    , white balance mode, people counting(only applicable to UVC30), and configuration hangup mode and camera pan direction. For more information on how to configure camera parameters on the Yealink RoomConnect plug-in, please refer to Yealink RoomConnect Userguide.

  • Page 25: Controlling Uvc80/Uvc50/Uvc30 Room Camera Position

    | Using CP960 as Zoom Rooms Controller | 25 3. Tap the Camera field and then select Yealink UVC80/UVC50/UVC30 Camera as your default camera from the SOURCE field. Controlling UVC80/UVC50/UVC30 Room Camera Position Procedure 1. During a meeting, tap Camera Control.

  • Page 26: Resetting The Preset Position For Uvc30

    | Using CP960 as Zoom Rooms Controller | 26 Procedure 1. During a meeting, tap Camera Control. 2. Tap to zoom camera out/in. 3. Tap the arrow keys to pan/tilt the camera. 4. Long tap Preset1/Preset2/Preset3 to create a new preset. 5.

  • Page 27: Enabling/Disabling Auto-Framing For Uvc30

    | Content Sharing | 27 Procedure 1. During a meeting, tap Camera Control. 2. Select Preset1/Preset2/Preset3 to set the camera to the preset position. Enabling/Disabling Auto-framing for UVC30 Auto-framing is mainly based on face detection, which provides real-time detection and position tracking on all faces in the conference room.

  • Page 28: Wireless Content Sharing

    1. Connect the WPP20 wireless presentation pod to your computer. 2. If the WPP20 is first connected to the computer, you need to manually start the Yealink Wireless Presentation Pod software from This PC in Windows 10 or from My Computer in Windows 7 and then upgrade the WPP20.

  • Page 29: Stopping Sharing Content Via Wpp20

    Using Hybrid Mode Yealink Solution for Zoom Rooms supports the hybrid mode that allows you to switch between SIP mode and Zoom Rooms mode to experience Zoom video conferences as well as SIP calls and conferences. In SIP mode, you can use basic call features, including placing/answering calls, initiating a conference, recording calls, and so on.

  • Page 30: Enabling The Hybrid Mode

    Setting the Language • Setting the Input Method • Time and Date Display • Changing the Screen Backlight Brightness and Time • Changing the Screen Saver Type and Waiting Time • Setting the Signal Port of Yealink Plugin Setting the Language...

  • Page 31: Setting The Input Method

    | Basic Settings on the Phone | 31 Procedure 1. Swipe down from the top of the screen to enter the device setting screen. 2. Tap Settings > Basic Settings > Language & Input > Language. 3. Select the desired language. 4.

  • Page 32: Changing The Screen Backlight Brightness And Time

    | Basic Settings on the Phone | 32 About this task The built-in date formats are listed as below: Date Format Example(2019-05-29) WWW MMM DD Wed May 29 DD-MMM-YY 29-May-19 YYYY-MM-DD 2019-05-29 DD/MM/YYYY 29/05/2019 MM/DD/YY 05/29/19 DD MMM YYYY 29 May 2019 WWW DD MMM Wed 29 May Procedure...

  • Page 33: Setting The Signal Port Of Yealink Plugin

    Setting the Signal Port of Yealink Plugin Before you begin Make sure that the signal port of Yealink Plugin you set on the phone is the same as the Yealink Plugin on your mini- Procedure 1. Swipe down from the top of the screen to enter the device setting screen.

  • Page 34: Registering The Cpw90

    | Using the CP Wireless Expansion Mic CPW90 | 34 Registering the CPW90 To use the CPW90 as the external audio input device, you need to register the CPW90 first. Procedure 1. Put the CPW90 on a charging cradle, the CPW90 starts up automatically. 2.

  • Page 35: Finding The Cpw90

    | Switching Between ZoomRooms Account And ZoomRoomsAdmin Account | 35 Finding the CPW90 You can find the CPW90 which has registered with the phone. Procedure 1. Swipe down from the top of the screen to enter the device setting screen. 2.

  • Page 36: Logging Into Yealink Management Cloud Service/Yealink Device Management Platform

    Related tasks ZoomRoomsAdmin Sign-in Troubleshooting This section describes solutions to common issues that may occur while using the Yealink CP960-UVC Zoom Rooms kit. Upon encountering a case not listed in this section, contact your Yealink reseller for further support. •...

  • Page 37: Upgrading System Software

    MShare). After switching the user account to ZoomRoomsAdmin, you can enable Windows Update service to update the devices. Note: You can also upgrade the devices on the Yealink RoomConnect plug-in under Windows or on the Yealink Management Cloud Service/Yealink Device Management Platform.

  • Page 38: Upgrading The Cp960

    Service • Update the firmware manually Yealink RoomConnect plug-in Note: For more information on how to update a batch of phones on the Yealink device management platform or Yealink Device Management Cloud Service, refer to Yealink device management platform Administrator...

  • Page 39: Accessing The Web User Interface

    After the update, the CP960 will reboot automatically. Firmware for Each Device The firmware of the CP960, MShare, Yealink Plugin for Zoom Rooms plug-in and the Yealink RoomConnect plug-in the CP960-UCV Zoom Rooms Kit must match each other. The following table lists the associated and latest firmware name for each device:...

  • Page 40: Checking Whether The Phone Can Access To The External Network

    92.420.0.15.rom UVC30 105.420.0.10.rom MShare 94.420.0.5.rom Yealink Plugin for Zoom Rooms 1.0.24.0 Yealink RoomConnect 2.0.14.0 Checking Whether the Phone Can Access to the External Network If it prompts that your phone is failed to pair, make sure that this tablet is connected to the internet. After you enter the pairing code on the phone, you need to check whether the phone can access the external network.

  • Page 41: General Issues

    The display does not display the shared content • Make sure you have signed in the ZoomRooms account • Make sure the Yealink UVC80/UVC50/UVC30 Camera is set as the default camera Related tasks Signing Into Your Zoom Rooms Account Setting the UVC80/UVC50/UVC30 as the Default Camera...
