LE-37G
3.5 inch Motherboard
User's Manual
Edition 1.8
2017/07/24

Advertisement

loading
Need help?

Need help?

Do you have a question about the LE-37G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commell LE-37G

Summary of Contents for Commell LE-37G

  • Page 1 LE-37G 3.5 inch Motherboard User’s Manual Edition 1.8 2017/07/24...
  • Page 2 LE-37G User’s Manual Copyright Copyright 2017, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

    LE-37G User’s Manual Packing List: Please check the package content before you starting using the board. 1 x LE-37G 3.5 inch Motherboard 1 x SATA Cable (OALSATA3-H10-L35 / 1040523) 1 x SATA Power Cable (OALSATA15-2PJ / 1040613) 1 xDC Input Power Cable...
  • Page 4 LE-37G User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Mechanical Drawing>............6 1.4 <Block Diagram>..............9 Chapter 2 <Hardware setup>............10 2.1 <Connector Location and Reference> ......10 2.1.1 <Internal connectors list> ........11 2.1.2 <External connectors list>........

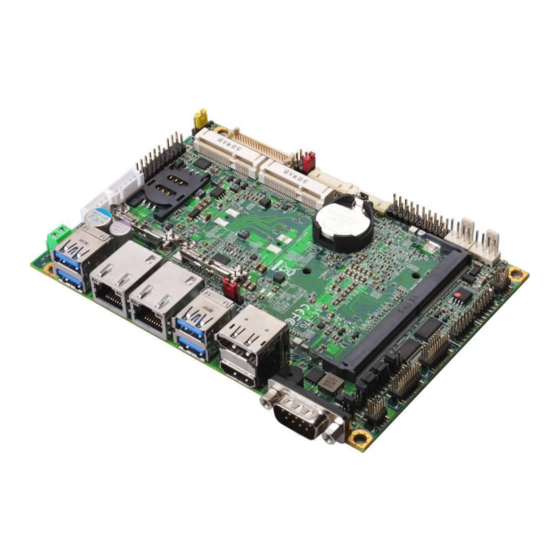

  • Page 5 LE-37G User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> LE-37G is 3.5 inch Motherboard which supports 6 Generation Intel® Core™ U-series i7, i5, i3, Celeron Mobile Processor with Sunrise Point PCH-LP, integrated HD Graphics, DDR4 memory, Realtek High Definition Audio, Intel Gigabit LAN, Serial ATA3 with AHCI function for a system.

  • Page 6: Mechanical And Environmental

    LE-37G User’s Manual 1.2 <Product Specification> System Intel® 6 Gen Core™ U-series Processor, Processor FCBGA1356 package Chipset Sunrise Point-LP 1 x DDR4 SO-DIMM 1866/2133 MHz up to 16GB Memory Support Non-ECC memory Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s...
  • Page 7 LE-37G User’s Manual 1.3 <Mechanical Drawing> Positive...
  • Page 8 LE-37G User’s Manual Back...
  • Page 9 LE-37G User’s Manual LE-37GXIT LE-37GXIP...
  • Page 10 LE-37G User’s Manual 1.4 <Block Diagram> eDP1 DDR4 PTN3460 Channel A SO-DIMM 1 x LVDS PCIe x1 I219-LM DDI2 1 x HDMI PCIe x1 Processor I210-AT PCIe x1 MiniCard1 DDI3 1 x DisplayPort PCIe x1 MiniCard2 1 x DVI-D SATA3...
  • Page 11 LE-37G User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> DC_IN CN_COM2 CN_DP CN_COM3/4 DC_OUT CN_DVI CN_COM5/6 CN_INV SO-DIMM SIMM CN_DIO JFRNT CN_LPC CN_PS2 MINI_CARD2 MINI_CARD1 CN_AUDIO CPUFAN CN_USB1 SATA3-1 CN_LVDS SYSFAN CN_USB2 SATA3-2 SMBUS DisplayPort USB1 LAN2...
  • Page 12 LE-37G User’s Manual 2.1.1 <Internal connectors list> Connector Function SO-DIMM 260-pin DDR4 SO-DIMM slot SATA3-1/2 10-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_DIO 6 x 2-pin General Purpose In/Out pin header...
  • Page 13 LE-37G User’s Manual 2.2 <Jumper Location and Reference> JCSEL1 JCSEL2 JRTC JMSATA JVLCD 2.2.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard2 mSATA Setting JCSEL1/2 CN_COM2 RS232/422/485 select JP1/2 COM1 and CN_COM2 9-pin setting 2.2.2 <Clear CMOS and Power on type selection>...
  • Page 14 LE-37G User’s Manual 2.3 <Installing the Memory> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch.
  • Page 15 LE-37G User’s Manual 2.4 <I/O interface> 2.4.1 <Serial ATA interface> Support RAID0 and 1. SATA3-1 SATA3-2 2.4.2 <Ethernet interface> The board provides I210-AT and I219-LM Gigabit Ethernet which supports WOL on rear I/O. It supports Intel® AMT 11.0 feature on I219-LM.
  • Page 16 LE-37G User’s Manual 2.4.3 <Display interface> Based on the 6 Gen CPU with built-in HD Graphics, the DisplayPort resolution up to 3840x2160 @ 60Hz or 4096x2304 @ 60Hz, the HDMI up to 4096x2304 @ 24Hz and LVDS up to 1920x1200 @ 60Hz support 18/24-bit color depth and dual channel.
  • Page 17 LE-37G User’s Manual CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low) A_LVDS_0- B_LVDS_0- A_LVDS_0+ B_LVDS_0+ A_LVDS_1- B_LVDS_1- A_LVDS_1+ B_LVDS_1+ A_LVDS_2- B_LVDS_2- A_LVDS_2+ B_LVDS_2+ A_LVDS_CLK- B_LVDS_3- A_LVDS_CLK+ B_LVDS_3+ A_LVDS_3-...
  • Page 18 LE-37G User’s Manual JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6 Other may cause damage 2.4.4 <Serial Port interface> COM1 CN_COM2 JCSEL1 CN_COM3/4 JCSEL2 CN_COM5/6 COM1: RS232 DB9 connector...
  • Page 19 LE-37G User’s Manual CN_COM2: RS232/422/485 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal DCD/ 422TX-/ 485- RXD/ 422TX+/ 485+ TXD/ 422RX+ DTR/ 422RX- Set by JP2 Note: Use JCSEL1 and JCSEL2 to select communication mode COM3/4,5/6: RS232 20-pin header (Pitch 1.27mm x 2.54mm)
  • Page 20 LE-37G User’s Manual JCSEL1, JCSEL2: For configure COM2 communication mode Function JCSEL1 JCSEL2 RS232 RS485 RS422 2.4.5 <USB interface> USB2 USB1 CN_USB2 CN_USB1 USB1 & 2 are USB3.0 interface. CN_USB1/2: Front panel USB2.0 10-pin header (Pitch 2.54mm) Signal Signal 5VSB...
  • Page 21 LE-37G User’s Manual 2.4.6 <Audio interface> CN_AUDIO CN_AUDIO: Front panel audio 10-pin header (Pitch 1.27mm x 2.54mm) Signal Signal MIC_L MIC_R FP_OUT_R MIC_DETECT SENSE FP_OUT_L FP_OUT_DETECT 2.4.7 <Expansion slot> SIMM JMSATA MINI_CARD2 MINI_CARD1 -20-...
  • Page 22 LE-37G User’s Manual MINI_CARD1 and MINI_CARD2 have special design to compatible our MiniPCIe card (ex: MPX-574D2, MPX-210D2 etc) and MINI_CARD2 supports mSATA set by JMSATA. MINI_CARD1 supports SIM card to use 3G module. JMSATA: Setting MINI_CARD2 to support PCIe/mSATA Jumper settings...
  • Page 23 LE-37G User’s Manual 2.4.9 <GPIO ,SMBUS and Other Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. The GPIO is an Open-drain output TTL-level input.
  • Page 24 LE-37G User’s Manual CN_DIO: GPIO 12-pin header (Pitch 2.00mm) Signal Signal GPIO0 GPIO4 GPIO1 GPIO5 GPIO2 GPIO6 GPIO3 GPIO7 CN_LPC: LPC 12-pin header (Pitch 2.00mm) Signal Signal -LFRAME LAD3 LAD2 LAD1 LAD0 3.3V SERIRQ 3.3VSB SMBUS: SMBus 5-pin connector Signal...
  • Page 25 LE-37G User’s Manual CN_PS/2: PS/2 10-pin header (Pitch 2.54mm) Signal Signal KB_DATA M_DATA KB_CLK M_CLK 2.5 <Power supply> 2.5.1 <Power input> DC_IN DC_IN: Terminal block 2-pin power connector Signal Signal 9~24V Power input -24-...
  • Page 26 LE-37G User’s Manual 2.5.2 <Power output> DC_OUT DC_OUT: SATA power 4-pin connector Signal -25-...
  • Page 27 LE-37G User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: LE-37G reflash tool The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the...
  • Page 28 LE-37G User’s Manual Appendix B <Win7 Installation Notes> B.1 <ME driver> (For 6th gen CPU) Before installing, it need to install Microsoft Hotfix KB2685611 first for Win7 32/64 bit. More information please refer https://www.microsoft.com/en-us/download/details.aspx?id=38423 B.2 <USB3.0 driver> (For 6th gen CPU) The Skylake platform removed EHCI host controller, so, before install new Win7 OS, need to embed the USB3.0 driver to Win7 installation image file,...
  • Page 29 LE-37G User’s Manual Appendix C <LCD Panel Type select> According your panel, it needs to select the correct resolution in the BIOS. If there is no fit your panel type, please feedback for us to make OEM model. BIOS panel type selection form (BIOS Version:1.0)
  • Page 30 LE-37G User’s Manual Appendix D <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph (Page20). GPIO -o 4E 87 ;enter configuration -o 4E 87...
  • Page 31 LE-37G User’s Manual Appendix E <Programmable Watch Dog Timer> Timeout value range 1 to 255 Minute and Second Program sample Watchdog timer setup as system reset with 5 second of timeout -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 08 ;select Logical Device...
  • Page 32 LE-37G User’s Manual Appendix F <SATA RAID function setting> When use RAID function, it need to enter the BIOS set RAID mode first. [Advanced] > [HDD Configuration] > [Interface Combination] > [RAID] At boot time, press <CTRL + I> to enter the RAID configuration menu.

  • Page 33: Contact Information

    Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -32-...
