system gain will be a little deviation with normal valuer, so the final output power will be not same with the
target DL output power.
NOTE: Make sure all the ANT ports of RUs are connected with dummy load or antenna system
before proceeding to step 5.
Step 5: Select Goto calibration flow and click
Setting.

Automatic calibration no need to select frequency band, the system will calibration all the
band automatically.

If users choose Manual calibration, then go to next page to select frequency band to
calibrate.
NOTE1: Make sure the ANT port of RU is connected with dummy load or antennas before Calibration.
Several RU can be calibrated simultaneously.
ENU STATUS : 1-0-0
USER MANUAL FOR COMFLEX-5H00 1W2W

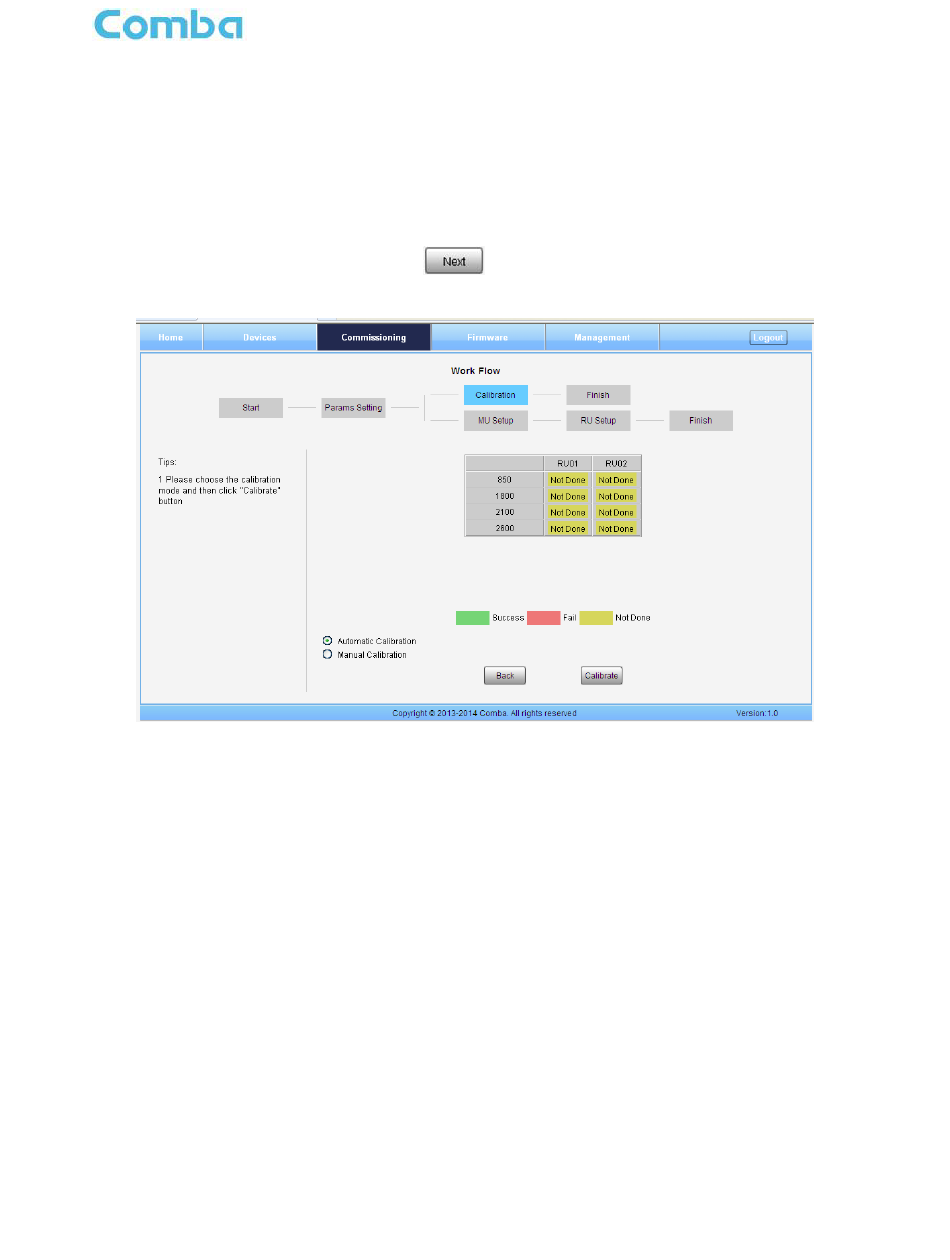

Figure 77: Calibration screen
Copyright - refer to title page
to enter to Calibratiion page after finishing Parems
