4.3

DIGITAL DISPLAY INDICATORS

4.3.1

DIGITAL DISPLAY ON RFU

The digital display tube on RFU shows the DL input power. The range of DL input power shown on the
display tube is from -19 to 33 (dBm), when DL input powe is lower than -19dBm, it will show L, when DL
input powe is higher than 33, it will display H.
-19~33
4.3.2

DIGITAL DISPLAY ON FOU

The digital display tube on optical module has two digits.
The first digit will display A, b, C and d which presents the No. of optical port. Refer to below figure for the
relationship.
The second digit will display the optical loss of each port. See the following table for the relationship of
figure and optical loss.
ENU STATUS : 1-0-0
USER MANUAL FOR COMFLEX-4500 5W

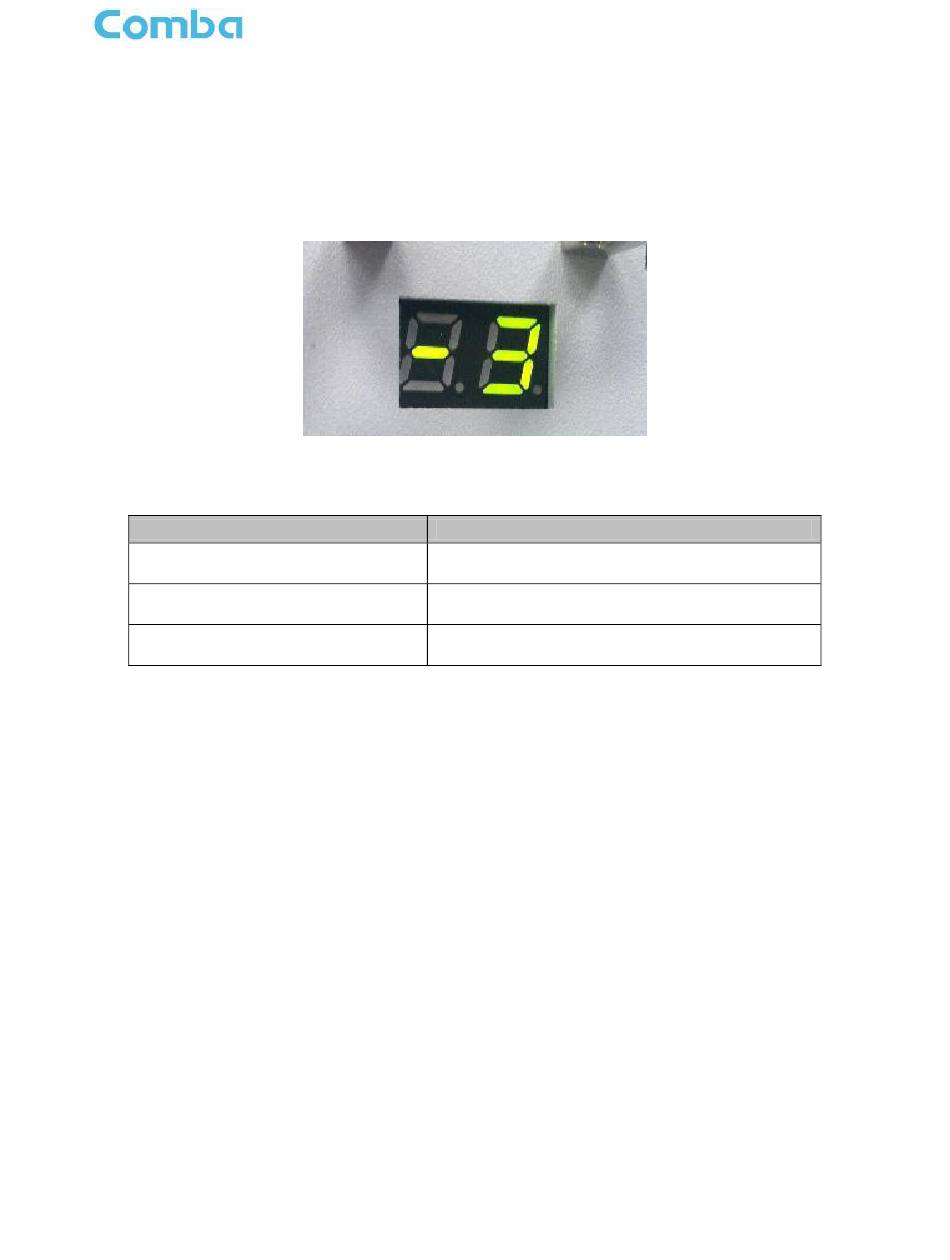

Figure 38: RFU Digital Display
Table 11: RFU Digital Display
Figure
L
H
Copyright - refer to title page
DL Input Power Level
< -19dBm
-19~33dBm
> 33dBm
