3.3.7 Remote PSU Installation
Remote PSU should be installed afer RU finish installation. It can be installed on the RU or on the wall
nearby RU.
Installed on RU
Remote PSU should be installed on the right of RU using two M6*10 hexagon socket screws.
ENU STATUS : 1-0-0
USER MANUAL FOR COMFLEX-4500 5W
M6*20 hexagon socket screw

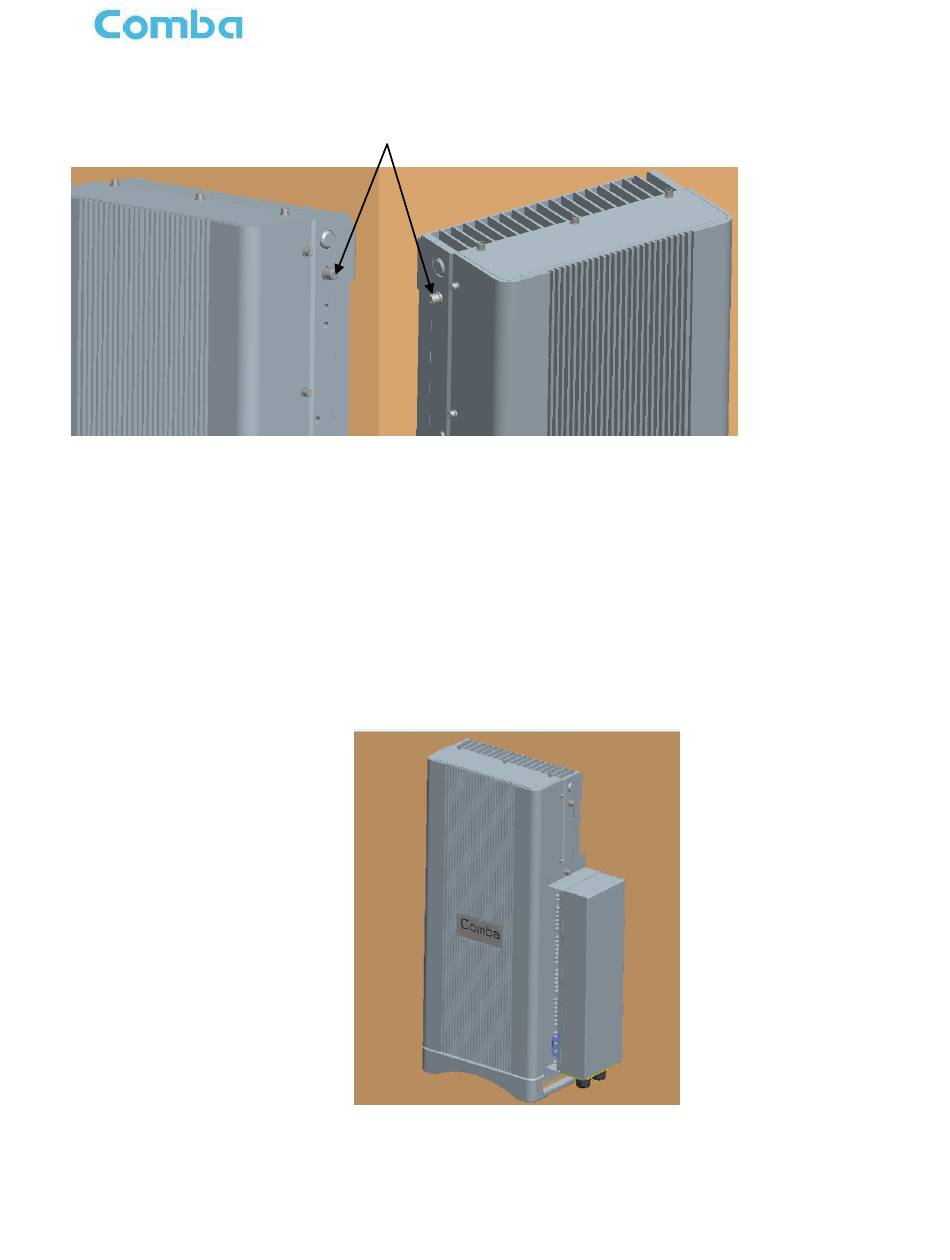

Figure 23: Finish Installation
Figure 24: Remote PSU installed on the right of RU
Copyright - refer to title page
Page 29
