USER MANUAL FOR COMFLEX-4500 5W

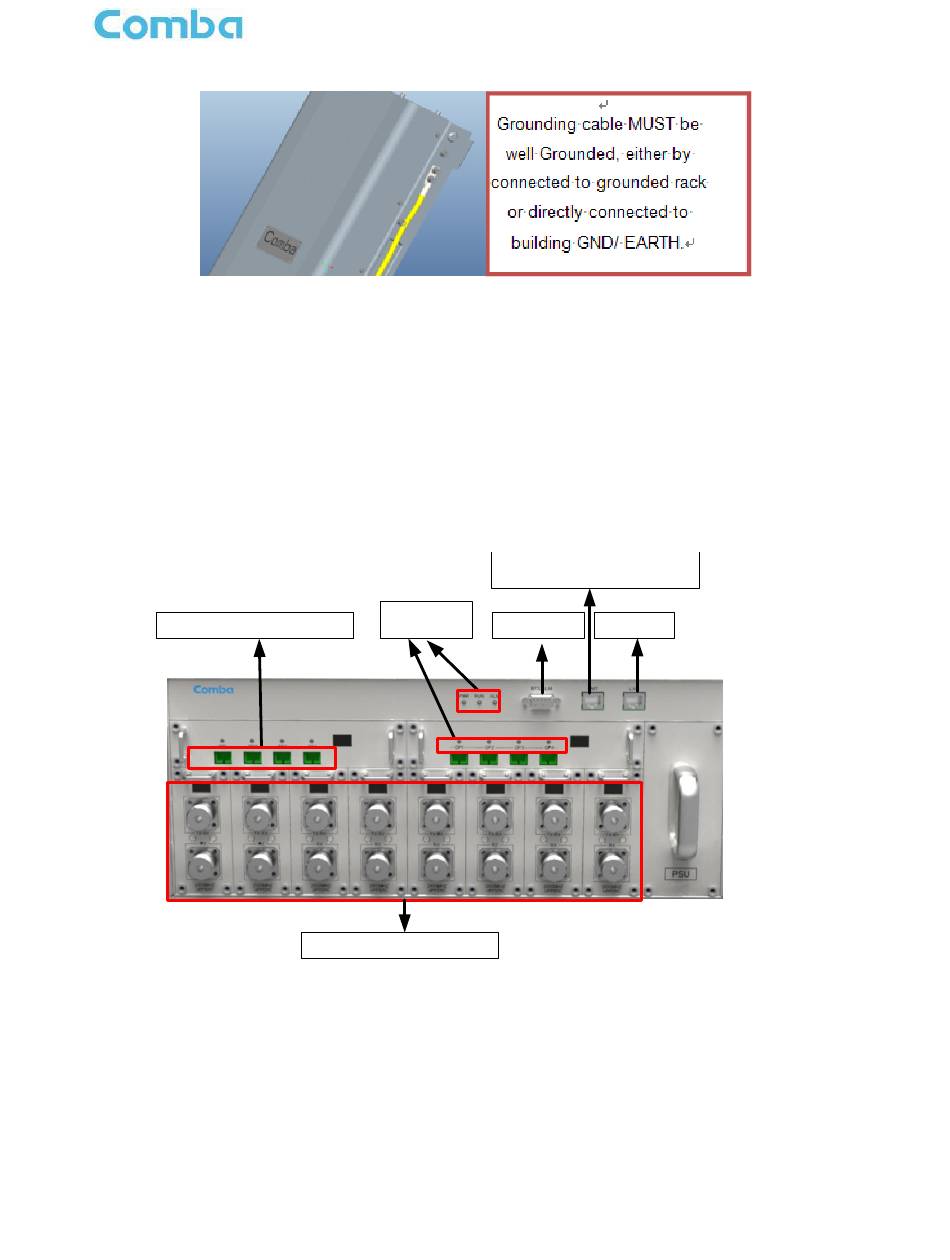

Figure 31: RU Grounding
3.5.4 MU CONNECTIONS
Step1: Connect the MU OP (optical) port to one of the RU OP port. (NOTE: requires Single Mode fiber
with SC/APC connectors; MAXIMUM OPTICAL LOSS = 6.5dBo)
Step 2: For duplex application, connect the MU RFU TX/RX port to the RF Source (BTS or BDA). For
simplex application, connect the MU RFU TX/RX port to the RF Source downlink, and then connect MU
RFU RX port with RF Source uplink. (NOTE: RF cable must be N-Male on the MU side)
Local commissioning &
Remote monitoring port
LED
BTS Alarm
Reserved
Fiber optic port
indicator
RF port, to BTS
Figure 32: Fiber Optical and RF Port Connection
Step 3: Connect the power cable to the power supply port (100-240VAC, 1Amp maximum).
ENU STATUS : 1-0-0
Copyright - refer to title page
Page 35
