Comba Telecom MRU-4500 User Manual page 38

Pin Number Definition
1 BTS_OPEN
2 BTS_COM
3 BTS_CLOSE
4 ~ 9
3.5.8 CONNECT TO PC
The local commissioning and management for MU and RU is achieved through connecting to the WEB
base GUI.
Connect MU to PC
Connect MU "OMT" port (RJ45) to the RJ45 port of PC with supplied Ethernet cable to achieve local
monitoring and management.
ENU STATUS : 1-0-0
USER MANUAL FOR COMFLEX-4500 5W
1
BTS_OPEN
2
BTS_ COM
3
BTS_CLOSE
4
5

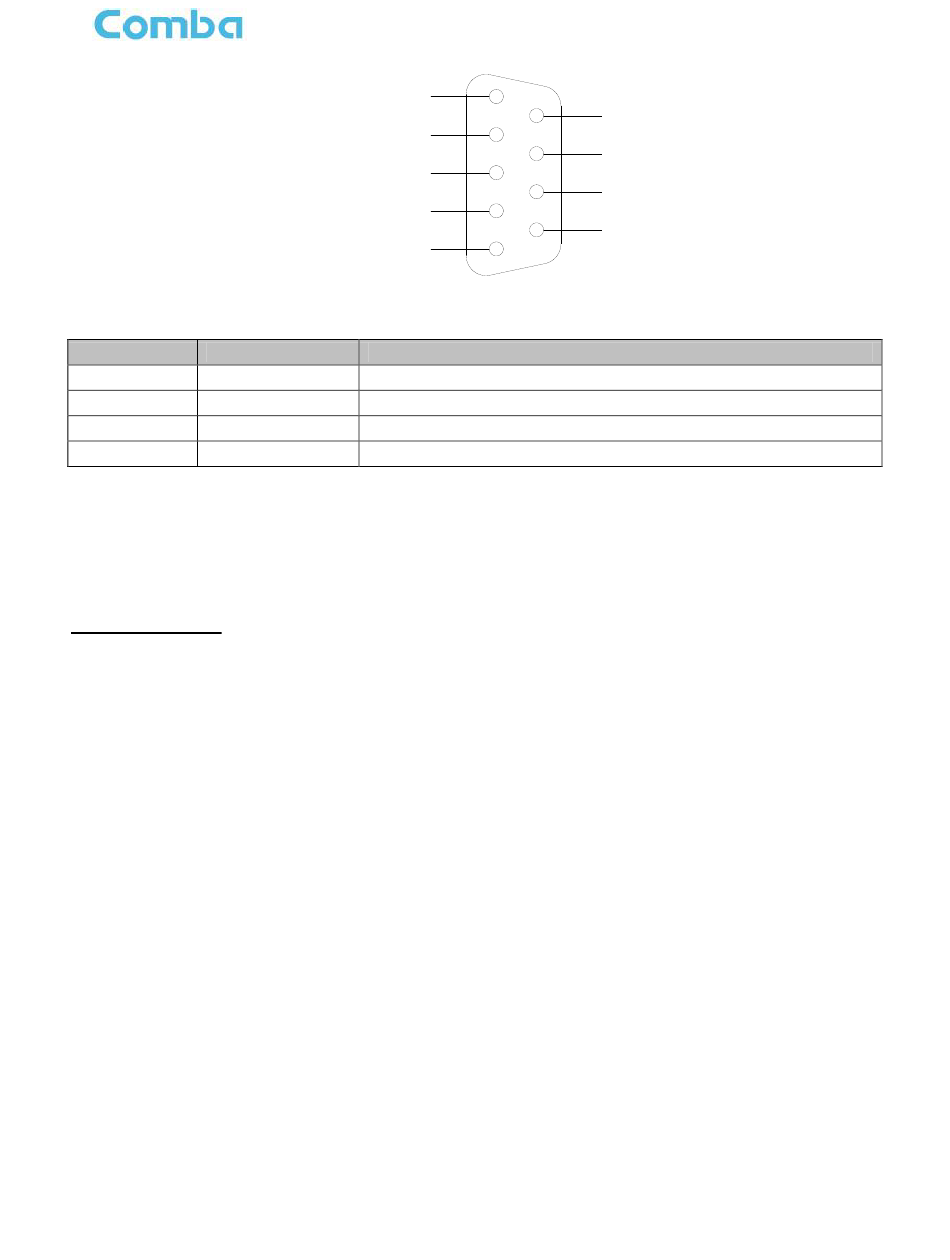

Figure 37: Pins Allocation for "BTS_ALM" Port
Table 8: Pin Definition of "BTS_ALM" Port
Connects to the open terminal of the voltage free relay.
Connects to the common terminal of the voltage free relay.
Connects to the close terminal of the voltage free relay.
NC Reserved.
End of Section
Copyright - refer to title page
6
7
8
9
Description
Page 38
