With the power switch OFF, bring the saw blade down
to the workpiece to see the cutting path of the blade.
•
Squeeze trigger switch to start saw.
•
Lower blade into workpiece with a rm downward
motion.
WARNING: To avoid serious personal injury, keep
hands outside the no hands zone, at least 3 in. from
the blade. Never perform any cutting operation
freehand (without holding workpiece against the
fence). The blade could grab the workpiece if it slips
or twists.
Finishing a cut:
•
Hold the saw head in the down position.
•
Release trigger switch and wait for all moving parts to
stop before moving your hands and raising the saw
head.
•
Unplug the miter saw.
Before freeing jammed material:
•
Release trigger switch.
•
Wait for all moving parts to stop.
•
Unplug the miter saw.

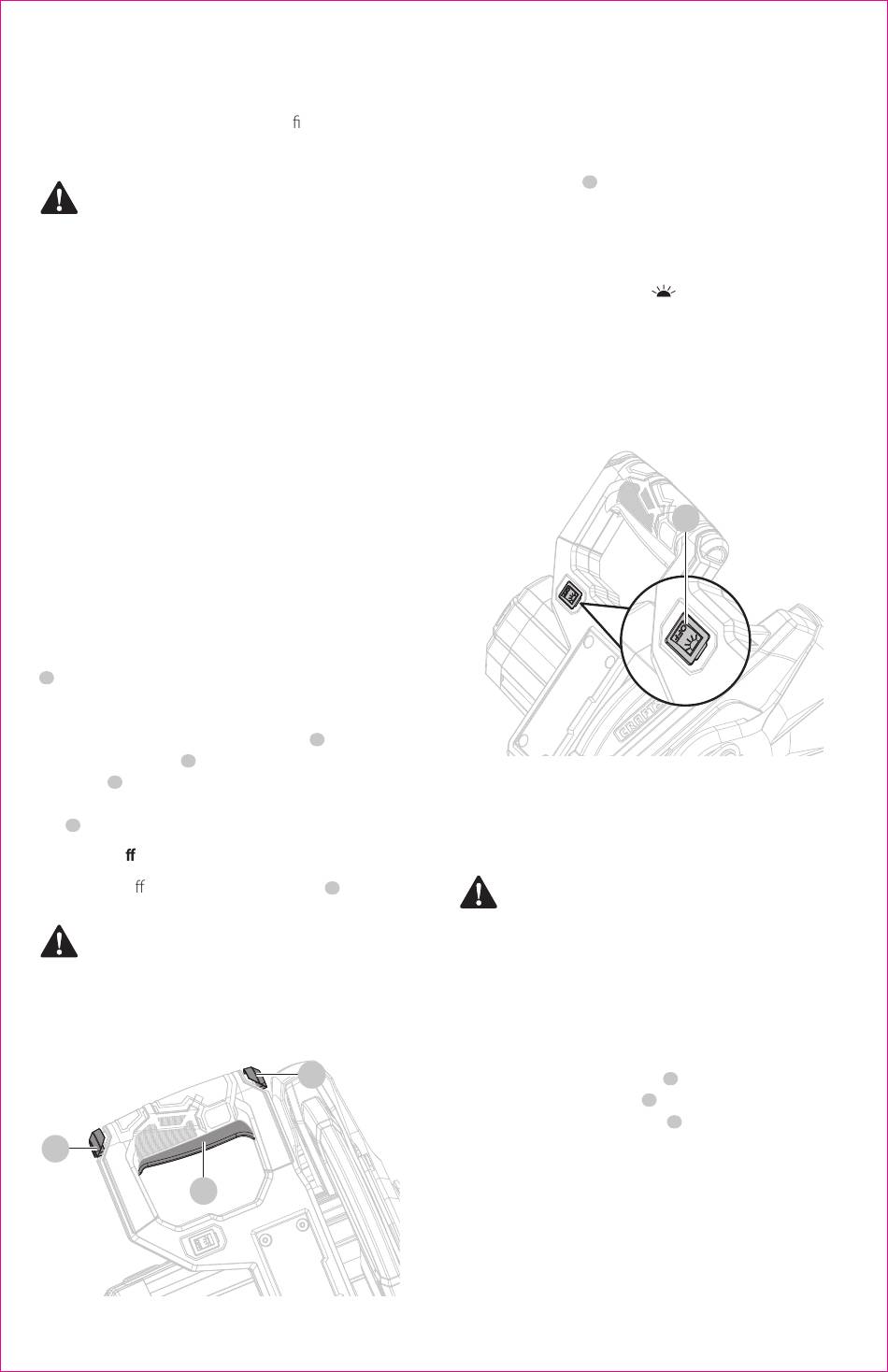

ON/OFF switch (Fig. 19)
This miter saw is equipped with an ON/OFF trigger switch
.
1
Turning saw on
•
Press either the left safety lock button or the right
safety lock button down to unlock the ON/OFF
3
switch .
1
•
To turn the miter saw on, depress the ON/OFF switch
located in the switch handle.
1
Turning saw o
•
To turn it o , release the ON/OFF switch .
WARNING: To avoid injury, after completing a cut
and releasing the trigger switch, allow the blade to
stop before raising the saw head.
To avoid injury, check and tighten the arbor bolt
periodically.
Fig. 19
2
1
16
Use of precision blade guide systems
ON/OFF switch (Fig. 20)
NOTICE: The miter saw must be connected to a power source.
•
•
•
•
Fig. 20
2
Extending and removing sliding fence
(Fig. 21)
1
Extending
3
•
•
•
The precision blade guide systems is equipped with an
ON/OFF switch . The precision blade guide system is
1
independent of the miter saw's trigger switch.
The precision blade guide systems casts the shadow of
the blade onto the workpiece. This results in greater
accuracy of cuts and requires no adjustments.
To use this feature, press "
turn on.
Lower the saw head so the blade is approximately 1/4
in. from the workpiece. The shadow of the blade will be
projected onto the workpiece, indicating where the
blade teeth will make contact as the cut is made.
WARNING: The sliding fence must be extended or
removed when making any bevel cut. Failure to
extend or remove the sliding fence will not allow
enough space for the blade to pass through which
could result in serious injury. At extreme miter or bevel
angles the saw blade may also contact the sliding
fence.
Loosen the fence lock knob counter-clockwise.
Extend the sliding fence by sliding it out.
2
Tighten the fence lock knob clockwise to lock the
sliding fence.
" on the ON/OFF switch to
1
1
1
