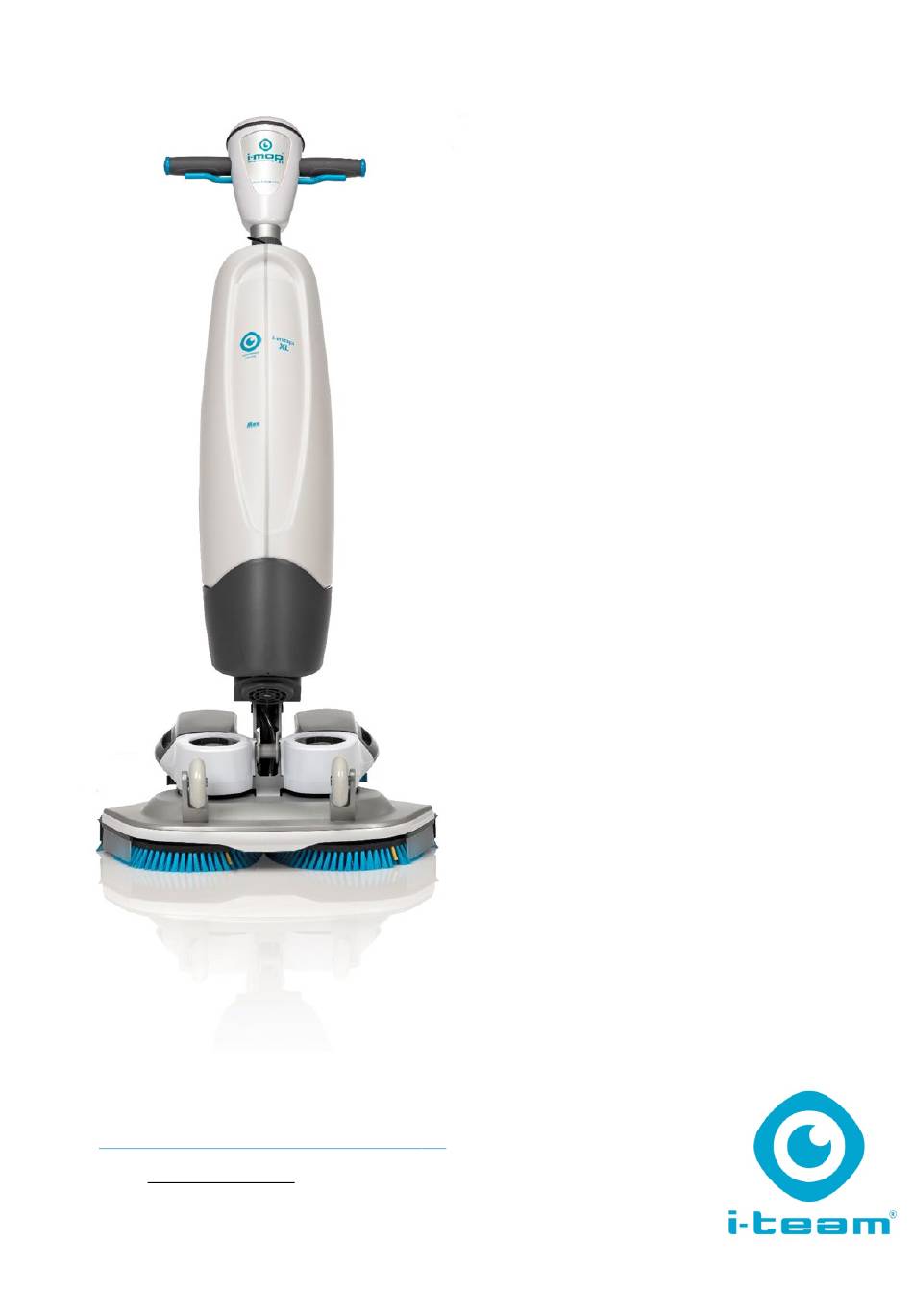

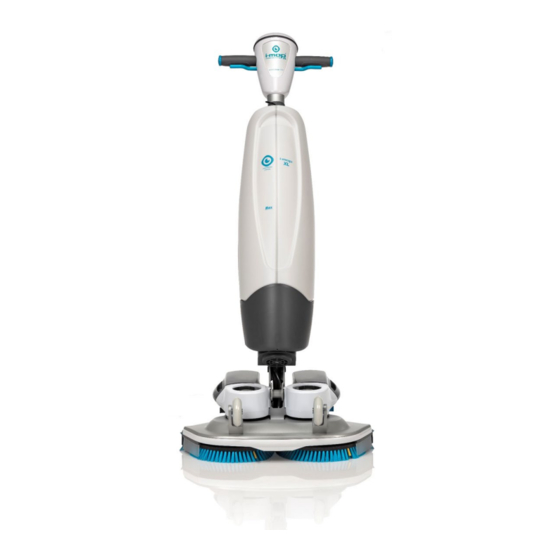

- Page 1 XL Plus Auto scrubber for hard floor surfaces User manual i-team Professional b.v. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i-teamglobal.com Internet: www.i-teamglobal.com...
- Page 2 Original user manual, written in the English Language Future Cleaning Technologies B.V. Hoppenkuil 27b, 5626 DD Eindhoven, The Netherlands Telephone: +31402662400 Email: hello@i-teamglobal.com Internet: www.i-teamglobal.com Model: i-mop XL Plus Date: 28/04/2020 Product code: K.1.IMOPXLP.FCT.7 Version: 2.0...
-
Page 3: Preface
The purpose of the user manual is to provide the user with information in such a way that during the life of the i-mop XL Plus the machine is used correctly, efficiently and safely, even in the event of reasonably foreseeable misuse, as described in section 1.2 of this manual. -
Page 4: Reading Guide
Reading guide The following symbols and terms are used throughout this manual to alert the reader to safety issues and important information: Symbol Term Explanation WARNING Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries of the operator or bystanders and light or moderate damage to the product or the environment. -
Page 5: Table Of Contents
Content Preface ..................................3 Purpose of the user manual ............................ 3 Target audience ..............................3 Operators of the i-mop XL Plus ..........................3 Reading guide ................................4 Introduction ..............................7 Intended use of the product ........................7 Non-intended use of the product ......................8 Lifespan .............................. - Page 6 5.2.2 Attach the brushes .......................... 18 5.2.3 Attach the squeegee ........................19 5.2.4 Install recovery tank ........................19 5.2.5 Install cleaning solution tank ......................20 Operation ..............................21 Before you start ........................... 21 6.1.1 Insert the batteries .......................... 21 6.1.2 Fill the cleaning solution tank ......................
-
Page 7: Introduction
You will be pleasantly surprised by the fast and effective use of the battery operated i-mop XL Plus. The batteries used in the i-mop XL Plus are the same as a variety of battery powered i-team products. The batteries must be fully charged before use. -
Page 8: Non-Intended Use Of The Product
• trained adults only. 1.3 Lifespan Each i-mop XL Plus is guaranteed to operate for at least 2000 hours. The wear on brushes and squeegee heavily depends on the roughness of the surface. They need to be checked regularly. CAUTION To ensure proper and safe operation throughout the life of the i-mop XL Plus, the machine must be checked every 500 hours by an authorized i-team partner. -
Page 9: Specifications
1.5 Specifications Figure 2 Product size: 120 x 48 x 46 cm Product size in park position: 120 x 48 x 36 cm Weight (including batteries): 22.5 kg Li-on battery: DC (25.2V, 14Ah, 353Wh) Battery capacity: 2 batteries Operation time of batteries: 90 min Brush pressure: 31.5 gr / cm... -
Page 10: Warranty
1.6 Warranty The i-mop® XL Plus should be used as intended and described in this manual. Using the i-mop XL Plus outside will void the warranty on the product. 1.7 Identification The ID tag, containing a serial number and production number, can be found on the bar behind the wastewater tank. -
Page 11: Description
The body that contains the motor, cleaning solution tank, recovery tanks, handle with triggers and control panel. The scrub deck that contains the brushes and squeegee. • The i-mop XL Plus can be folded into a park position; this is recommended for storage. The i-mop XL Plus consists of: Figure 4 Legend... -
Page 12: Safety
3 Safety Safety comes first. Therefore, please take your time to read and understand these safety instructions. Improper use can cause harm or void the manufacturer’s warranty. 3.1 General safety instructions 3.1.1 Sweep before scrub Remove objects from the floor that can be propelled by the rotating brushes. 3.1.2 Brush condition Make sure to check the condition of the brush before use. -
Page 13: Risks During Operation
When unsure: mark the job site to warn passersby. 3.2.3 Careful when parking Do not park the i-mop XL Plus on ramps or slopes. Always park the i-mop XL Plus on a level, hard surface. 3.3 Risks after operation 3.3.1 Remove battery packs... -
Page 14: Transport And Storage
4 Transport and storage 4.1 General CAUTION Always keep the body of the i-mop® XL Plus in an upright position when filling the cleaning solution tank or inserting the batteries. Before storage or transport, drain the machine and remove the batteries after each use. 4.2 Park position The park position is the upright vertical position for storage and maintenance tasks. -
Page 15: Transport Outside
Figure 6 When outside: 1. Put the i-mop® XL Plus in park position (refer to section 4.2). 2. Carry the i-mop XL Plus with one hand while holding the handle (Figure 6, pos 1) with your other hand. CAUTION The transport wheels are not designed to roll over dirty surfaces, sand can cause the... -
Page 16: Transport In A Vehicle
Please contact our sales department for more information. As the i-mop XL Plus is a compact machine, it fits in the trunk of your car. Before loading the i-mop XL Plus into your vehicle, make sure both tanks and battery packs are removed. -
Page 17: Assembly And Installation
The i-mop® XL Plus does not require much assembly. Most importantly, you will have to attach the brushes and squeegee. 5.1 Unboxing The i-mop XL Plus body is packed in a single box. The battery and charger are delivered in a separate box and can be ordered separately. Figure 8... -
Page 18: Assembly
5.2 Assembly 5.2.1 Charge the batteries Charge the batteries according to the instructions in the battery charger manual. Make sure the battery packs are charged monthly. 5.2.2 Attach the brushes Figure 9 To attach the brushes: 1. Put the i-mop® XL Plus in park position (refer to section 4.2). 2. -
Page 19: Attach The Squeegee
5.2.3 Attach the squeegee Figure 10 To attach the squeegee: 1. Take the vacuum hose (Figure 10, pos 1). 2. Insert the hose connector (Figure 10, pos 2) in the squeegee (Figure 10, pos 3). 3. Twist the hose connector 1/4 turn for a firm fit (Figure 10, pos 2). 4. -
Page 20: Install Cleaning Solution Tank
5.2.5 Install cleaning solution tank 1. Put the tank (Figure 12, pos 1) on the i-mop® XL Plus with the valve first. 2. Press the tank downward on the nipple to break the valve seal. 3. Push the tank into place until you hear a "click". -
Page 21: Operation
3. Replace stopper and make sure it seals tight. 4. Put the i-mop® XL Plus in park position (refer to section 4.2). 5. Put the tank on the i-mop XL Plus with the valve first (Figure 14, pos 1). 6. Press the tank downward to break the valve seal. -
Page 22: Operation Procedure
2. Hold the handle with one hand (Figure 15, pos 1). 3. Walk slowly and pay extra attention if you pull the i-mop XL Plus over obstacles. 4. To lift the i-mop XL Plus over obstacles, always use two hands. -
Page 23: At The Job Site
6.2.2 At the job site 1. Crouch down while holding the scrub deck firmly with one hand (Figure 16, pos 2). 2. Push the handle forward with your other hand (Figure 16, pos 1). 3. Bring the scrub deck slowly down to the floor. - Page 24 10. Steer by gently turning the handle left or right to move the scrub deck (Figure 17, pos 10). TIP: Learn to swivel Operating the i-mop XL Plus is very intuitive and like steering a bicycle. The i-mop XL Plus is designed to move forward. To turn, stop walking and use your inside hand (the hand in the direction you want to go to) to turn the handle.
-
Page 25: Eco Mode
WARNING Do not operate the i-mop XL Plus at greater than arm’s length. Operating below a 45- degree angle can cause water to run into the vacuum engine. Figure 18 6.2.3 ECO mode The ECO mode will use 40% less cleaning solution. -
Page 26: Water Level Warning Indicator
Figure 20 6.2.5 Turn off the i-mop® XL Plus 1. Use the i-mop XL Plus main switch (Figure 21, pos 1) and choose MODE 3 Brush + Dry vacuum (Figure 21, pos 2). 2. Operate it about 15-20 feet farther to vacuum remaining cleaning solution up. -
Page 27: Cleaning And Storage
6.3.3 Removing battery packs 1. Put the i-mop XL Plus in park position (refer to section 4.2). 2. Hold the i-mop XL Plus by the scrub deck to stabilize. 3. While pressing both plastic pins inwards (Figure 23, pos 1), pull each battery pack away (Figure 23, pos 2). -
Page 28: Check The Brushes And Squeegee
2. Put the i-mop XL Plus in park position (refer to section 4.2). 3. Store the i-mop XL Plus close to a wall (Figure 24, pos 1) with the handle pointing towards the wall and the brushes facing away from the wall. -
Page 29: Maintenance
5. Turn the right brush clockwise until you feel resistance or see the motor disk turning as well. 6. Pull the brush off the motor disk toward you. 7. Visually inspect the motor disks. 8. Clean the i-mop XL Plus scrub deck with a clean, dry cloth before you install the brushes. -
Page 30: Squeegee Replacement
7.2 Squeegee replacement The squeegee blades come in pairs and wear out over time. When you notice the floor is no longer being dried properly, replace the squeegee blades. 7.2.1 Detach the squeegee 1. Put the i-mop® XL Plus in park (refer to section 4.2). -
Page 31: Attach The Squeegee
4. Detach the vacuum hose by twisting the connector 1/4 turn anticlockwise. 5. Now you can carefully pull the vacuum hose from the top of the machine. 6. Guide the new vacuum hose via the opening to the hose connector located at the i-mop XL Plus handle. -
Page 32: Recommended Service Time
5000 clicks. 7.6 Accessories The i-mop XL Plus can be equipped with different brushes and polishing pads. The use of these accessories is only allowed by experienced and trained operators as some polishing pads can be abrasive and can cause damage to the floor surface when applied incorrectly. For more information... -
Page 33: Troubleshooting
8 Troubleshooting Problem Cause Solution No power No batteries Insert batteries Empty batteries Charge batteries Batteries incorrectly placed Remove and reinstall batteries Insufficient/no water Wrong program Check the operating mode on flow the control panel Eco mode on Check the ECO mode light on the control panel Empty tank Fill the tank... -
Page 34: Decommissioning And Disposal
It is the responsibility of the i-mop® XL Plus owner to dispose of the product responsibly. After decommissioning, the i-mop XL Plus still contains valuable resources and needs to be disposed of according to your local laws and regulations regarding recycling of electrical equipment. -
Page 35: Attachments
10 Attachments 10.1 CE Certificate...
