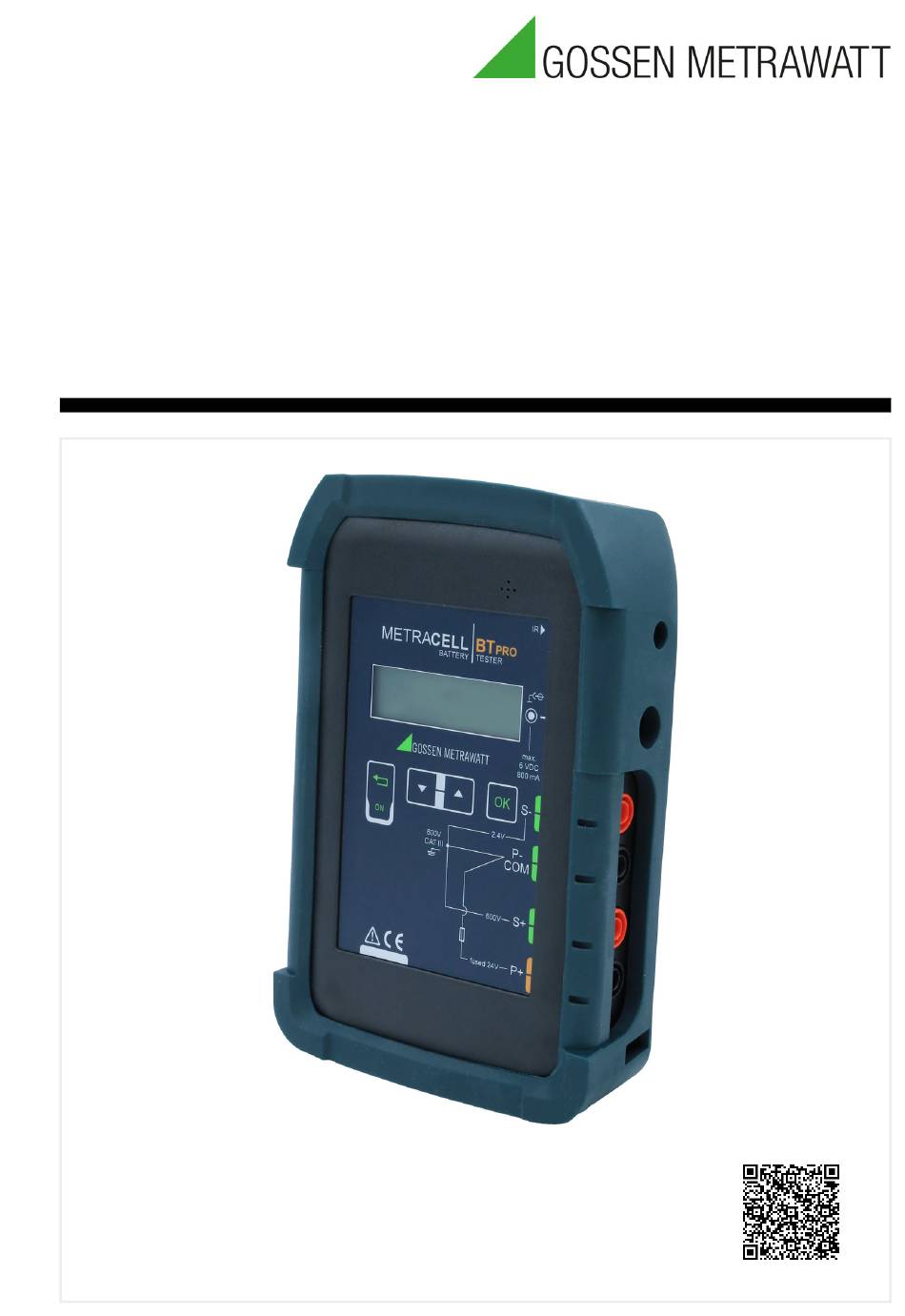

- Page 1 Condensed Operating Instructions METRACELL BT PRO Portable Battery Tester 3-447-073-03 2/4.20 Read the full operating instructions which are available in PDF format at www.gossenmetrawatt.com. The condensed operating instructions do not replace the full operating instructions! Download Center...
-
Page 3: Table Of Contents
METRACELL BT PRO GMC-I Messtechnik GmbH Table of Contents 1 Safety Instructions ......................1 2 Applications ........................3 2.1 Intended Use / Use for Intended Purpose..............3 2.2 Use for Other than Intended Purpose ..............3 2.3 Liability and Guarantee.................... 3 2.4 Opening the Instrument / Repairs................ -
Page 4: Safety Instructions
METRACELL BT PRO GMC-I Messtechnik GmbH Safety Instructions Observe this documentation, in particular all included safety information, in order to protect yourself and others from injury, and to prevent damage to the instrument. • Carefully and completely read and adhere to these condensed operating instructions, as well as the instrument’s operating instructions. - Page 5 METRACELL BT PRO GMC-I Messtechnik GmbH • Only use the instrument as well as the accessories within the specified measuring cate- gory. • The measurement cables and all external cabling must not exceed an overall length of 1 meter. •...
-
Page 6: Applications
Periodic testing and well-organized maintenance are necessary in order to assure the avail- ability of stationary battery systems. The METRACELL BT PRO is a multifunctional instrument for testing batteries and battery blocks* (referred to below as “devices under test” or “DUTs”). It can be used to determine the current status of a DUT, and to pinpoint concealed defects. -
Page 7: The Instrument
Values recorded and stored with a DMA 35 portable density meter from Anton Paar GmbH can be transferred to the battery tester. Referred to the operating instructions for information on how to use the density meter with the METRACELL BT PRO (available at http:// www.gossenmetrawatt.com). Please contact Anton Paar GmbH for any further information... -
Page 8: Instrument Overview
METRACELL BT PRO GMC-I Messtechnik GmbH Instrument Overview Front Holster (removable) Infrared interface RFID reader Recharging socket (charging cable Display connection) Measuring input S− Function keys Measuring input P−/COM Measuring input S+ Measuring input P+ Carrying strap eyelets Back Retaining magnet... - Page 9 METRACELL BT PRO GMC-I Messtechnik GmbH Measuring Inputs All measuring inputs refer to ground and reference potential, P/COM input. The measuring inputs are not electrically isolated from each other. The measuring ranges depend on the respective measuring inputs. Measur- Description ing Input S−...
-
Page 10: Relevant Standards
METRACELL BT PRO GMC-I Messtechnik GmbH Function Keys Function Function “ ” key – Switch on and off – Press briefly: Return to next higher menu level or cancel measurement – Press and hold: End measurement or reactivate ▼ Scroll down key “... -
Page 11: Technical Data
METRACELL BT PRO GMC-I Messtechnik GmbH Technical Data Rechargeable NiMH batteries, 4 ea. 1.2 V type AA Power Supply (recommended: Ansmann maxE 2500 mAh) Measuring input S+: 1.6 M Input Impedance Measuring input S–: > 10 M Operating temperature: +5 ... +40 °C Storage temperature: -20 ... -
Page 12: Characteristic Values
METRACELL BT PRO GMC-I Messtechnik GmbH Characteristic Values Multimeter / Multimeter / Measuring Multimeter / Float / Resistance Tempera- Interval U / Multimeter Function Connector Discharging / ture Interval U+I Charging Measured °C Quantity −2450.00 … 00.00 … Display −24.5000 …... -
Page 13: Initial Startup
METRACELL BT PRO GMC-I Messtechnik GmbH Initial Startup These condensed operating instructions only explain initial startup of the instrument and basic operating procedures. Please refer to the full operating instructions for a complete description of all functions and settings (available at http://www.gossenmetrawatt.com). -
Page 14: Attach The Carrying Strap (Optional)
METRACELL BT PRO GMC-I Messtechnik GmbH Operating time is approximately 10 hours when the batteries are fully charged. A warning is generated when battery voltage drops to below 4.8 V. The battery tester can be operated for approximately one more hour after this warning is generated. -
Page 15: Getting Started
METRACELL BT PRO GMC-I Messtechnik GmbH Note! The battery tester can also be switched off by pressing the Function key. The key must be pressed and held for approximately 10 seconds to this end. However, it’s preferable to switch the instrument off using the switch off function. - Page 16 METRACELL BT PRO GMC-I Messtechnik GmbH The following additional functions provide support when performing measurements and evaluating measurement data: Additional Func- Description tion RFID Battery identification through the use of transponders (RFID tags) ® Bluetooth – PC Transfer of measured values via Bluetooth...
-
Page 17: Product Support
METRACELL BT PRO GMC-I Messtechnik GmbH Product Support If required please contact: GMC-I Messtechnik GmbH Product Support Hotline Phone: +49-911-8602-0 Fax: +49-911-8602-709 E-mail: support@gossenmetrawatt.com Repair and Replacement Parts Service / Calibration Center and Rental Instrument Service If required please contact:... -
Page 18: Ce Declaration
METRACELL BT PRO GMC-I Messtechnik GmbH CE Declaration The battery tester fulfills all requirements of applicable EU directives and national regulations. We confirm this with the CE mark. A factory calibration certificate or test report is included with the battery tester. -
Page 19: Return And Disposal
METRACELL BT PRO GMC-I Messtechnik GmbH Return and Disposal This instrument is subject to directive 2012/19/EC on Waste Electrical and Electronic Equip- ment (WEEE) and its German national equivalent implemented as the Waste Electrical and Electronic Equipment Act (ElektroG) on the marketing, return and environmentally sound dis- posal of electrical and electronic equipment. - Page 20 METRACELL BT PRO GMC-I Messtechnik GmbH © GMC-I Messtechnik GmbH Edited in Germany • Subject to change without notice / errors excepted • A PDF version is available on the Internet All trademarks, registered trademarks, logos, product designations and company names are the property of their respective owners.
